LD50 diaphragm
2 year ago
DMF-Z-50S DMF-T-50S DMF-ZM-50S Diaphragm Old Version
Product introduction
This is LD50 diaphragm repair kit for SBFEC type 2 inch pulse valve DMF-Z-50S, MF-Z-50S, DMF-Y-50S, MF-Y-50S, DMF-T-50S, MF-T-50S. Different materials of the diaphragm determine different performances. It is a NBR diaphragm with Nylon seat. One set contains 2 diaphragms (LD50, DTY) and 2 springs, packaged in plastic bag. We have more models of SBFEC type pulse valve diaphragm repair kits to choose from, including LD50, LD62, LD76. And we also produce solenoid coils, solenoid armature and pulse jet valves.
NBR Material Diaphragm
The material of LD50 diaphragm is NBR, which has good thermal aging resistance and can withstand operating temperatures from -20 to 80℃.

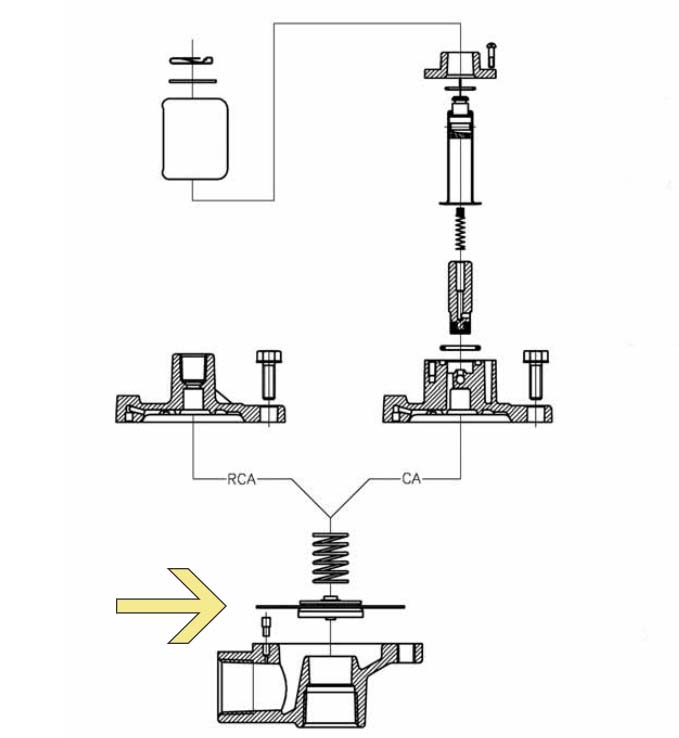

The Role Of The Diaphragm In Valves
The diaphragm is highly flexible and force to control the opening and closing of the valve. It primarily controls, obstruct or isolate the flow of fluids and acts as a flow control device.
Pay Attention:
◆ Please check whether the product is intact before use
◆ Please confirm that the installation conditions are in accordance with the specifications
◆ Please use in a stable environment
◆ Pay attention to clean up dust and other things that affect operation
Order Code.
|
Diaphragm For New Version SBFEC Pulse Valve |
|||
|
Diaphragm Model |
Port Size |
Pulse Valve Model |
Diaphragm Material |
|

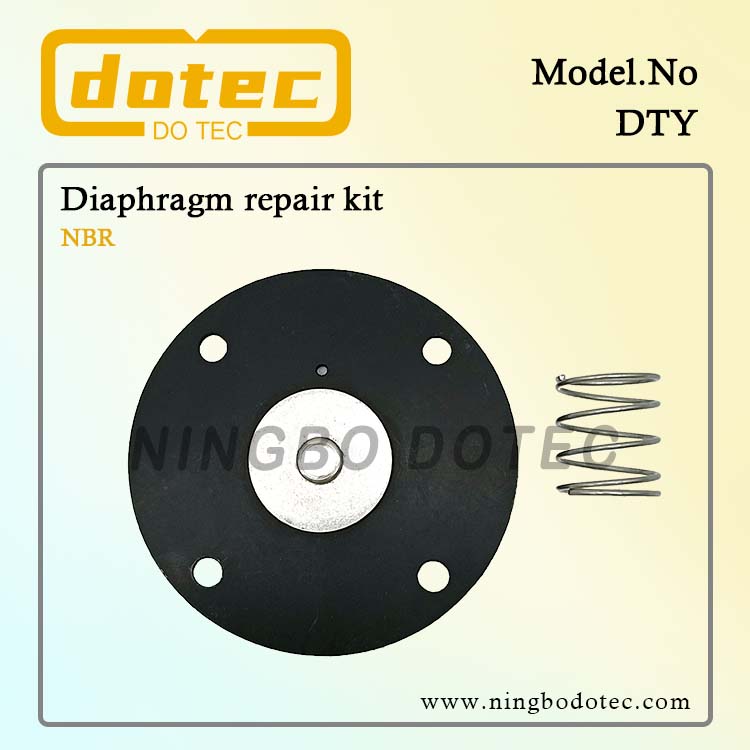

DTY |
Secondary diaphragm |
All Double Diaphragms Pulse Valve |
NBR, FKM |
|
D20 |
3/4 '' |
DMF-Z-20, MF-Z-20, DMF-ZM-20, MF-ZM-20 |
|
|
DZL-B |
3/4 '' |
DMF-ZL-B, MF-ZL-B |
|
|

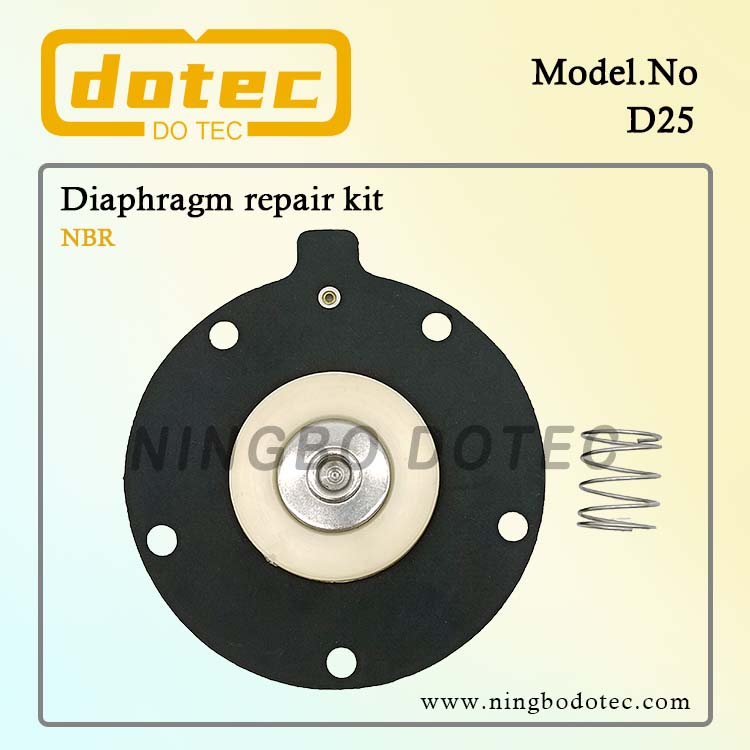

D25 |
3/4 ''& 1 '' |
DMF-Z-25, MF-Z-25, DMF-ZM-25, MF-ZM-25, DMF-Y-25, MF-Y-25, DMF-ZF-25, MF-ZF-25, DMF-T-20, MF-T-20 |
|
|
D40 |
1 ''& 1-1/2 '' |
DMF-Z-40S, MF-Z-40S, DMF-ZM-40S, MF-ZM-40S, DMF-Y-40S, MF-Y-40S, DMF-ZF-40S, MF-ZF-40S, DMF-T-40S, MF-T-40S |
|
|
D50 |
2 '' |
DMF-Z-50S, MF-Z-50S, DMF-Y-50S, MF-Y-50S, DMF-T-50S, MF-T-50S |
|
|
D62 |
2-1/2 '' |
DMF-Z-62S, MF-Z-62S, DMF-Y-62S, MF-Y-62S |
|
|
D76 |
3 '' |
DMF-Z-76S, MF-Z-76S, DMF-Y-76S, MF-Y-76S, DMF-T-76S, MF-T-76S |
|
|
D76A |
3 '' |
DMF-YA-76S, MF-YA-76S |
|
|
D76B |
3 '' |
DMF-YB-76S, MF-YB-76S |
|
|
D102 |
4 '' |
DMF-Z-102S, MF-Z-102S, DMF-Y-102S, MF-Y-102S |
|
|
D102A |
4 '' |
DMF-Y-102SA, MF-Y-102SA |
|
|
D102E |
4 '' |
DMF-Y-102SE, MF-Y-102SE |
|
|
Diaphragm For Old Version SBFEC Pulse Valve |
|||
|
LD50 |
2 '' |
DMF-Z-50S, MF-Z-50S, DMF-Y-50S, MF-Y-50S, DMF-T-50S, MF-T-50S |
NBR, FKM |
|
LD62 |
2-1/2 '' |
DMF-Z-62S, MF-Z-62S, DMF-Y-62S, MF-Y-62S |
|
|
LD76 |
3 '' |
DMF-Z-76S, MF-Z-76S, DMF-Y-76S, MF-Y-76S |
|

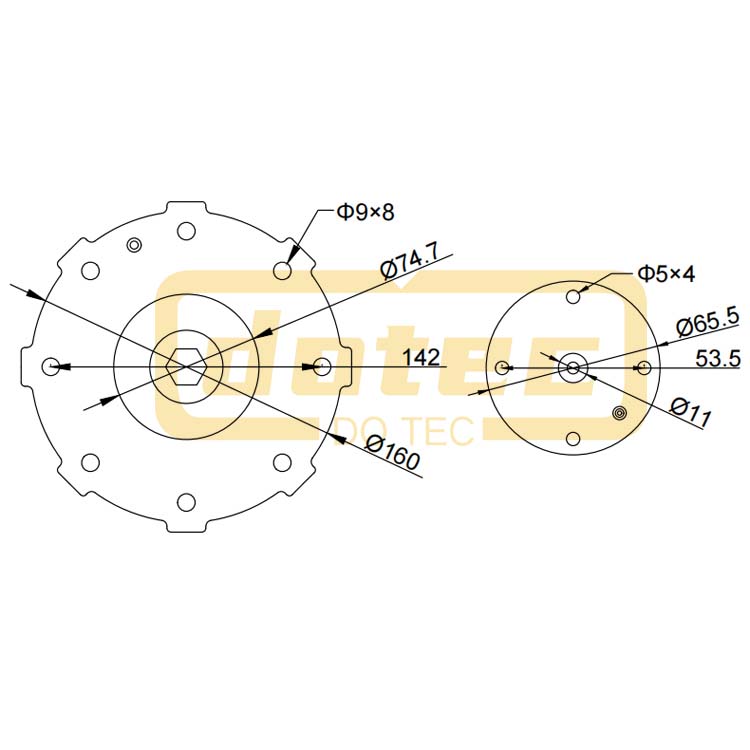

LD50 Dimension
About Us
Ningbo DOTEC Automation Co., Ltd. works on manufacturing solenoid valve and is committed to providing customers with high quality products and services. We focus on customer needs to provide you with the best service, fast response, let us make fluid control applications more widely, more intelligent.
◆ Focus on customer needs
◆ Create the perfect fit
