MD03-40M NBR Pulse Valve Diaphragm Kit For 1.5'' TH-5440-M TH-4440-M
Product introduction
The MD03-40M diaphragm repair kit is suitable for Taeha type pulse valve TH-5440-M, TH-4440-M. The diaphragm is an integral part of the pulse valve. The colors of its diaphragms are green and red. Different valves match different diaphragms. It is a NBR diaphragm with Nylon seat. One set contains 2 diaphragms and 2 springs, packaged in plastic bag. We produce pulse valve solenoid coil, pulse valve solenoid armature and pulse jet valves. And we also have other Taeha type pulse valve diaphragm to choose from, MD03-30M, MD03-40M, MD03-50M, MD03-75M, MD03-90M, etc.
MD03-40M Dimension
|
Diaphragm Model |
Pulse Valve Model |
Port Size |
Diaphragm Material |
Diaphragm Color |
|
MD01-20 MD02-20 |
TH-5820-B, TH-4820-B, TH-5825-B, TH-5820-C, TH-4820-C |
3/4 '' |
NBR |
Green & Red |
|
MD01-25 MD02-25 |
TH-4825-B, TH-5825-C, TH-4825-C, TH-5840-F, TH-4840-F |
1 '' |
||
|
MD01-25M |
TH-5825-M |
1 '' |
||
|
MD01-30 MD02-30 MD03-30 |
TH-5830-B, TH-5430-B, TH-4830-B, TH-4430-B |
1-1/4 '' |
||
|
MD03-30M |
TH-5430-M, TH-4430-M |
1-1/4 '' |
||
|
MD01-40 MD02-40 MD03-40 |
TH-5840-B, TH-5440-B, TH-4840-B, TH-4440-B, TH-5840-C, TH-5440-C, TH-4840-C, TH-4440-C, TH-5850-F, TH-5450-F, TH-4850-F, TH-4450-F |
1-1/2 '' |
||
|
MD03-40M |
TH-5440-M, TH-4440-M |
1-1/2 '' |
||
|
MD03-50 |
TH-5450-B, TH-4450-B |
2 '' |
||
|

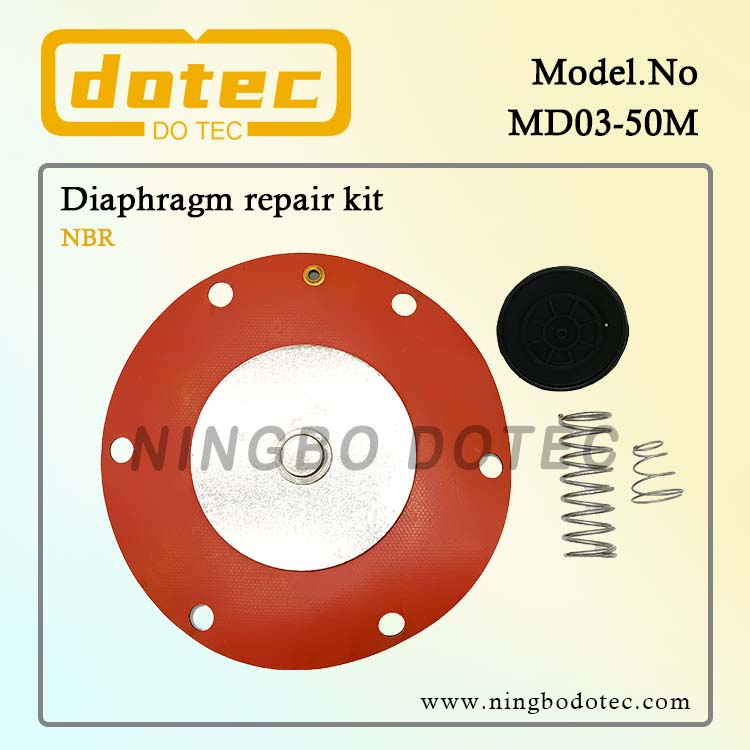

MD03-50M |
TH-5450-M, TH-4450-M |
2 '' |
||
|
MD03-60 MD04-60 |
TH-5460-B, TH-4460-B, TH-5460-S, TH-4460-S |
2-1/2 '' |
||
|
MD03-75 |
TH-5475-B, TH-4475-B |
3 '' |
||
|
MD03-75M |
TH-5475-M, TH-4475-M |
3 '' |
||
|
MD03-90M |
TH-5490-M, TH-4490-M |
3-1/2 '' |
||
|
MD03-00M |
TH-5400-M, TH-4400-M |
4 '' |
NBR Material Diaphragm
The material of MD03-40M diaphragm is NBR, which has good thermal aging resistance and can withstand operating temperatures from -10 to 80℃.
The Role Of The Diaphragm In Valves
The diaphragm is highly flexible and force to control the opening and closing of the valve. It primarily controls, obstruct or isolate the flow of fluids and acts as a flow control device.
Pay Attention:
◆ Please check whether the product is intact before use
◆ Please confirm that the installation conditions are in accordance with the specifications
◆ Please use in a stable environment
◆ Pay attention to clean up dust and other things that affect operation
