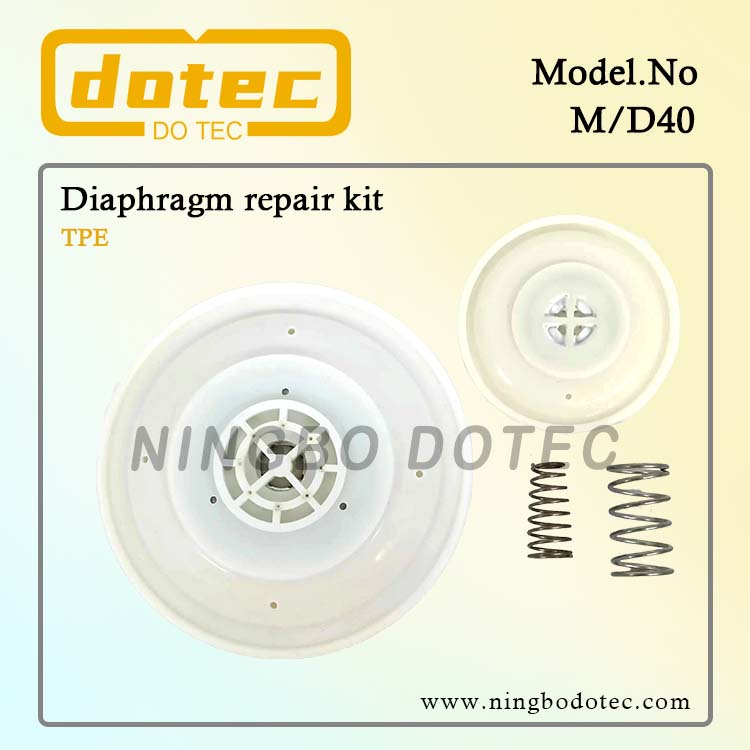

AUTEL Type M/D40 1.5'' TPE Diaphragm Repair Kits For AE1440B AE1440R
Product introduction
The M/D40 AUTEL type pulse valve diaphragm is suitable for 1-1/2'' pulse valve AE1440B, AE2440B, AE1440R, AE2440R. The diaphragm is an integral part of the pulse valve. The diaphragm is characterized by high temperature resistance and a long service life even under harsh conditions. It is a TPE diaphragm with white color. One set contains 2 diaphragms and 2 springs, packaged in plastic bag. Different valves match different diaphragms. We produce solenoid coils, solenoid armature and dust collector pulse jet valves. And we also have other Autel type pulse valve diaphragm to choose from, M/D20, M/D25, M/D40, M/D50, M/D60, M/D75.

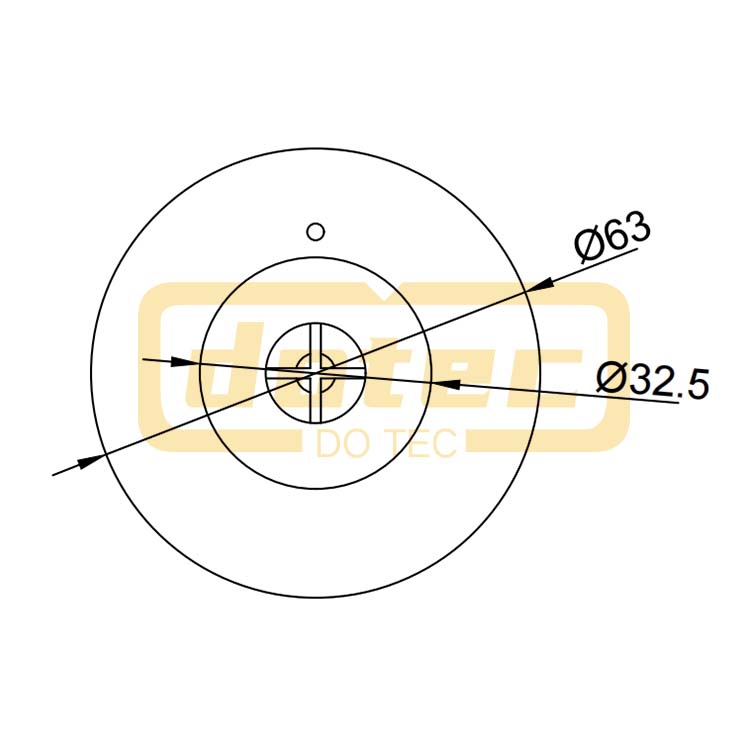

M/D40 Dimension
|
Diaphragm Model |
Port Size |
Pulse Valve Model |
Diaphragm Material |
|
M / D20 |
3/4 '', 1 '' |
AE1818B, AE2818B, AE1822B, AE2822B |
TPE |
|
M / D25 |
1 '' |
AE1825B, AE2825B, AE1825R, AE2825R |
|
|
M / D40 |
1 1/2 '' |
AE1440B, AE2440B, AE1440R, AE2440R |
|
|
M / D50 M / D60 |
2 '', 2 1/2 '' |
AE1450B, AE2450B, AE1460B, AE2460B |
|
|
M / D75 |
3 '' |
AE1475I12, AE2475I12 |
|
|
M / D40SHT |
1 1/2 '' |
AE1440B, AE2440B, AE1440R, AE2440R |
VITON + PTFE |
TPE Material Diaphragm
The material of M/D40 diaphragm is TPE, which has good thermal aging resistance and can withstand operating temperatures from -40 to 100℃.

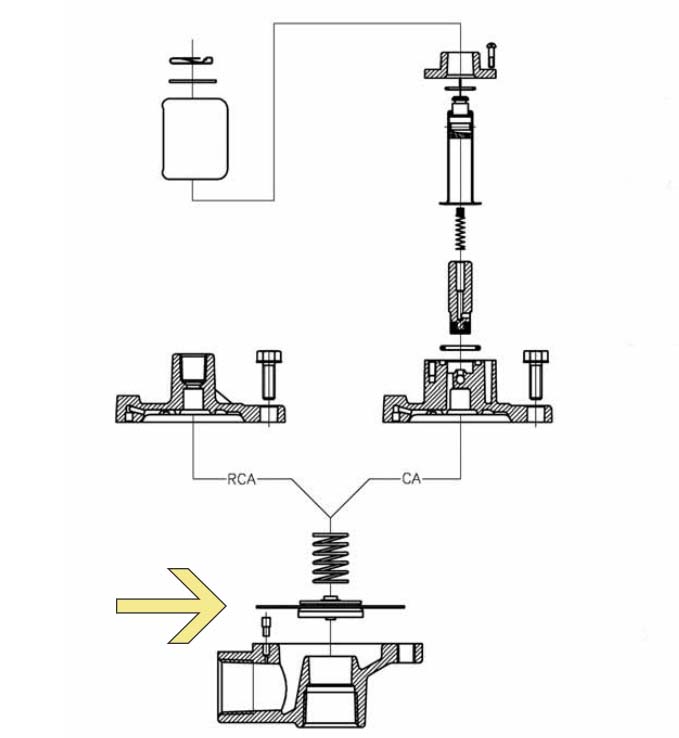

The Role Of The Diaphragm In Valves
The diaphragm is highly flexible and force to control the opening and closing of the valve. It primarily controls, obstruct or isolate the flow of fluids and acts as a flow control device.
Pay Attention:
◆ Please check whether the product is intact before use
◆ Please confirm that the installation conditions are in accordance with the specifications
◆ Please use in a stable environment
◆ Pay attention to clean up dust and other things that affect operation

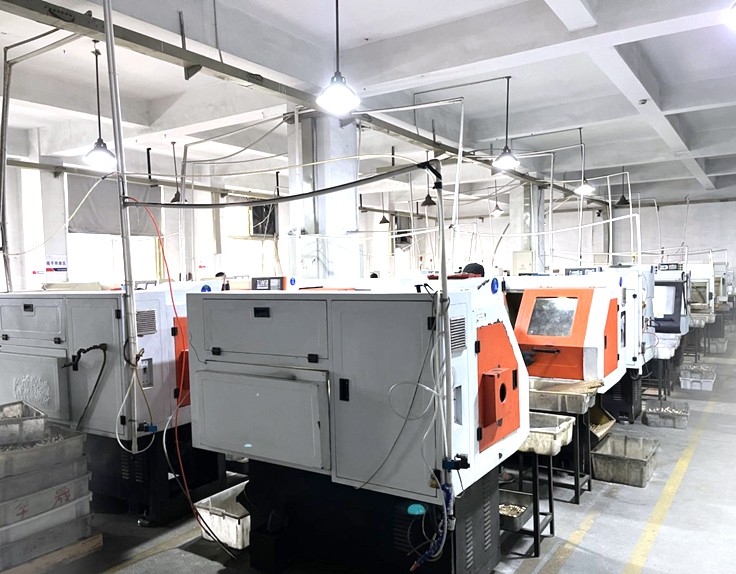

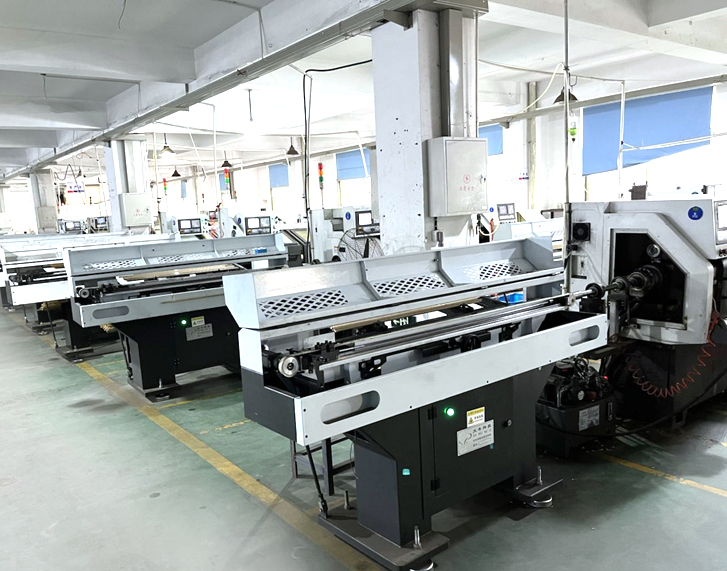

About Us
Ningbo DOTEC Automation Co., Ltd. works on manufacturing solenoid valve and is committed to providing customers with high quality products and services. We focus on customer needs to provide you with the best service, fast response, let us make fluid control applications more widely, more intelligent.
◆ Focus on customer needs
◆ Create the perfect fit
