2'' M/D50 2.5'' M/D60 TPE Diaphragm For Autel Type AE1450B AE1460B Valve
Product introduction

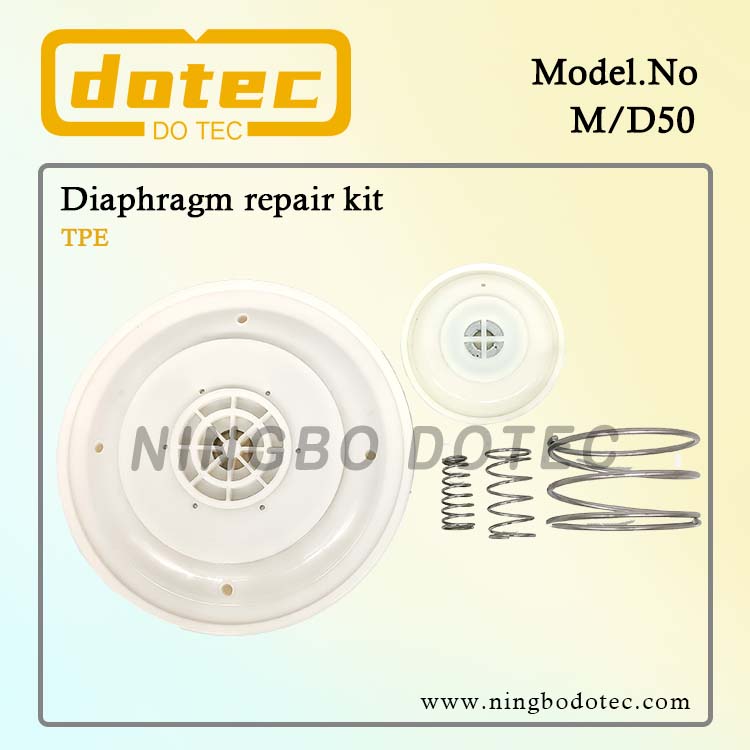

The M/D50 diaphragm repair kit is suitable for Autel type pulse valve AE1450B, AE2450B AE1460B, AE2460B. The diaphragm is an integral part of the pulse valve. It is a TPE diaphragm with white color. One set contains 2 diaphragms and 3 springs, packaged in plastic bag. The diaphragm is characterized by high temperature resistance and a long service life even under harsh conditions. Different valves match different diaphragms. We produce solenoid coils, solenoid armature and pulse jet valves. And we also have other Autel type pulse valve diaphragm to choose from, M/D20, M/D25, M/D40, M/D50, M/D60, M/D75.
TPE Material Diaphragm
The material of M/D50 diaphragm is TPE, which has good thermal aging resistance and can withstand operating temperatures from -40 to 100℃.
The Role Of The Diaphragm In Valves

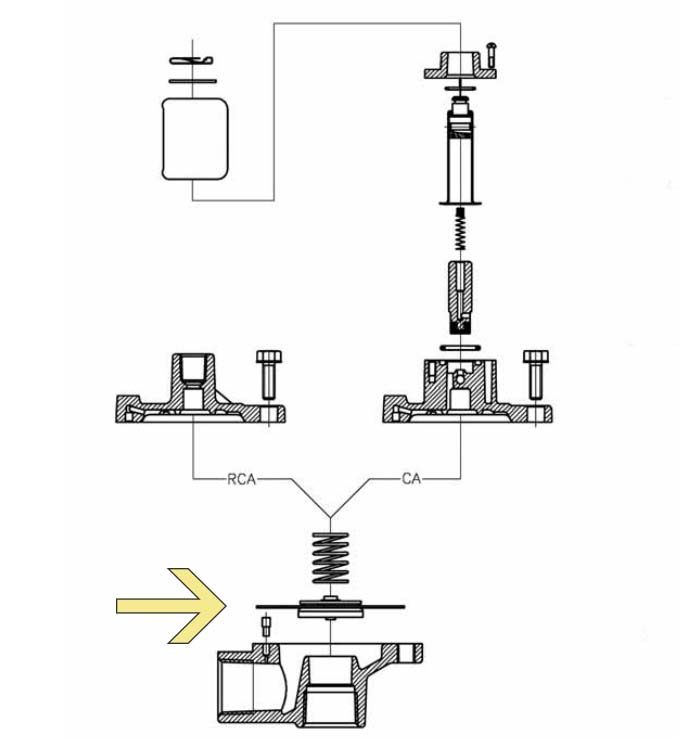

The diaphragm is highly flexible and force to control the opening and closing of the valve. It primarily controls, obstruct or isolate the flow of fluids and acts as a flow control device.
Pay Attention:
◆ Please check whether the product is intact before use
◆ Please confirm that the installation conditions are in accordance with the specifications
◆ Please use in a stable environment
◆ Pay attention to clean up dust and other things that affect operation
Order Code.
|
Diaphragm Model |
Port Size |
Pulse Valve Model |
Diaphragm Material |
|
M / D20 |
3/4 '', 1 '' |
AE1818B, AE2818B, AE1822B, AE2822B |
TPE |
|
M / D25 |
1 '' |
AE1825B, AE2825B, AE1825R, AE2825R |
|
|

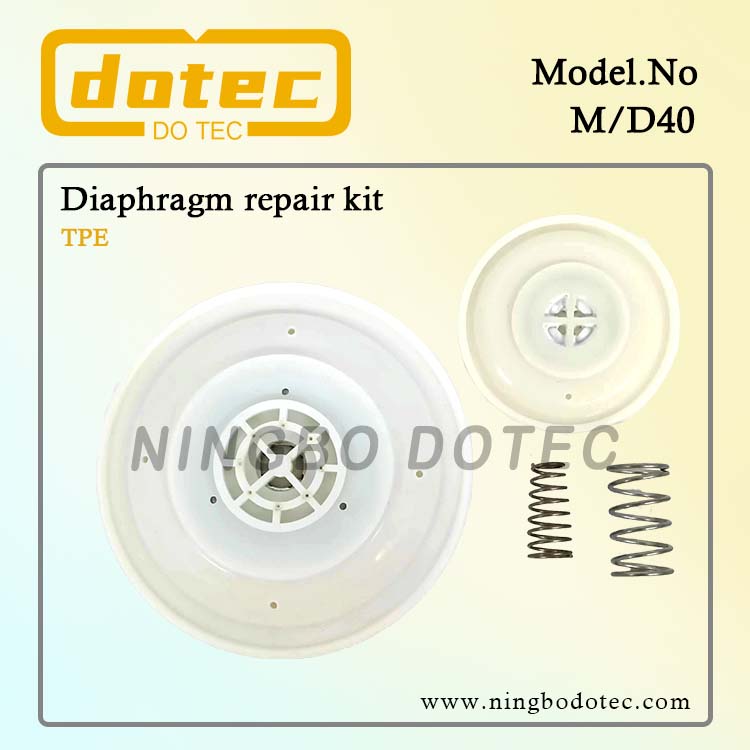

M / D40 |
1 1/2 '' |
AE1440B, AE2440B, AE1440R, AE2440R |
|
|
M / D50 M / D60 |
2 '', 2 1/2 '' |
AE1450B, AE2450B, AE1460B, AE2460B |
|
|
M / D75 |
3 '' |
AE1475I12, AE2475I12 |
|
|
M / D40SHT |
1 1/2 '' |
AE1440B, AE2440B, AE1440R, AE2440R |
VITON + PTFE |

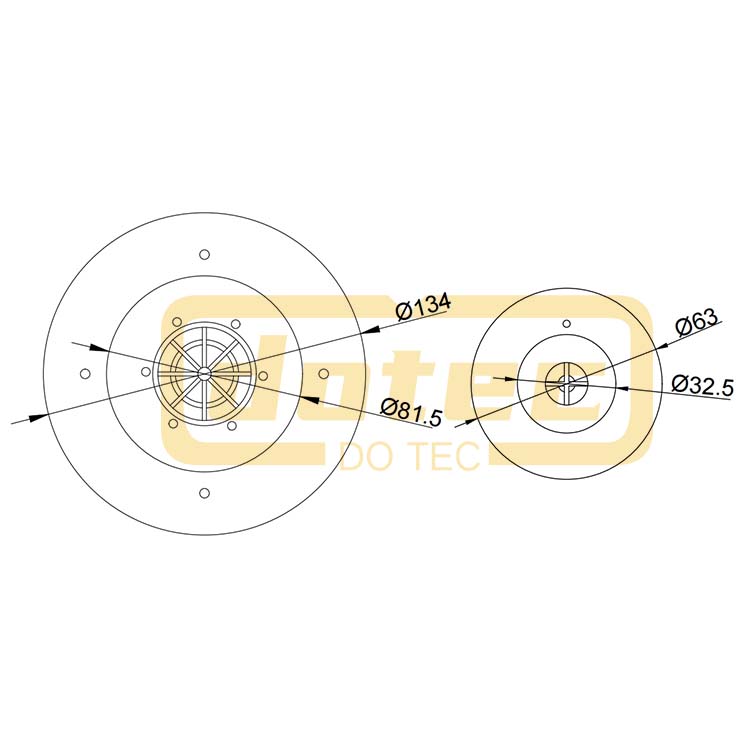

M/D50 Dimension
About Us

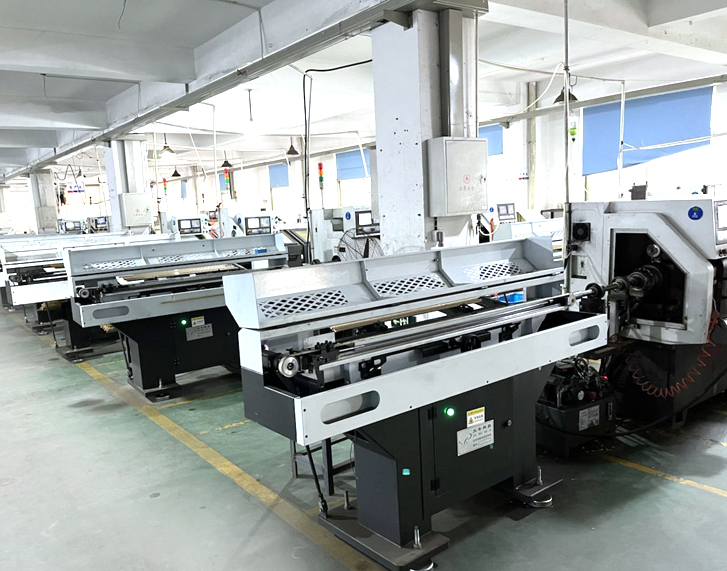

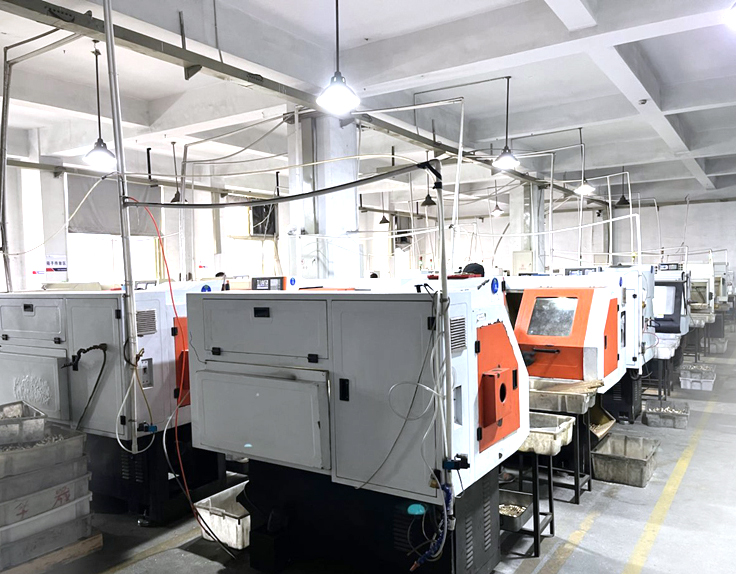

Ningbo DOTEC Automation Co., Ltd. works on manufacturing solenoid valve and is committed to providing customers with high quality products and services. We focus on customer needs to provide you with the best service, fast response, let us make fluid control applications more widely, more intelligent.
◆ Focus on customer needs
◆ Create the perfect fit
