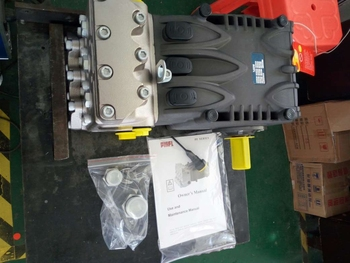

BOTUO GF Series Stainless Steel Triplex Plunger Pump high pressure Diesel Water Pump For Washer High Pressure Water Pump1

2 year ago

13 0 

7 year

Product details

Product Description

♦♦Drain / Sewer Cleaning - Many things can clog a sewer line and often water is the best resource to clean the line.Tree roots, minerals, dirt, grease, and sludge get clogged and must be removed in order to maintain proper sewer operation. Botuolini offers pumps with low pressure for smaller lines and higher pressures for industrial applications.
♦♦Water blast - Pumps used for water blasting typically require high pressure and high flow rates. Botuolini has pumps that fit the need. These pumps can be used for removing rock and hard soil and excavating land.
♦♦Food Manufacturing - Botuolini offers a wide variety of pumps for the food industry. Pumps are used daily in the food industry for cleaning and also performing specific functions, such as cleaning vegetables, deboning chicken and cleaning hogs and cattle.

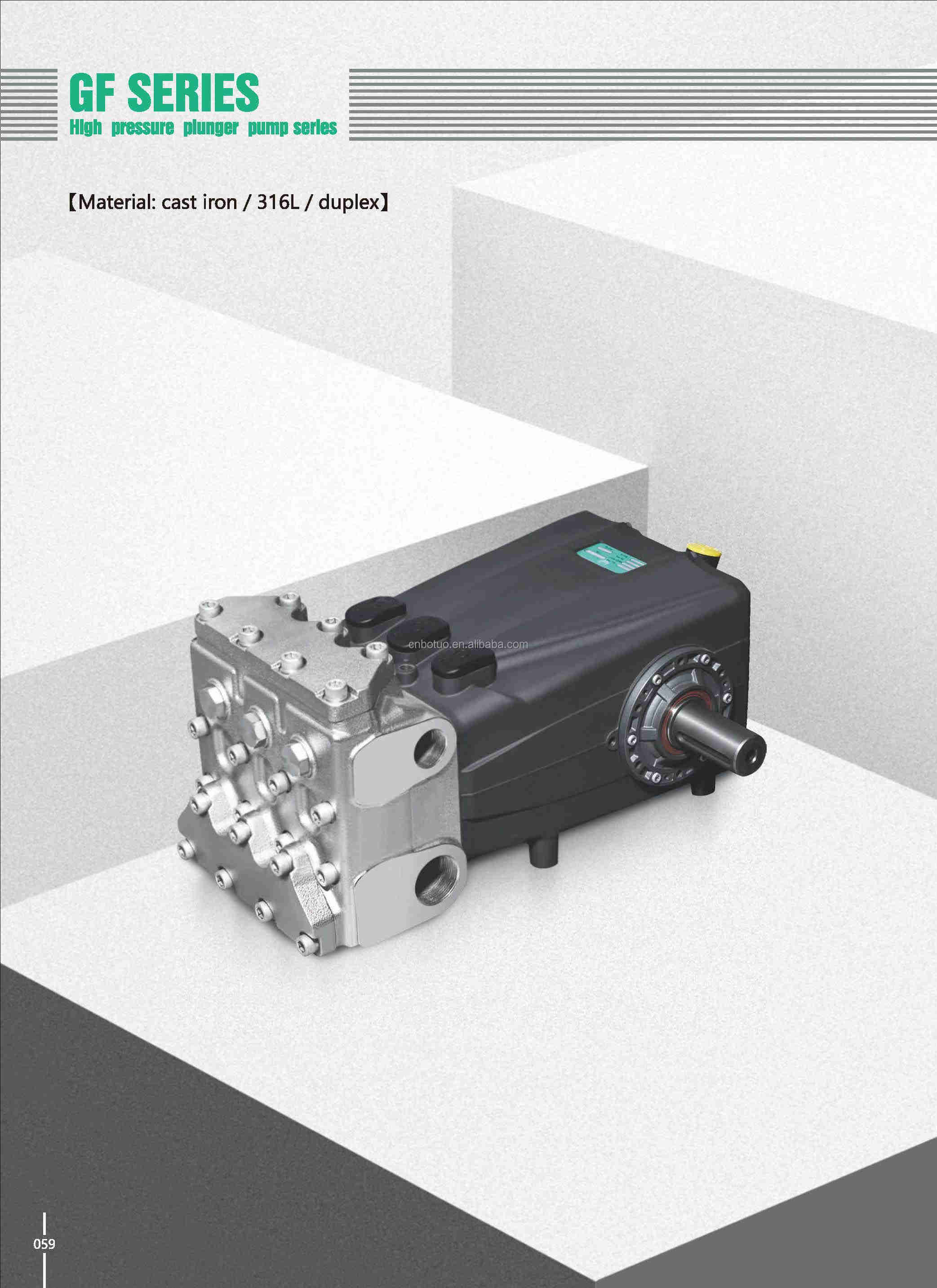

♦♦Description of Gear Box High Pressure Pump Plunger
The high pressure plunger pump, integrated the up-dated technology of plunger pumps and skillful production process, becomes a reliable, popular pump with longer service life, minimal downtime and significantly reductive operational cost.
♦♦Feature of Gear Box High Pressure Pump Plunger：
* Triplex Plunger Pump, Available in 3 Versions
* Symmetrical Crankcase Design, Easy [ left to right" Conversion.
* Spheroidal Cast Iron Manifold, Nickel Plated Treatment.
* Cast Iron Crankcase.
* Nitrided, Hardened and Tempered Alloy Steel Crankshaft.
* Roller Rim Shaft Bearing
* Aluminum Alloy Connecting Rod
* Stainless Steel Checking Valve
* Anti-Friction Solid Ceramic-Coated Plunger.
* HP Seal

Specification

Warranty	1 Year
Applicable Industries	Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Home Use, Construction works , Energy & Mining, Other, Advertising Company
Weight (KG)	69KG
Showroom Location	None
Video outgoing-inspection	Not Available
Machinery Test Report	Not Available
Marketing Type	Ordinary Product
Place of Origin	China
	Zhejiang
Brand Name	BoTuoLiNi
Type	High Pressure Washer Pump

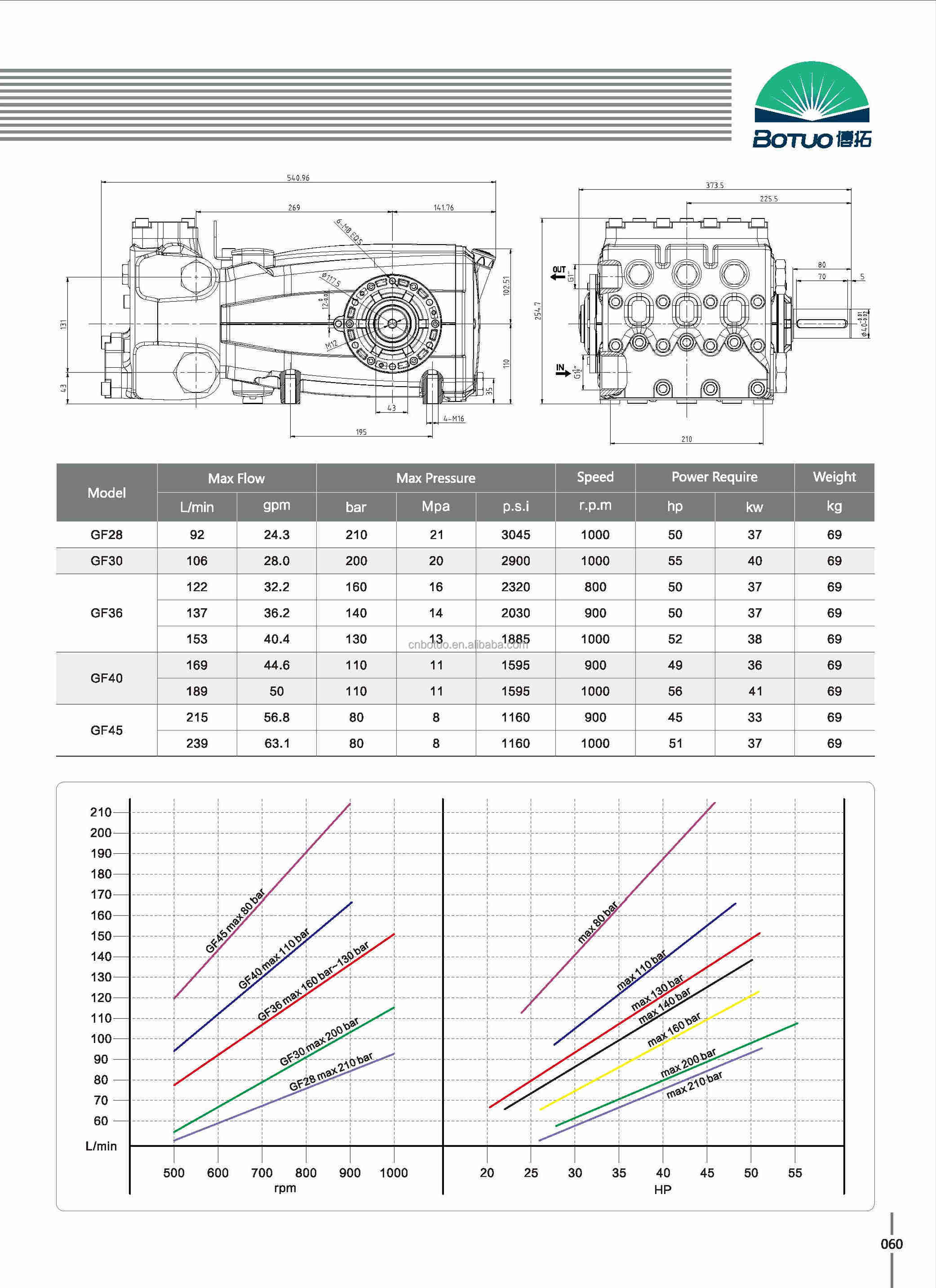

Model	Flow Rate			Pressure					Speed	Power	Weight
Model		L/min	gpm	bar	Mpa	p.s.i	r.p.m	hp	kw	kg
GF28	92	24.3	210	21	3045	1000	50	37	69
GF30	106	28.0	200	20	2900	1000	55	40	69
GF36	122	32.2	160	16	2320	800	50	37	69
		137	36.2	140	14	2030	900	50	37	69
		153	40.4	130	13	1885	1000	52	38	69
GF40	169	44.6	110	11	1595	900	49	36	69
GF40		189	50	110	11	1595	1000	56	41	69
GF45	215	56.8	80	8	1160	900	45	33	69
GF45		239	63.1	80	8	1160	1000	51	37	69

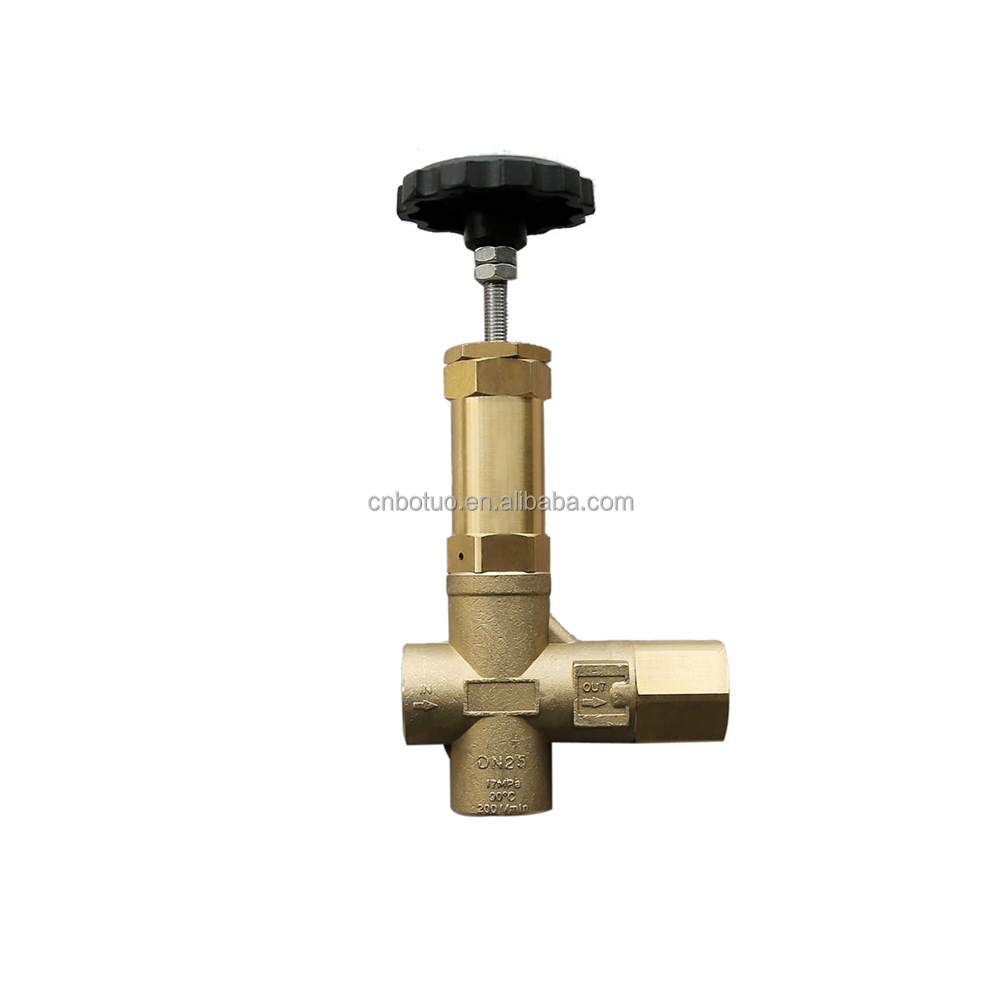

Unloader Valve

Description : VK 200

Flow : 200L/min 52.84gpm

Max working pressure : 170bar/2465psi

Inlet : G1''

Outlet : G1''

Safety Valve

Description : VS 200

Flow : 200L/min 52.84gpm

Max working pressure : 250bar/3625psi

Inlet : G3/4

Outlet : G1/2

Applications

Application of BOTUO PUMP GF Series Top Supplier Gearbox Pump Industrial Gearbox Drive Triplex Plunger Pump:The Industrial Gearbox Drive Triplex Plunger Pumps are ideally for high pressure cleaning, street and drain jetting, heavy duty industrial systems, mining and drilling applications.
* High Pressure Cleaning.
* Car, Truck, Vehicles Washing

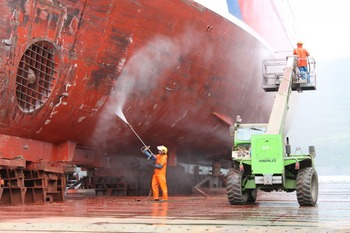

* Construction Site, Oil Field, Shipyard, Mining, Food Cleaning
* High Pressure Sewer Jetting
* High Pressure Street Cleaning
* Liquid CO2 pump for gel and foam manufacturing
* Conveyor cleaning
* ECO pickled surface
* High pressure shower - Paper manufacturer
* Trim squirt - Paper manufacturer
* Label removal - Propane tanks
* Fleet wash
* Heavy equipment wash
* Off-road equipment cleaning
* Auto detailing
* Jet engine wash
* Others

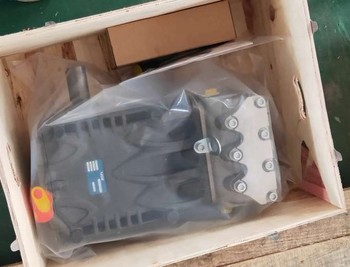

Packing & Delivery

carton，box

Company Profile

Zhejiang Botuolini Machinery Co.,Ltd was established in 2008, is committed to the product development and production of triplex plunger pumps, industrial high pressure washers. Now it covers an area of 40,000 square meters, with 200 employees and 40 R&D designers. Leading domestically in the plunger pump industry and ranking among the top ten in the world. The factory has passed ISO9001 certification, and has passed the ethics, safety and production certification of many international companies. In terms of quality inspection, we ensure the standardized production and quality control of products through 5S methods and procedures; in terms of product development and innovation, we use analogy methods to ensure product leadership. In terms of market, the products are sold to 46 countries around the world, with an annual sales of 500 million US dollor. We have done OEM and ODM for Zoomlion and other companies. The after sales service and technical support for customers have also been recognized by customers.
