Hot Rolled/ Welded Profile Carbon H Iron Beam
2 year ago
Product Introduction
H-beam section is a type of economic construction steel, it's shape is of economic and reasonable design.

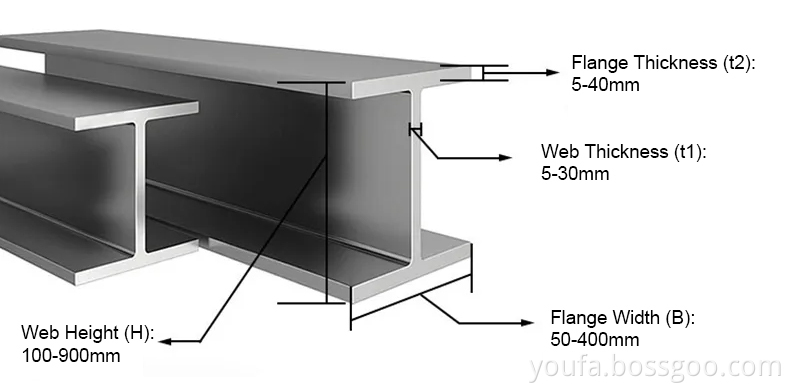

H-beam size always shows as Web Height*Flange Width*Web Thickness*Flange Thickness; H beam has the following good point.
· Good mechanics performance.
· Rolling section on each extension point is relatively uniform.
· Light weight, saving metal by about the 30-40% of the whole structure
· Combined into components, can save welding, riveting work of 25%.
· Small internal stress.
Since it's good mechanical property, it be widely used for big building(such as factory, high building etc...as well as bridge,vessel, lifting transportation machinery,basic structure bracket, basic pile and so on.
Product Specification
|
Product Name |
Hot Rolled H Beam / H Shaped Steel / H Channel Steel / H Section Steel |
|
Standard |
GB/T 11263, EN 10034, EN 10025, JIS G3101, ASTM A36, ASTM A572, ASTM A992 |
|
Shape |
H Channel |
|
Technique |
Hot Rolled/ Welded |
|
Materials |
Q235B, Q345B, S235JR, S235J0, C, S355JR, S355J0, S355J2, S355NL, SS400, ASTM A36, A572, A992, G300, G350 etc. |
|
Standard Size Type |
HW, HM, HN; HEA120-HEA450, HEB120-HEB400, HEM100-HEM450 |
|
Web Height |
100--900mm, or as required |
|
Flange Width |
50-400mm, or as required |
|
Web Thickness |
5-30mm, or as required |
|
Flange Thickness |
5-40mm, or as required |
|
Length |
1m-12m, or other lengths required |
|
Surface Treatment |
Hot Dip Galvanized, Painting or Black. |
|
Custom services |
Cutting, Punching, Drilling, Bending, Welding |
|
Packing |
By bundles with steel strips or as customer request |
|
Delivery Time |
15 days after receive advance payment or L/C |
|
Application |
Mechanical&manufacture, Steel structure, Shipbuilding, Bridging, Automobile chassis. |
Chinese Standard Size:
a.) Hot rolled H-beam HW HM HN
b.) Welded H-beam
|
Type |
Ratio (H:B) |
Size (H*B) (mm) |
Web Thickness (mm) |
Flange Thickness (mm) |
Length (m) |
Weight (kg/m) |
Main Applications |
|
HW |
1:1 |
100*100-400*400 |
6-21 |
8-21 |
5.8-12 |
17.2-284 |
Column |
|
HM |
1.33~1.75:1 |
150*100-600*300 |
6-14 |
9-23 |
5.8-12 |
21.4-175 |
Frame Beam |
|
HN |
>2:1 |
150*75-900*300 |
5-16 |
7-28 |
5.8-12 |
14.3-243 |
Steel Beam |
|
H Beam Specification |
|||||
|
Size |
Theoretical weight (kg/m) |
Size |
Theoretical weight (kg/m) |
Size |
Theoretical weight (kg/m) |
|
100*50*5*7 |
9.54 |
250*255*14*14 |
82.2 |
400*400*13*21 |
172 |
|
100*100*6*8 |
17.2 |
294*200*8*12 |
57.3 |
400*408*21*21 |
197 |
|
125*60*6*8 |
13.3 |
300*150*6.5*9 |
37.3 |
414*405*18*28 |
233 |
|
125*125*6.5*9 |
23.8 |
294*302*12*12 |
85 |
440*300*11*18 |
124 |
|
148*100*6*9 |
21.4 |
300*300*10*15 |
94.5 |
446*199*7*11 |
66.7 |
|
150*75*5*7 |
14.3 |
300*305*15*15 |
106 |
450*200*9*14 |
76.5 |
|
150*150*7*10 |
31.9 |
338*351*13*13 |
106 |
482*300*11*15 |
115 |
|
175*90*5*8 |
18.2 |
340*250*9*14 |
79.7 |
488*300*11*18 |
129 |
|
175*175*7.5*11 |
40.3 |
344*354*16*16 |
131 |
496*199*9*14 |
79.5 |
|
194*150*6*9 |
31.2 |
346*174*6*9 |
41.8 |
500*200*10*16 |
89.6 |
|
198*99*4.5*7 |
18.5 |
350*175*7*11 |
50 |
582*300*12*17 |
137 |
|
200*100*5.5*8 |
21.7 |
344*348*10*16 |
115 |
588*300*12*20 |
151 |
|
200*200*8*12 |
50.5 |
350*350*12*19 |
137 |
596*199*10*15 |
95.1 |
|
200*204*12*12 |
72.28 |
388*402*15*15 |
141 |
600*200*11*17 |
106 |
|
244*175*7*11 |
44.1 |
390*300*10*16 |
107 |
700*300*13*24 |
185 |
|
244*252*11*11 |
64.4 |
394*398*11*18 |
147 |
792*300*14*22 |
191 |
|
248*124*5*8 |
25.8 |
400*150*8*13 |
55.8 |
800*300*14*26 |
210 |
|
250*125*6*9 |
29.7 |
396*199*7*11 |
56.7 |
900*300*16*28 |
243 |
|
250*250*9*14 |
72.4 |
400*200*8*13 |
66 |
|
|

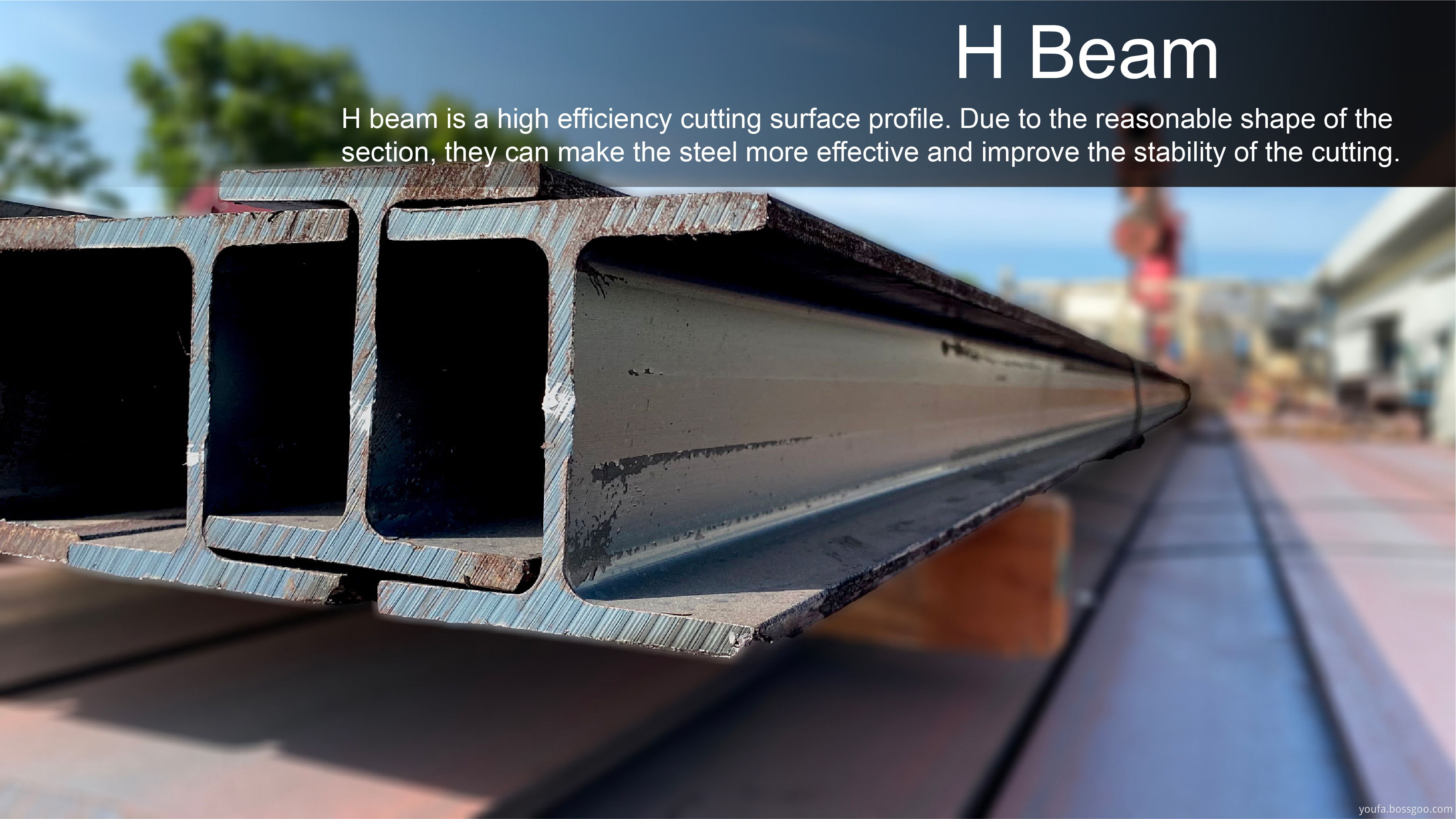

Product Display
We can produce different sizes, thicknesses, widths and materials according to your requirements

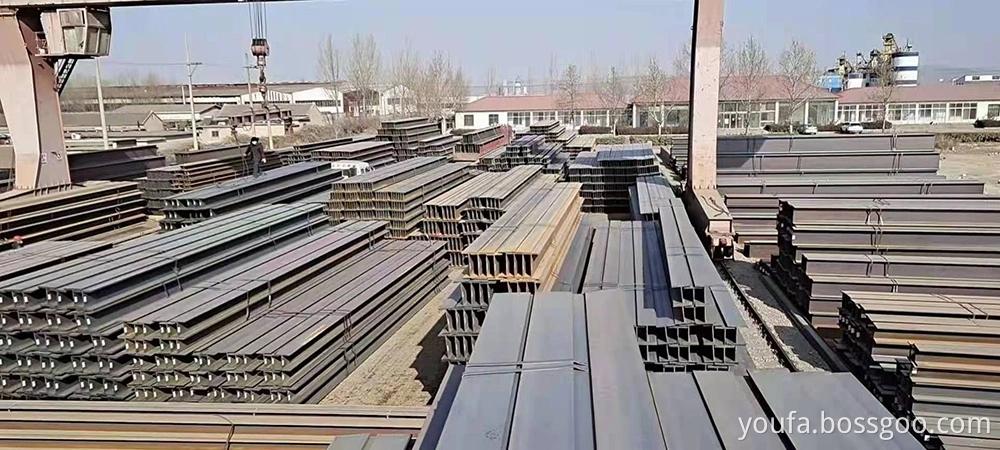

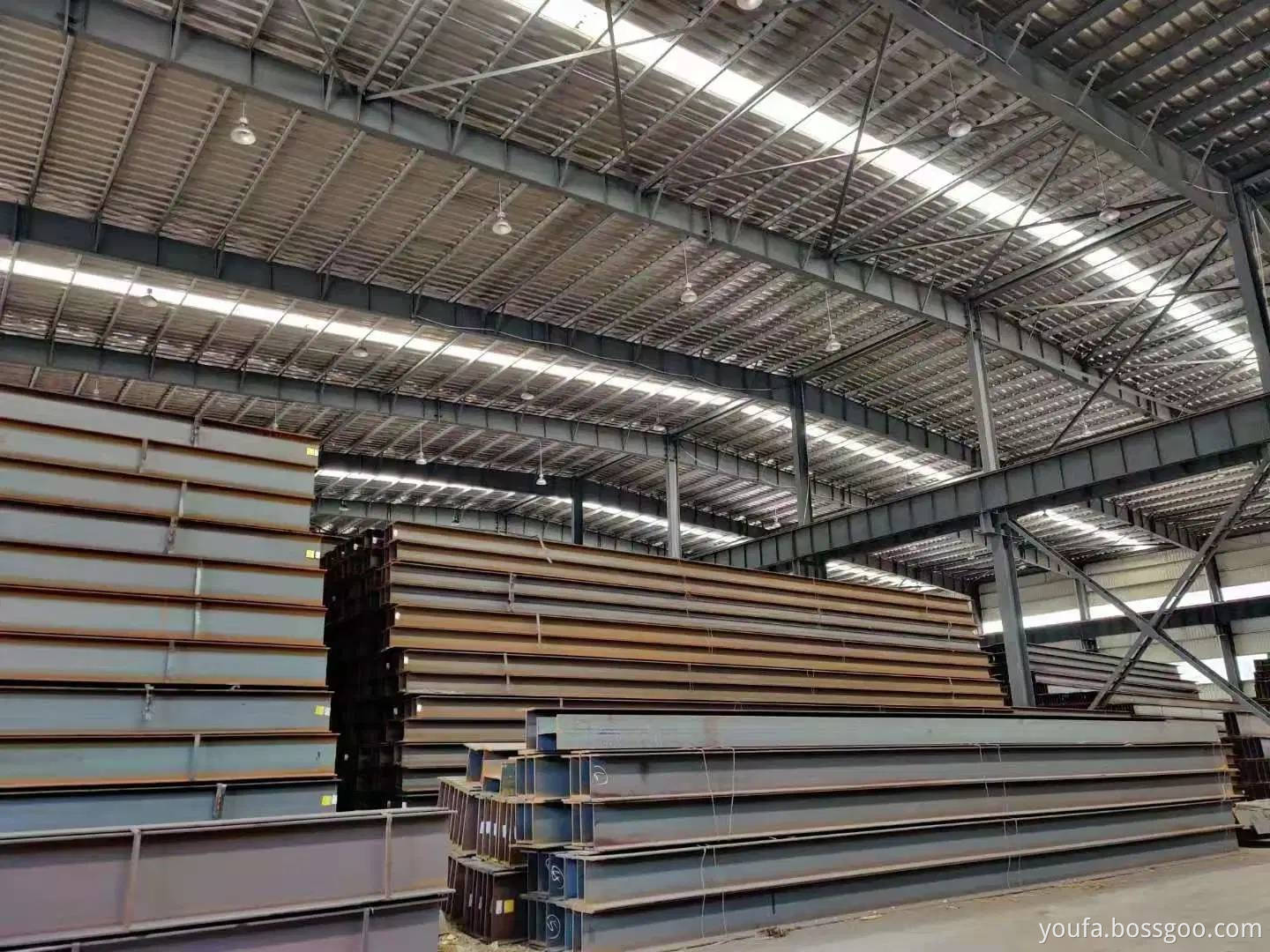

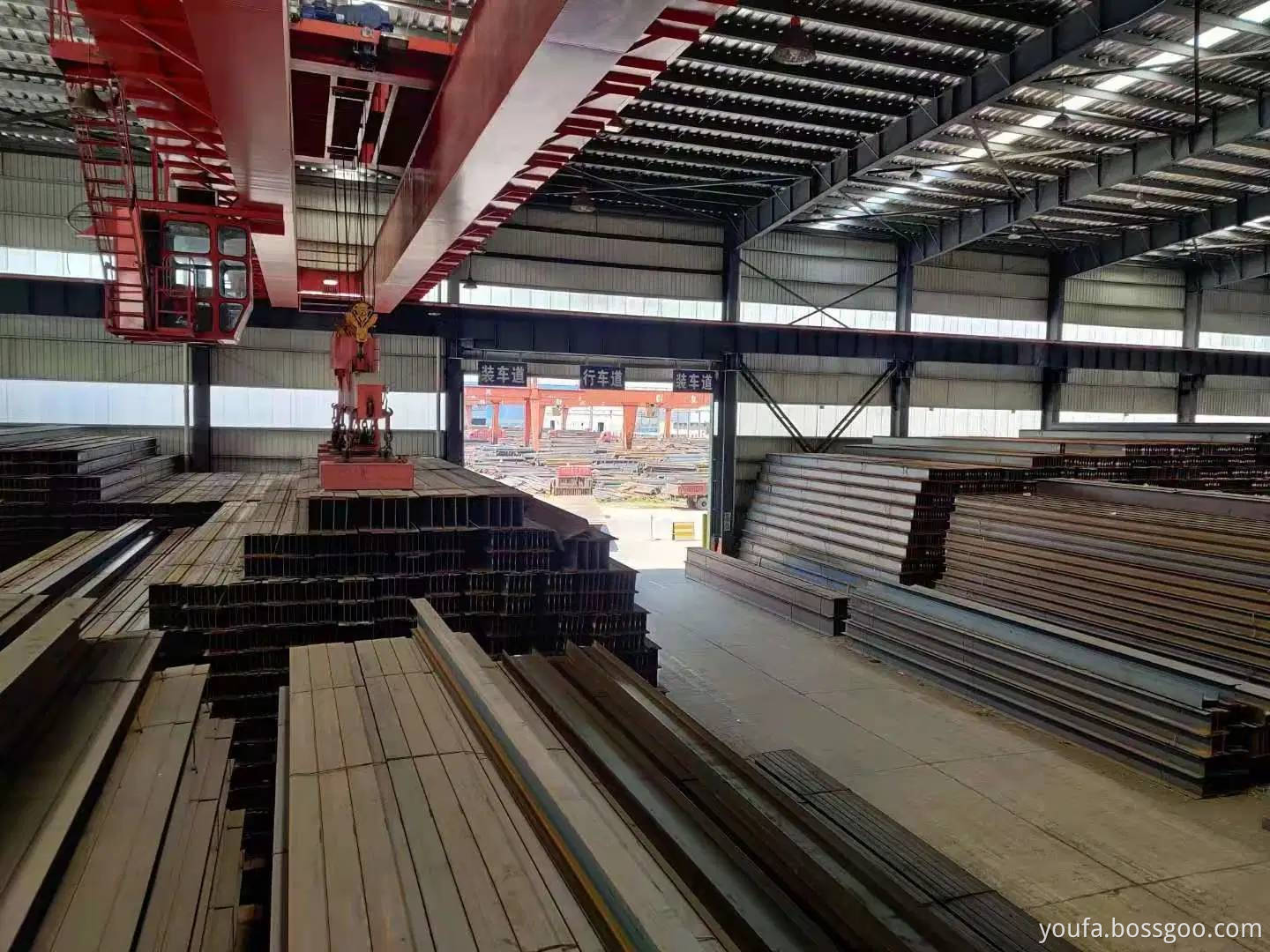

Our Factory
