1'' 8296400.8171 8297400.8171 Norgren Buschjost Type Pulse Valve Diaphragm 1261253
Product introduction
The 1261253 diaphragm repair kit is suitable for 1'' Norgren type pulse valve 8290400.0000, 8296400.8171, 8297400.8171. The diaphragm is an integral part of the pulse valve. The diaphragm is characterized by high temperature resistance and a long service life even under harsh conditions. It is a TPE diaphragm with white color. One set contains 1 diaphragm, packaged in plastic bag.Different valves match different diaphragms. We produce coils, armature and pulse jet valves. And we also have other Norgren Buschjost Type Pulse Valve Diaphragm to choose from, 1261253, 1261402, 1268274, 1271526.
TPE Material Diaphragm
The material of 1261253 diaphragm is TPE, which has good thermal aging resistance and can withstand operating temperatures from -40 to 85℃.

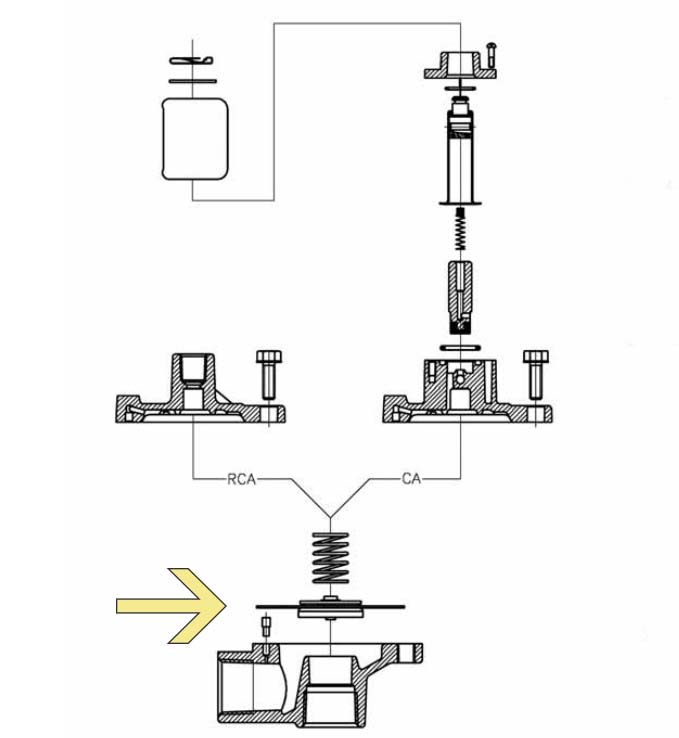

The Role Of The Diaphragm In Valves
The diaphragm is highly flexible and force to control the opening and closing of the valve. It primarily controls, obstruct or isolate the flow of fluids and acts as a flow control device.
Pay Attention:
◆ Please check whether the product is intact before use
◆ Please confirm that the installation conditions are in accordance with the specifications
◆ Please use in a stable environment
◆ Pay attention to clean up dust and other things that affect operation
Order Code.
|
Diaphragm Model |
Port Size |
Pulse Valve Model |
Diaphragm Material |
|
1261253 |
3/4 '' |
8290300.0000, 8296300.8171, 8297300.8171 |
TPE |
|
1261253 |
1 '' |
8290400.0000, 8296400.8171, 8297400.8171 |
|
|
1261402 |
1-1/2 '' |
8290600.0000, 8291600.0000, 8296600.8171, 8297600.8171 |
|
|
1268274 |
2 '' |
8290700.0000, 8296700.8171, 8297700.8171 |
|
|
1268274 |
2-1/2 '' |
8290800.0000, 8296800.8171, 8297800.8171 |
|
|
1271526 |
3 '' |
8290900.0000, 8296900.9171 |
|
|
1253119, 1247732 |
2 '' |
8493635 |
VITON |

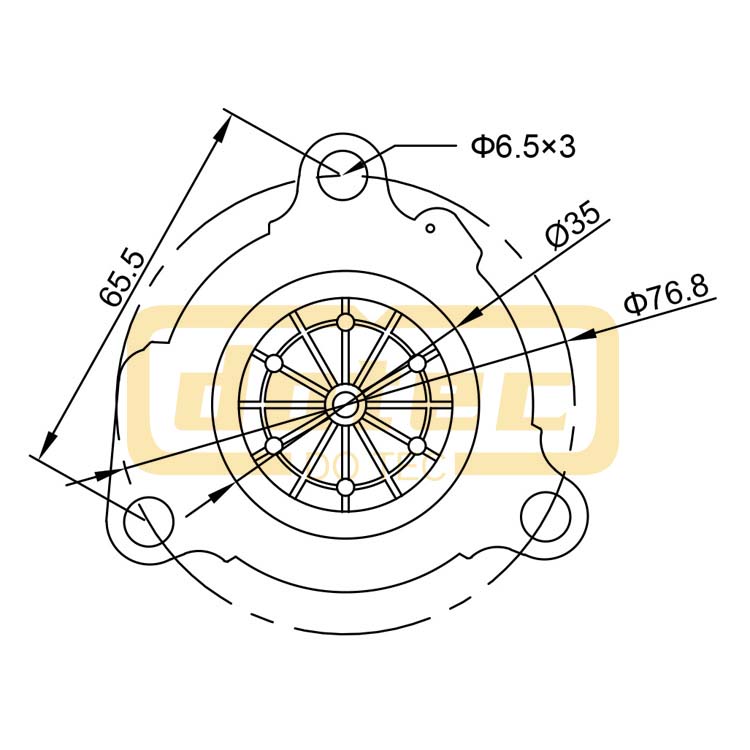

1261253 Dimension
