1253119 1247732 NBR Pulse Jet Valve Diaphragm For 8493635 Dust Collector Membrane
Product introduction
The 1253119/1247732 diaphragm repair kit is suitable for 2'' Norgren type pulse valve 8493635. The diaphragm is an integral part of the pulse valve. The diaphragm is characterized by high temperature resistance and a long service life even under harsh conditions. One set contains 2 diaphragms and 2 springs, packaged in plastic bag. Different valves match different diaphragms. We produce solenoid coils, solenoid armature and pulse jet valves. And we also have other Norgren Buschjost Type Pulse Valve Diaphragm to choose from, 1261253, 1261402, 1268274, 1271526.
NBR Material Diaphragm
The material of 1253119/1247732 diaphragm is NBR, which has good thermal aging resistance and can withstand operating temperatures from -20 to 200℃.

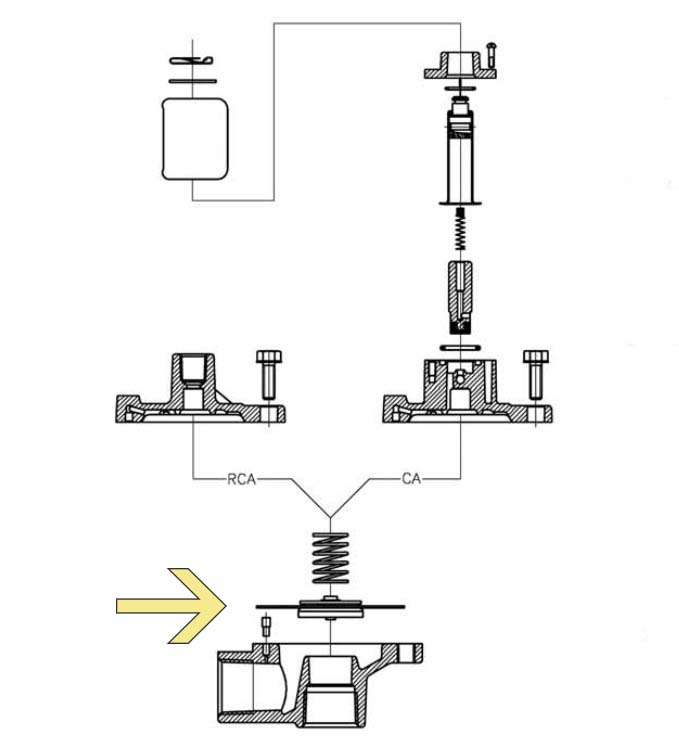

The Role Of The Diaphragm In Valves
The diaphragm is highly flexible and force to control the opening and closing of the valve. It primarily controls, obstruct or isolate the flow of fluids and acts as a flow control device.
Pay Attention:
◆ Please check whether the product is intact before use
◆ Please confirm that the installation conditions are in accordance with the specifications
◆ Please use in a stable environment
◆ Pay attention to clean up dust and other things that affect operation
Order Code.
|
Diaphragm Model |
Port Size |
Pulse Valve Model |
Diaphragm Material |
|
1261253 |
3/4 '' |
8290300.0000, 8296300.8171, 8297300.8171 |
TPE |
|
1261253 |
1 '' |
8290400.0000, 8296400.8171, 8297400.8171 |
|
|

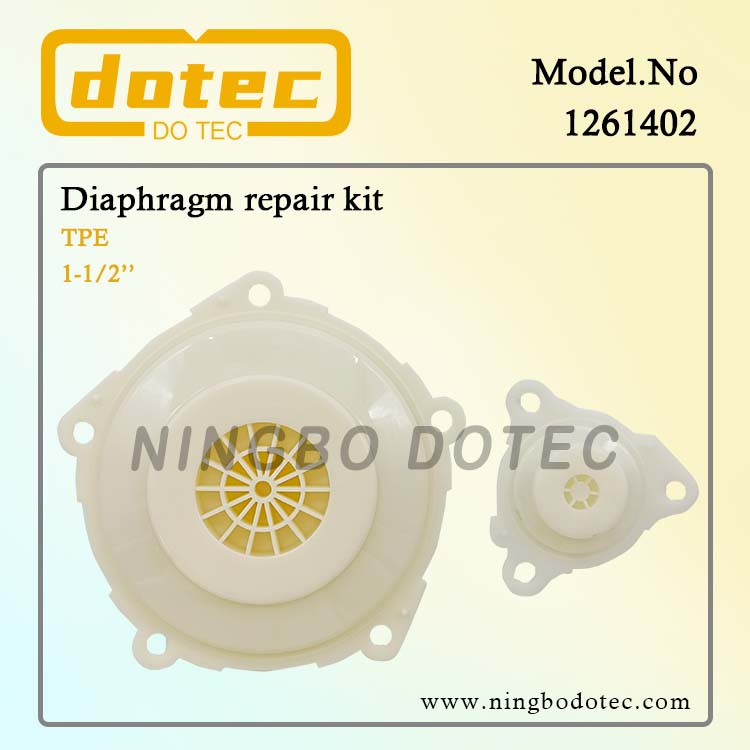

1261402 |
1-1/2 '' |
8290600.0000, 8291600.0000, 8296600.8171, 8297600.8171 |
|
|
1268274 |
2 '' |
8290700.0000, 8296700.8171, 8297700.8171 |
|
|
1268274 |
2-1/2 '' |
8290800.0000, 8296800.8171, 8297800.8171 |
|
|

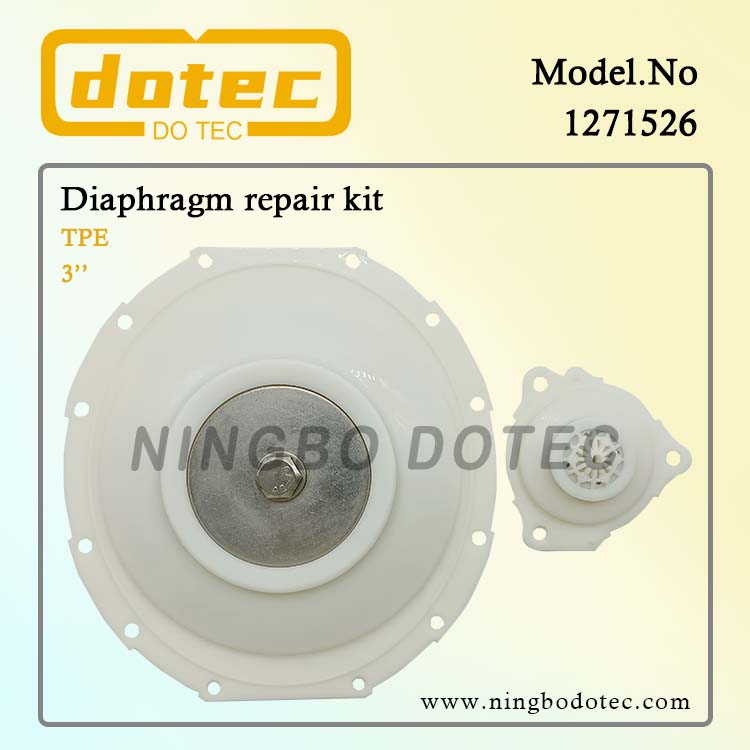

1271526 |
3 '' |
8290900.0000, 8296900.9171 |
|
|
1253119, 1247732 |
2 '' |
8493635 |
NBR |

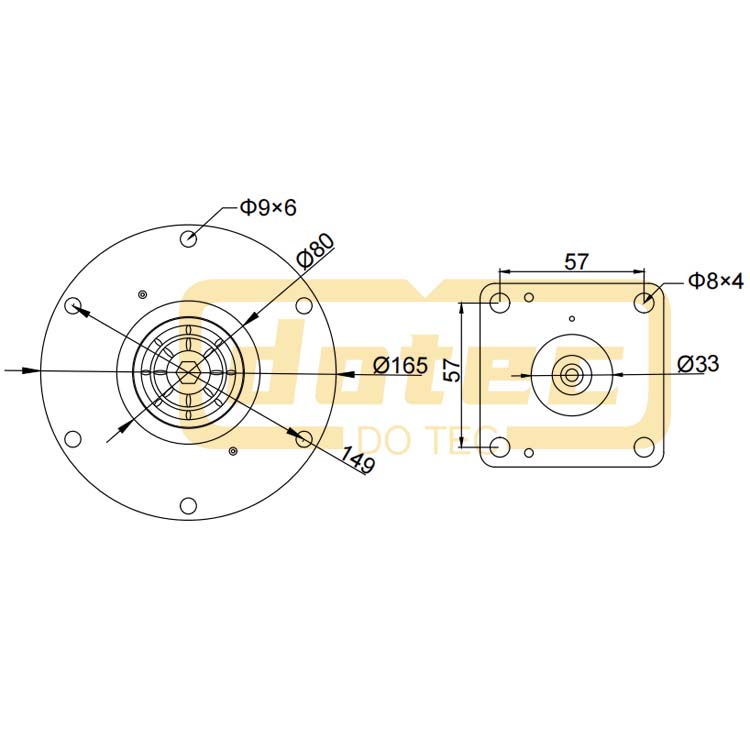

1253119/1247732 Dimension
