TRIAC BT134 1-3MA TO126CU

2 year ago

30 0 

YANGZHOU POSITIONING TECH CO., LTD.

7 year

Product details

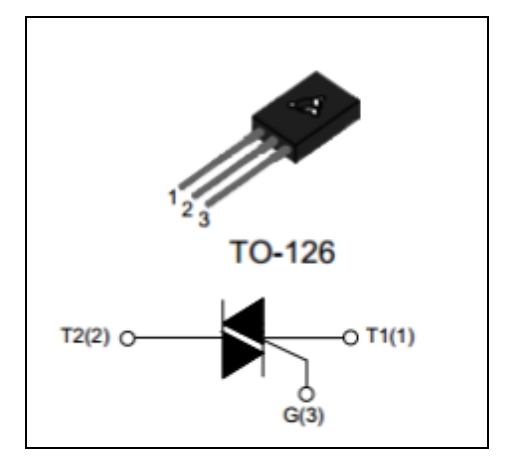

BT134 Triac TO-126 package

Product features

P+ on the through diffusion isolation,

Single mesa structure (Single Mesa),

Table glass passivation process,

Gate logic level trigger

Application of IC drive directly

YZPST-BT134

Main Feature (Tj=25℃)

Symbol	Value	Unit
IT (RMS)	2	A
VDRM / VRRM	600	V
VTM	1.5	V

Electrical characteristics (Tj=25℃ unless otherwise stated)

Symbol	Test Conditions		Value			Unit
Symbol	Test Conditions		Min	Type	Max	Unit
IGT	VD=12V,IGT=0.1A	ⅠⅡⅢ	-----	-----	3	mA
IGT	VD=12V,IGT=0.1A	Ⅳ	-----	-----	5	mA
IDRM	VD=VDRM	Tj=25℃	-----	-----	10	μA
IDRM	VD=VDRM	Tj=125℃	-----	-----	0.2	mA
IRRM	VD=VRRM	Tj=25℃	-----	-----	10	μA
IRRM	VD=VRRM	Tj=125℃	-----	-----	0.2	mA
IL	VD=12V,IGT=0.1A	ⅠⅡⅢ	-----	-----	7	mA
IL	VD=12V,IGT=0.1A	Ⅳ	-----	-----	15	mA
VGT	VD=12V		-----	-----	1.5	V
VGD	VD=VDRM, Tj=125℃		0.2	-----	-----	V
IH	VD=12V ，IT=100mA		-----	-----	15	mA
VTM	ITM=5A,tp=380 μs		-----	-----	1.6	V
dV/dt	VD=67%VDRM,		30			v/ μs
dV/dt	GateOpen, Tj=125℃		30	-----	-----	v/ μs

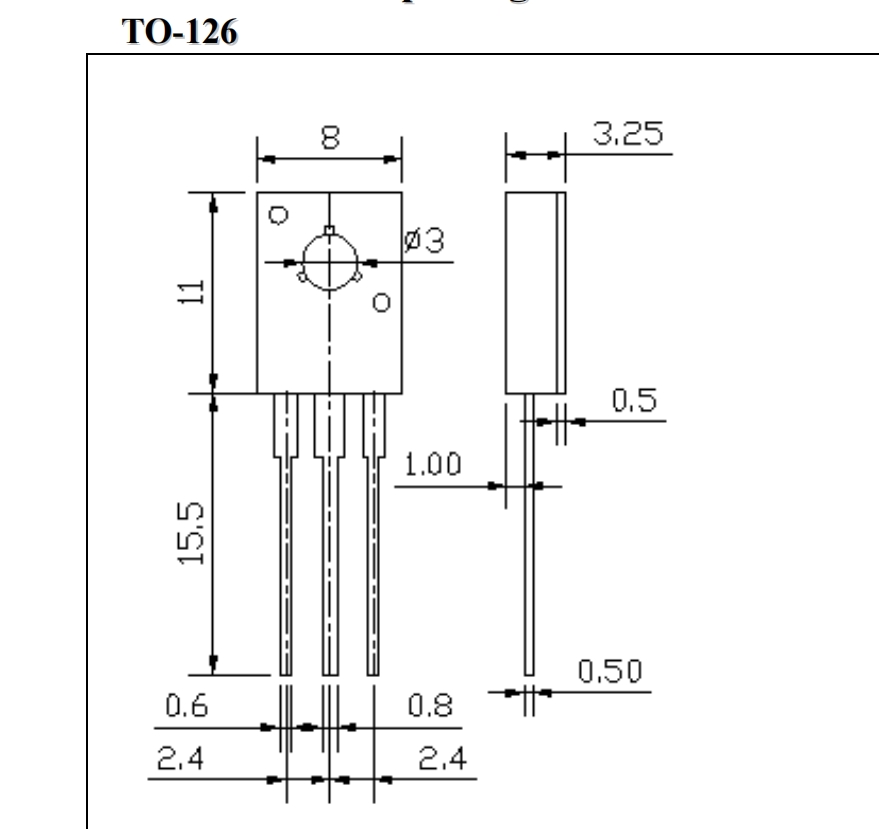

Measure of package

TO-126
