Schottky Bypass Diode Module MK5045
2 year ago

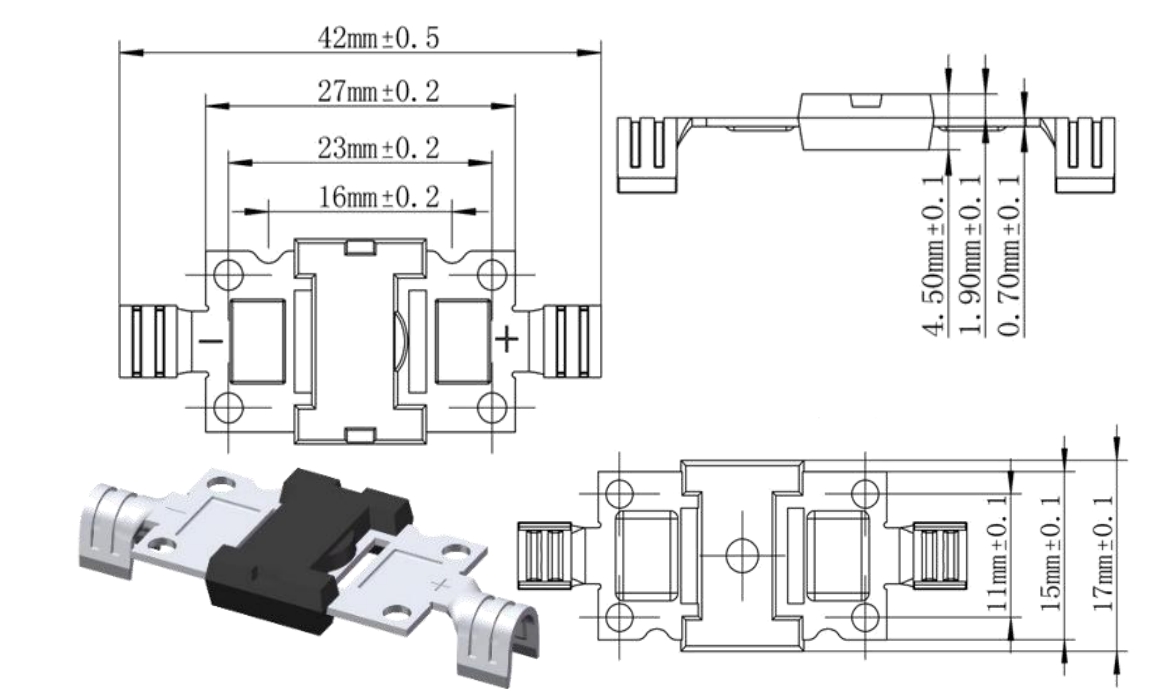

Polarity: As marked on the body
PRIMARY CHARACTERISTICS
IF(AV)
50 A
VRRM
45 V
VF
0.6 V
MAXIMUM RATING (TA = 25 ℃ unless otherwise noted）
PARAMETER
SYMBOL
MK5045
UNIT
Maximum repetitive peak reverse voltage
VRRM
45
V
Maximum RMS voltage
VRMS
31.5
V
Maximum DC blocking voltage
VDC
45
V
Maximum average forward rectified current
IF(AV)
50.0
A
Peak forward surge cuurent 8.3ms single half sine_wave superimposed on rated load @60Hz
IFSM
400
A
Operating junction temperature range
TJ
-55 to +200
℃
Storge temperature range
TSTG
-55 to +200
℃
Note
(1) Pulse test: 300us pulse width, 1% duty cycle 300us
THERMAL CHARACTERISTICS (TA = 25 ℃ unless otherwise noted)
PARAMETER
TEST CONDITIONS
SYMBOL
MK5045
UNIT
Typical thermal resistance
Junction to Case
RthJ-C
0.8
℃/W
ELECTRICAL CHARACTERISTICS (TA = 25 ℃ unless otherwise noted)
PARAMETER
TEST CONDITIONS
SYMBOL
MK5045
UNIT
Maximum instantaneous forward voltage
50.0 A
VF(1)
0.6
V
Maximum instantaneous reverse current at rated DC blocking voltage
TJ = 25 ℃
0.5
TJ = 125 ℃
IR(1)
100
mA
