19PVC steel wire hose pipe production line (1)
4 year ago

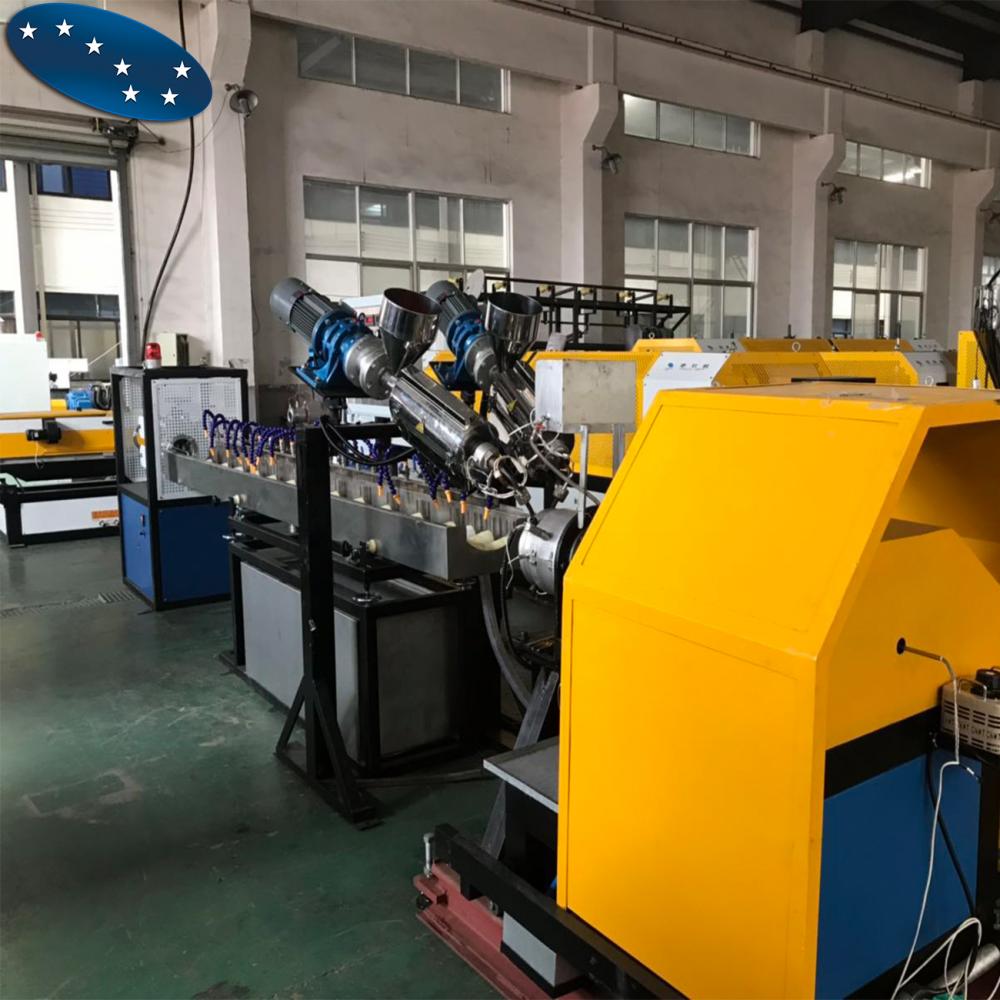

Non - Toxic Spiral PVC Steel Wire Hose Production Line
This Plastic Pipe Making Machine is mainly used to produce high strength pipes with one layer or several layers of steel wire, glass fiber and polyester fiber in the middle of the pipe or add the above materials to the existing PE pipe to increase the working pressure ratio to 4MPa. The PVC Steel Reinforced Hose Machine, from feeding to final stacking, can be controlled automatically by PLC control system, which is of high reliability, easy operation and convenient maintenance.
Except for hose production line,we can also supply you some related machines,such as:PVC Pipe Making Machine,PVC Granulator,PVC mixer,Plastic Pulverizer,Plastic Crusher etc.
Technical Parameters
|
Model |
L/C |
screw |
material quality |
screw |
Host power KW |
Total power KW |
Center High MM |
Produce the scope MM |
Actual area M |
|
45/30 |
30:1 |
Separate type |
38CrMoAlA |
45 |
7.5 |
15 |
1100 |
φ12-φ25 |
7 × 2.5 |
|
65/30 |
30:1 |
Separate type |
38CrMoAlA |
65 |
15 |
32 |
1100 |
φ25-φ50 |
7 × 3.2 |
|
90/30 |
30:1 |
Separate type |
38CrMoAlA |
90 |
30 |
49 |
1100 |
φ50-φ75 |
7 × 4.1 |
|
100/30 |
30:1 |
Separate type |
38CrMoAlA |
100 |
45 |
69 |
1100 |
φ75-φ102 |
7 × 4.5 |
|
120/30 |
30:1 |
Separate type |
38CrMoAlA |
120 |
55 |
84 |
1100 |
φ102-φ156 |
4 × |
Machine Details

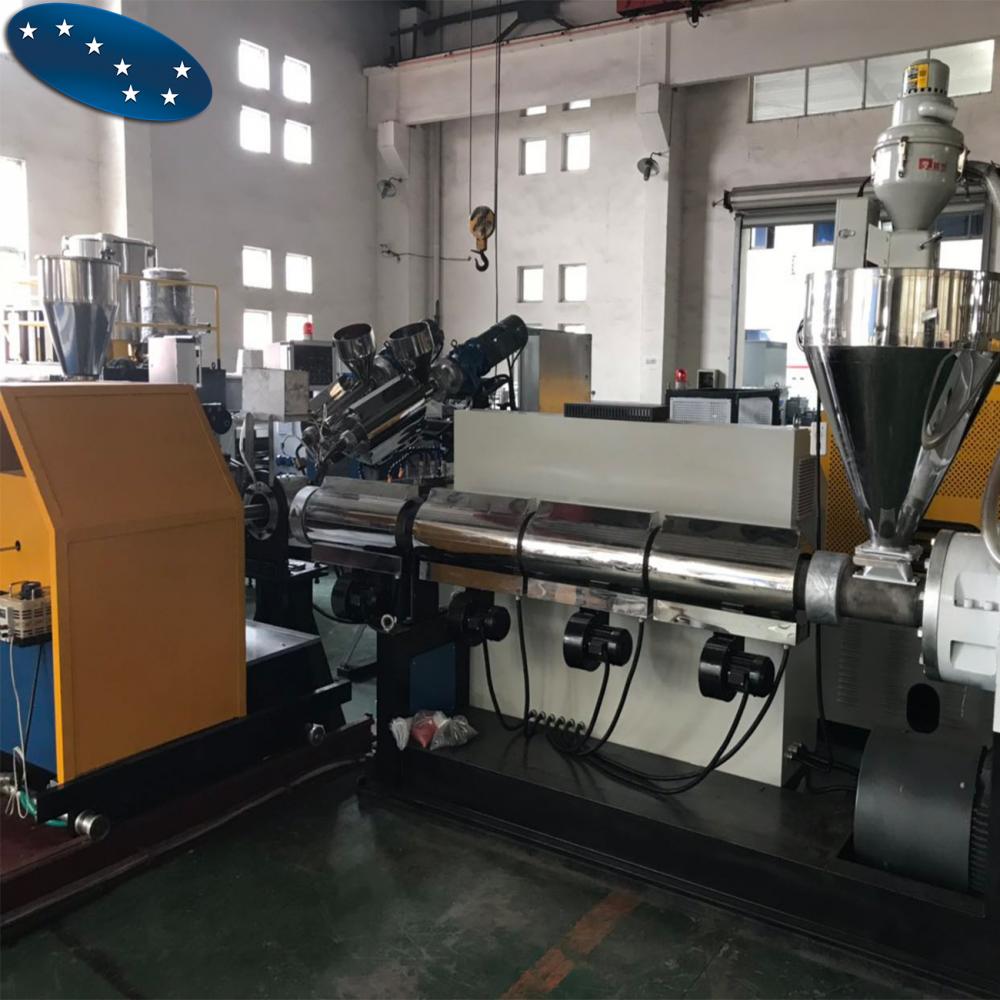

Single screw extruder-1set

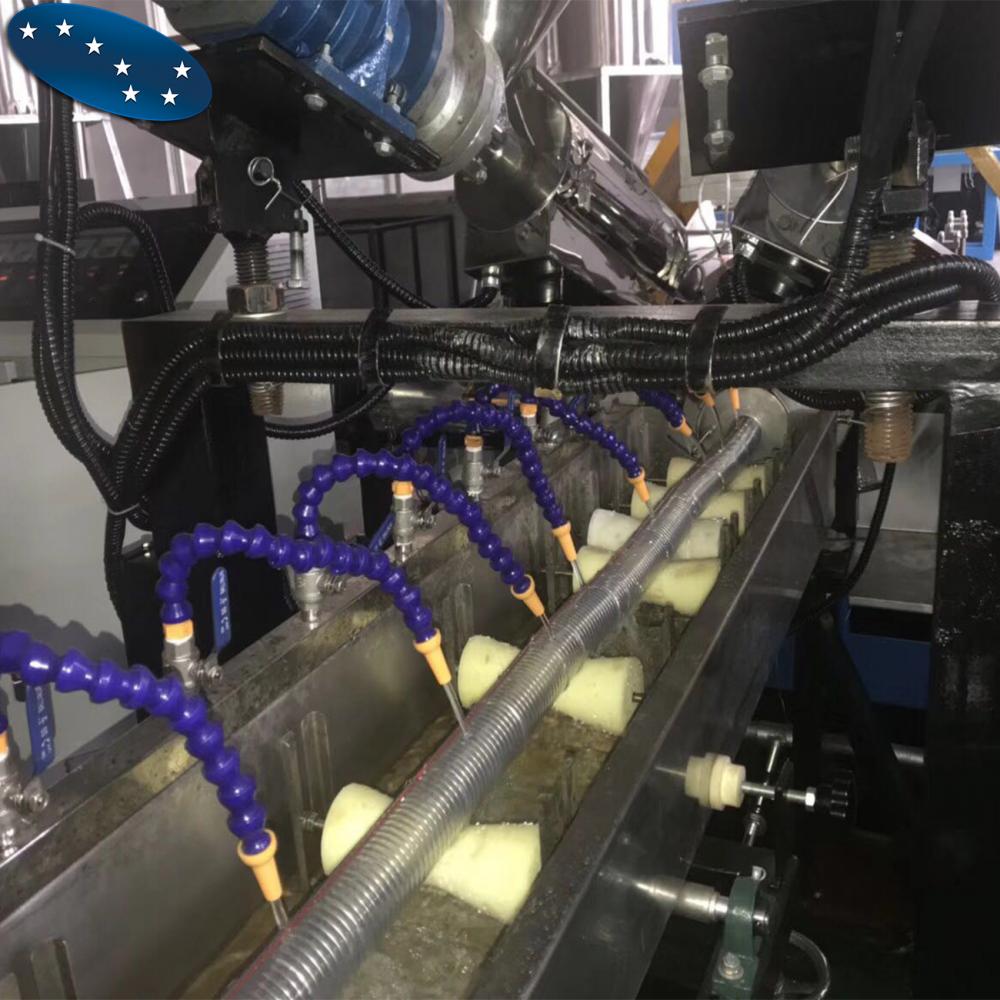

Spiral steel wire forming unit-1set

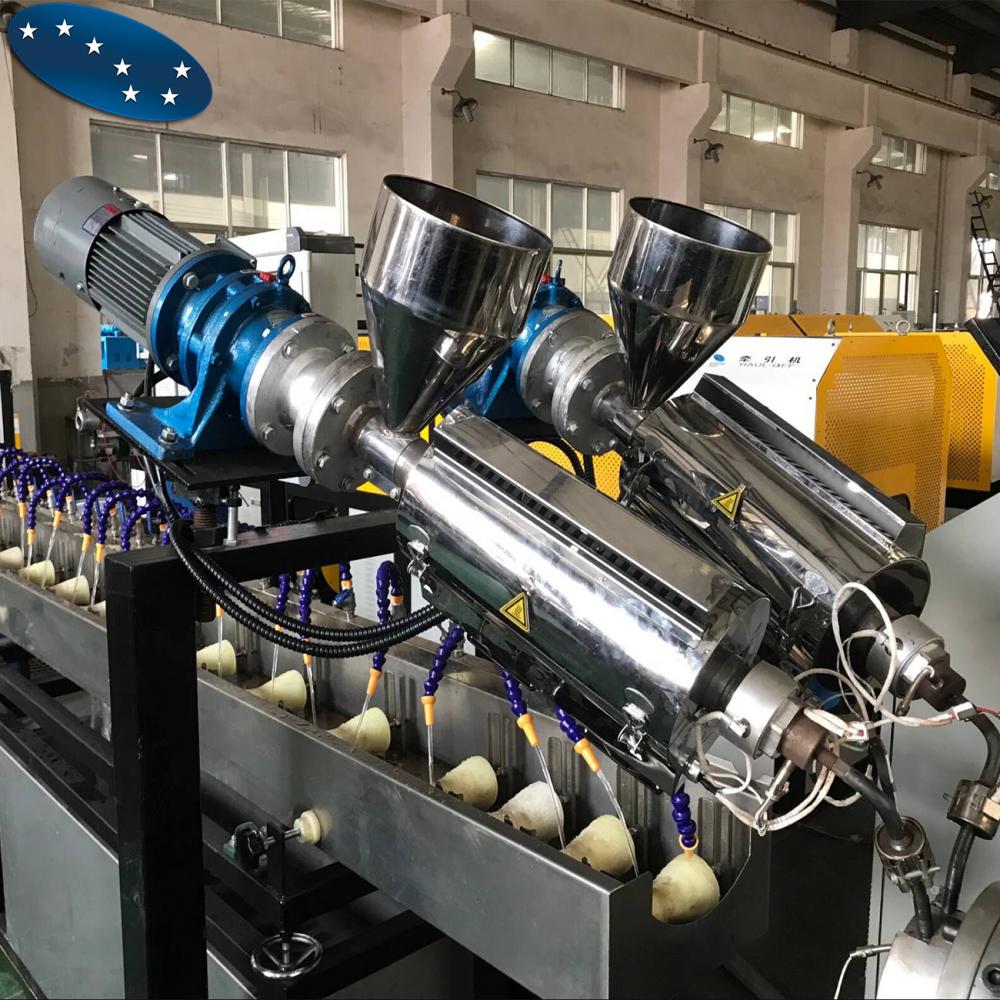

Co-extruder for color marking line-2set
Water cooling bath-1set

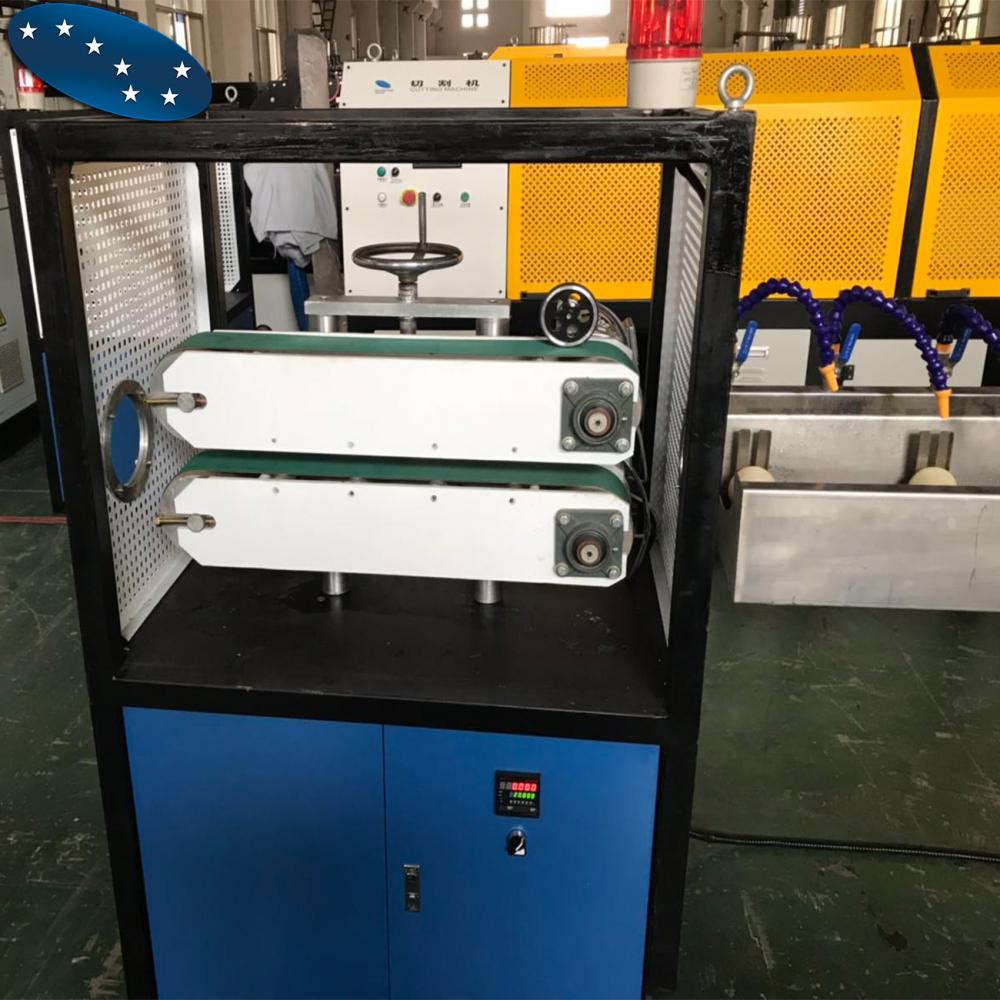

Haul-off unit-1set
