Hydraulic Oil Filter Cartridge

Construction

 As the core of the filter, lubricant oil filter cartridge is the filter element which performs the actual filtration and/or dewatering function in the housing.
They consist of several pleated filtration and support layers which are placed as a cylinder around or inside the stabilizing support tube. These mesh packs are sealed by the endcaps.

Regardless of the type of filter, flow direction through the filter elements is from out to in.
Depending on the filter material, the filter mesh pack is encased in an additional outer plastic sleeve.

Description

Direction of flow---------------------------from out to in

Element description---------------------with or without valve

Element type-------------------------------D, R

Advantages

High contamination retention capacity

High pressure stability values

Good flow fatigue strength

Low initial differential pressure

Low cost with high quality

Test standard

ISO2942-ISO16889-ISO3968-ISO3724-ISO3723-ISO2943-ISO2941

Filtration rating:

W/HC: 25, 50, 100, 200 µm

Size

0030, 0035, 0055, 0060, 0075, 0110, 0140, 0160, 0240, 0280, 0330, 0500, 0660, 0990, 1320

Available pressure stability:

W/HC: 20 bar

Applicable Test

DIN ISO 2941            Collapse Burst Pressure

DIN ISO 2943            Material Compatibility With Fluids

ISO 3723                   End Load Test

ISO 3724                   Flow Fatigue Characteristics

ISO 3968                   Pressure Drop VS Flow Rate Test

ISO 16889                 Multi Pass Test

ISO 2942                   Bubble Point Test

COMPATIBILITY WITH HYDRAULIC FLUIDS ISO 2943

Hydraulic oil H to HLPD DIN 51524

Lubrication oil DIN 51517, API, ACEA, DIN 51515, ISO 6743

Compressor oil DIN 51506

Supplementary details

W=NBR seals, suitable for HFA and HFC emulsions

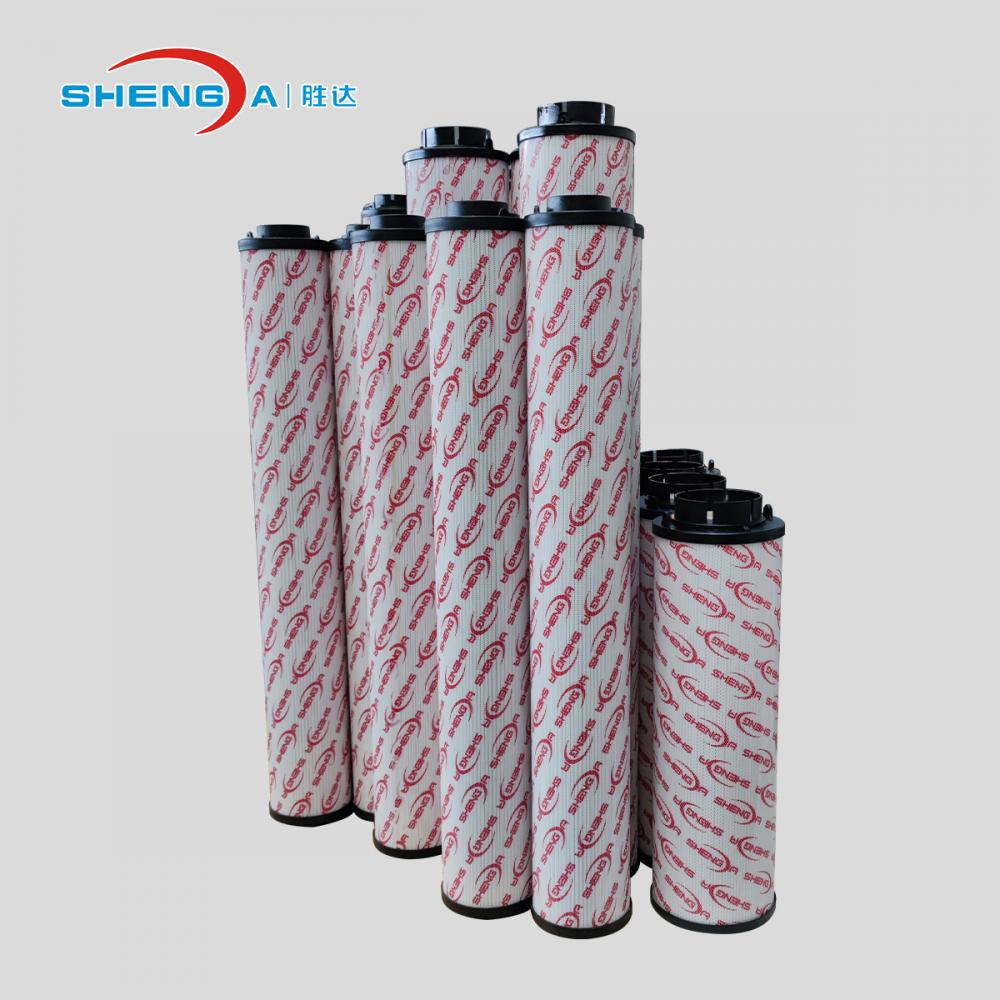

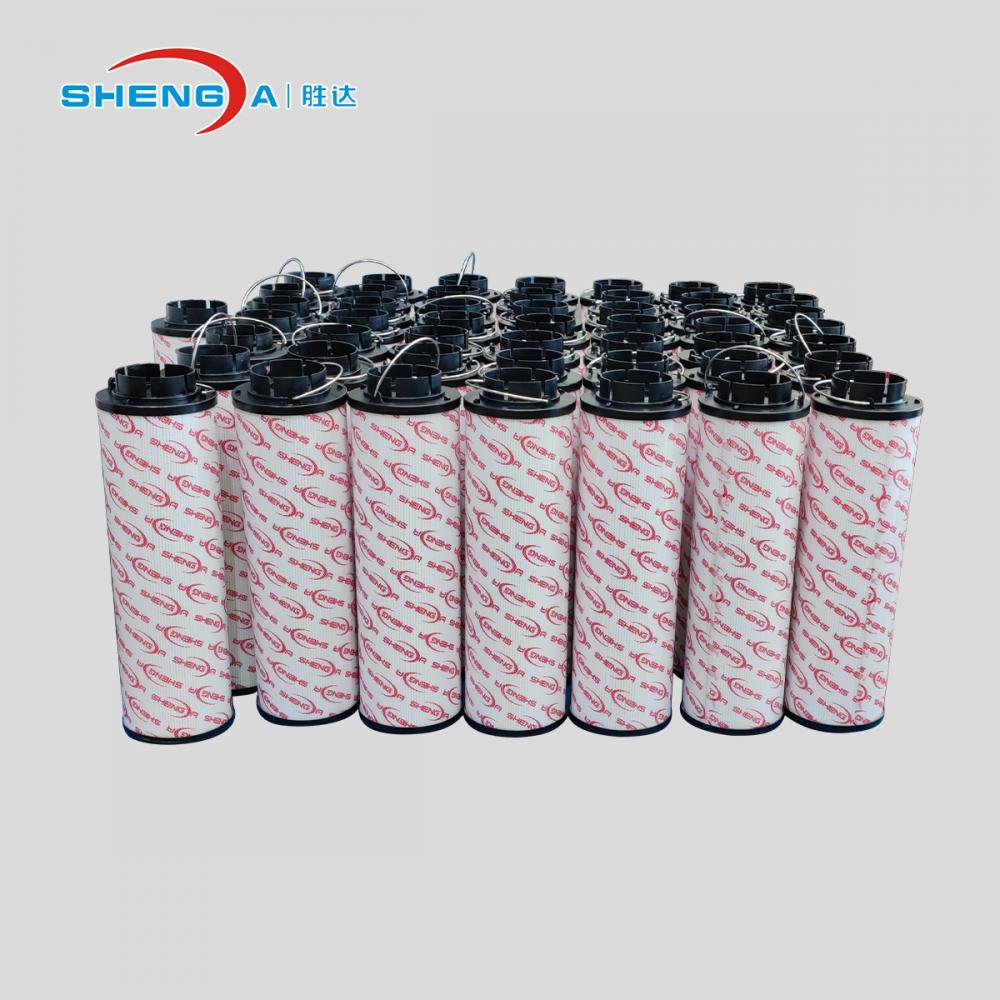

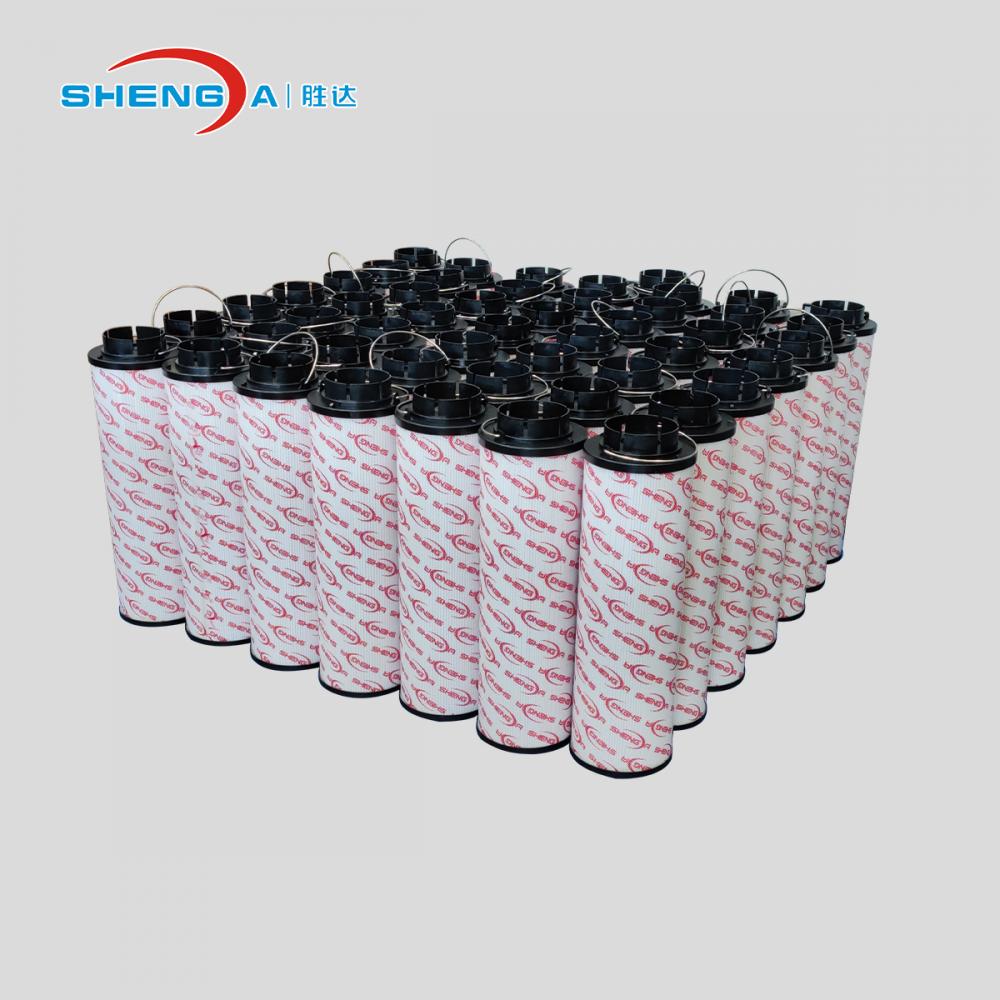

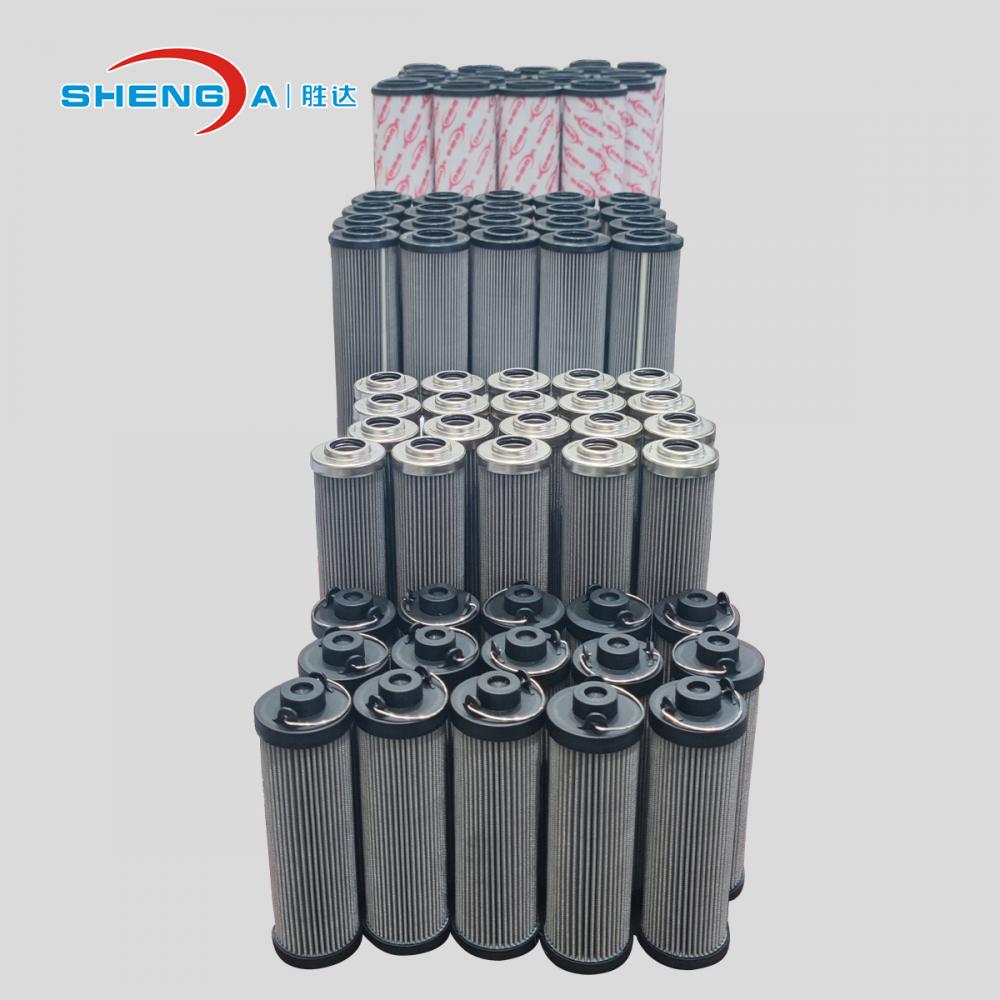

Photos
