CL-5570A Stretch Film Unit

CL-55/70A Cast Film Making Machine Pallet Stretch Film

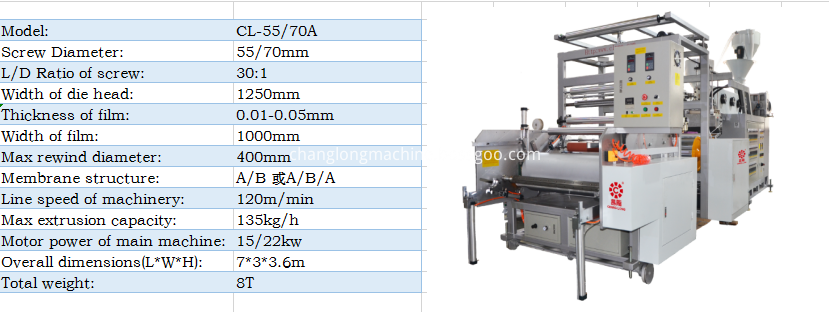

Main Technical Parameter of CL-55/70A Cast Film Making Machine Pallet Stretch Film

1.Cast Stretch Film structure:A/B or A/B/A Co-extruded

2.Equality percent of thickness:≤±5%

3.Width of effective film of LLDPE Extrusion Stretch Wrapping Film Unit:1000mm or 2*500mm(max) ;

4.;Thickness adjustment scope of this LLDPE Extrusion Stretch Wrapping Film Line :10µm-50µm;

5.Line speed: 120m/min

6.Extrusion Capacity(max) of this LLDPE Extrusion Stretch Wrapping Film Line :135kg/h.

7.The fit material:LLDPE,LDPE, MLLDPE;

8.Installation Dimension(L*W*H) of LLDPE Extrusion Stretch Wrapping Film Line : 7*3*3.6m

9.Weight: 8T

10.Screw Diameter:  A:50mm

                                 B:70mm

11. Width of Die Head of  LLDPE Extrusion Stretch Wrapping Film Plant: 1250mm

12.L/D Ratio of Screw: 30:1

Application of the Product Produced by CL-55/70A Cast Film Making Machine Pallet Stretch Film

• The Product LLDPE stretch film produced by model CL-55/70A could be widely used in machinery packaging andmanual packaging.
• And the model CL-55/70A LLDPE Stretch film machine could also be used to produce agricultural film as well as precervative film.

Characteristic of CL-55/70A Cast Film Making Machine Pallet Stretch Film

Certificate of CL-55/70A Cast Film Making Machine Pallet Stretch Film

Packing  of CL-55/70A Cast Film Making Machine Pallet Stretch Film

Client coopration of CL-55/70A Cast Film Making Machine Pallet Stretch Film

After-Sales Service of CL-55/70A Cast Film Making Machine Pallet Stretch Film

We will respond to customer`s service requests and complaint in the shortest possible time and give a clear reply and solution to deal with in time.

Our professional engineering team is constitutive of excellent technical staff to better support the LLDPE Extrusion Stretch Wrapping Film Plant.

We offer warranty on product CL-55/70A LLDPE Extrusion Stretch Wrapping Film Plant and lifelong maintenance services.

Brand:ChangLong Machine
