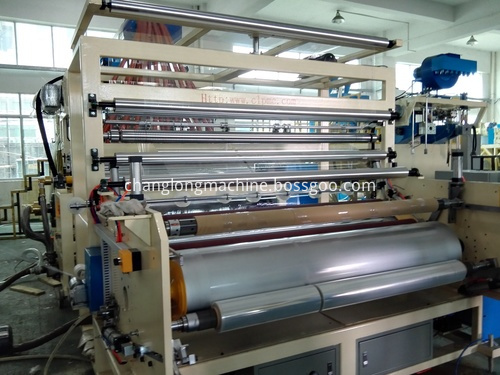

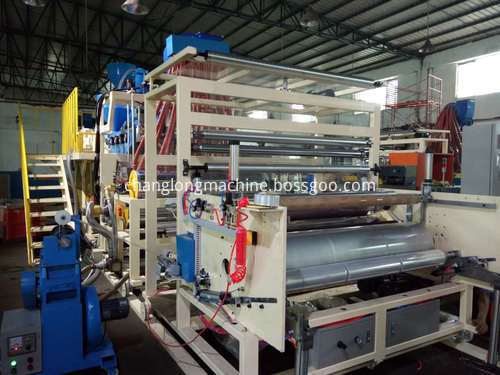

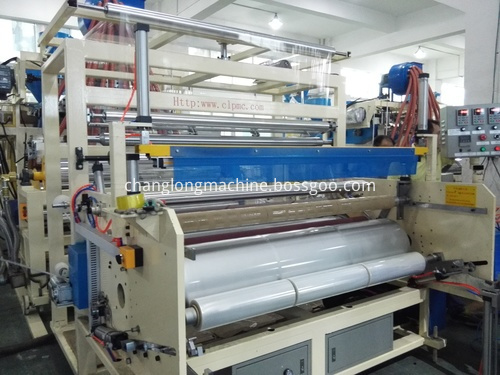

CL-65/90/65A PE Wrapping Film Making Machinery

Product Description of CL-65/90/65A PE Wrapping Film Making Machinery

Model:CL-65/90/65A

Screw Diameter:A Screw:65mm

                         B Screw:90mm

                         C Screw:65mm

Structure Of Film Layers: A/B/C Or A/C/B/C/A

Linear Speed:150m/min

Max Extrusion Capacity:250kg/h

Dimension(L*W*H):9.6m*4.6m*4.4m

Total Weight:16T

Range Of Thickness:0.01-0.05mm

Width Of Product Film: 1500mm Or 500mm*3

Raw Material: LLDPE(Mainly)

Features of CL-65/90/65A Wrapping Film Making Equipment

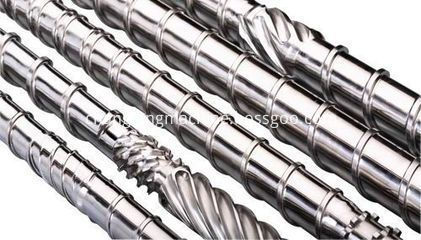

1. In order to ensure good plasticity and high quality as well as high output,the alloy screw adopted of this CL-45/65/55A LLDPE Wrapping Film Unit is processed with special mixing refining technology and high plasticity design and it also consists of import static state mixer.

2. The bi-directional loop design and helix runner inside cooling steel roller is adopted to stable the temperature of roller surface.

3.The winding roller frame of CL-45/65/55A LLDPE Wrapping Film Machine is equipped with aisle-platform. And this CL-45/65/55A LLDPE Wrapping Film Making Equipment is easy to test and adjust the thickness of film and so that the slitter could be changed without stopping the machine.

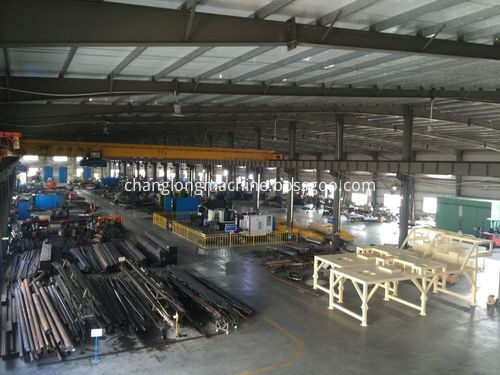

Workshop of CL-65/90/65A PE Wrapping Film Making Unit

Application of CL-65/90/65A PE Wrapping Film Making Machinery

The film produced by CL-65/90/65A PE Protective Film Machine can be widely used in pallet packaging,storage packaging, manual packaging and so on.

CERTIFICATE of CL-65/90/65A Wrapping Film Making Equipment

Service Team for CL-65/90/65A PE Wrapping Film Making Unit

The seller provides the debugging and setting  of this CL-65/90/65A PE Preservative Film Unit, Seller free to

provide about one week training but the round-trip ticket and other traveling costs should be paid by buyer.

The seller freely provides the fittings of this CL-65/90/65A PE Preservative Film Machinery during the warranty for 12 months when the equipment is tested OK. (Human factor and force irresistant factor exception.)
