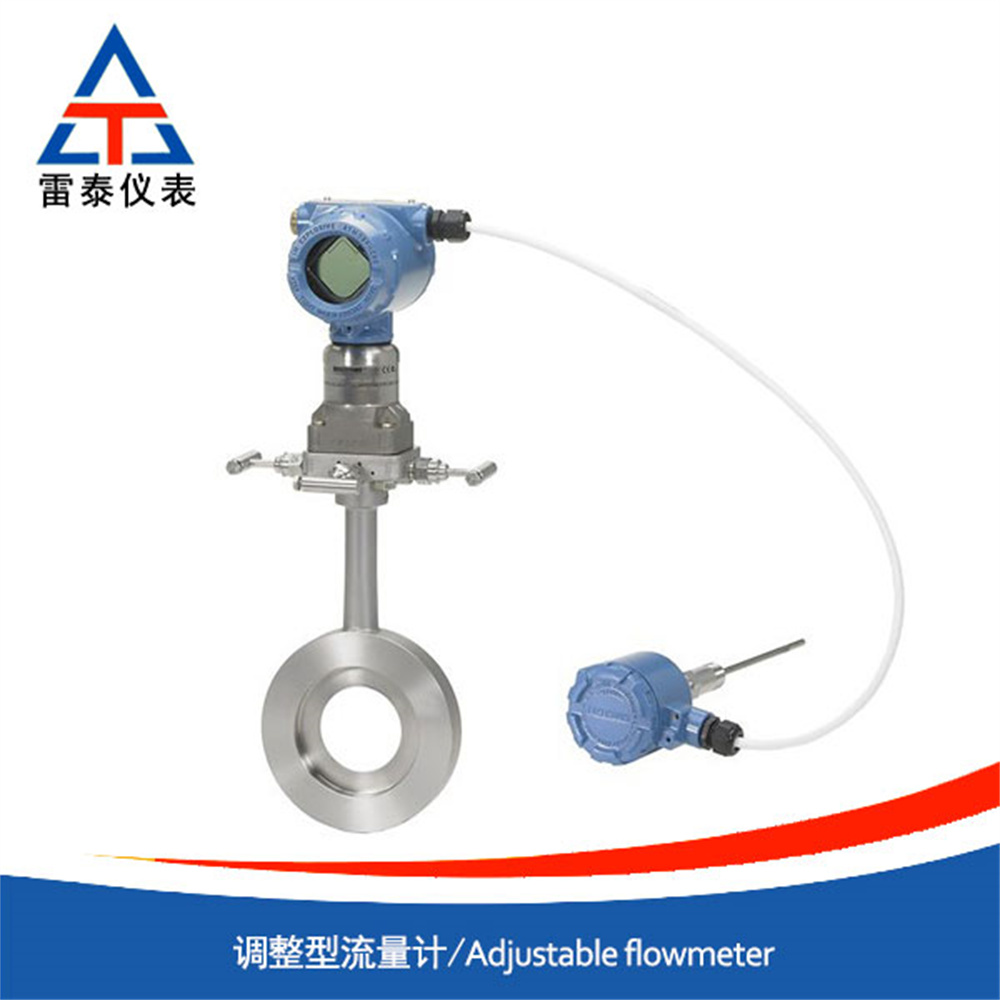

Balanced Adjustment Type Flowmeter

Adjustable flow rate meter Balanced adjustable flow rate meter is a new type of adjustable flow rate sensor based on the international standard hole plate GB2624. Perforated plate flow metering equipment is available for various types of movement, providing the shortest straight pipe installation and outstanding performance.

Perforated plate flow metering principle:
The perforated plate also has different flow rate tables, its working principle and other different flow rate meters, and the capacity change in the sealed pipe route.
Under the ideal fluid situation, the flow rate in the pipe is the square root of the square root ratio; The perforated plate flow rate sensor is a perforated rectifier, which is installed on the plane of the pipe, when the fluid perforates the perforated rectifier hole, the fluid is balanced by vapor, the flow is minimized, and the approximate ideal fluid is passed through. The sampling device, the available fixed differential signal, the basic calculation method for calculating the flow rate, the quality flow rate.

Perforated plate flow meter (equilibrium flow meter) selection type required number:
1. Pipe diameter: pipe diameter, wall thickness
2.Weighing quality
3, Service temperature (°C)
4. Service force (MPa): Maximum force, normal force, minimum force
5, Service flow rate (Nm3/h): maximum, minimum, normal flow rate
6, Mechanical viscosity (mPa.S)
7, Care density (kg/m3)
8. Picking method
