Naipu AHF froth pump C2036HS1R55 frame plate liner
Horizontal Froth Slurry pump spare parts-- Frame Plater Liner
Slurry pump Cover plate liner part code: B1017, B15017, C2017, D3017, E4018, F6018, G8018, G10018, G12018, H14018...
C2036HS1
rubber liner, froth pump rubber parts, AHF pump liner, froth pump back liner, froth pump rubber spare parts, naipu rubber parts

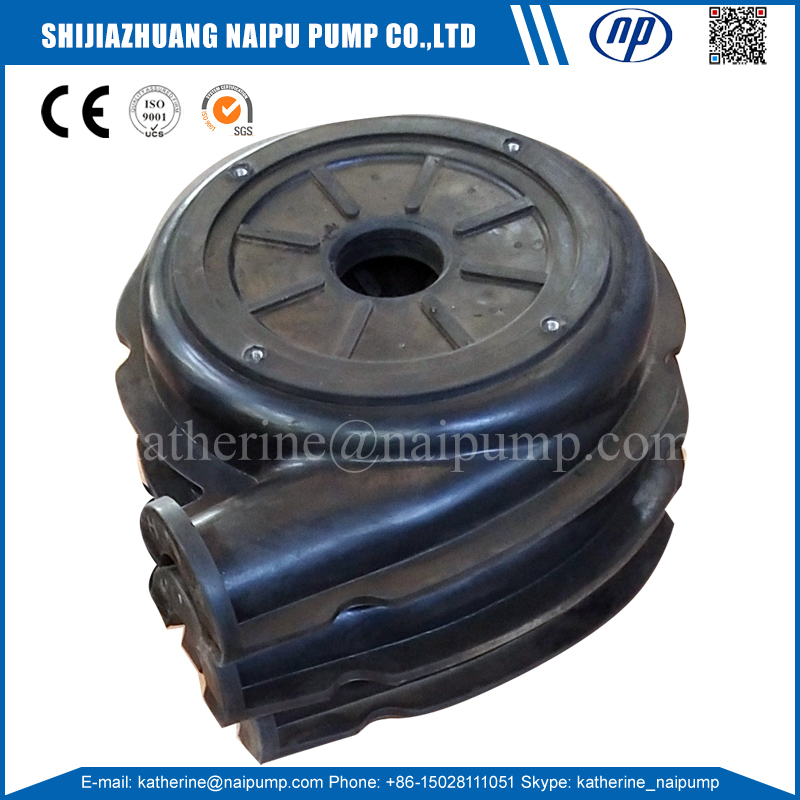

2AHF Horizontal Froth Pump Liner.
Cover Plate Liner : CAHF2017
Frame Plate Liner : CAHF2036

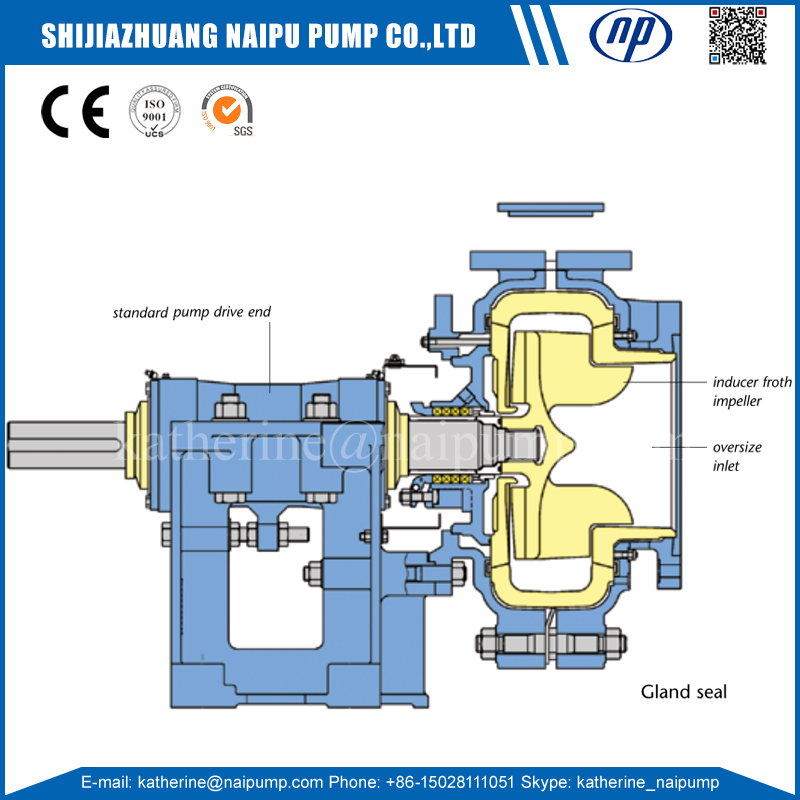

Horizontal froth pumps are heavy duty horizontal pumps designed to
handle difficult tenacious froth.
The problem of handling froth in some process circuits can be very frustrating. Froth often will air bind a pump. The froth inducer blade impeller is designed to solve this problem, through less surging and higher efficiencies from smaller pumps.
An additional benefit of this froth impeller design and oversized inlet is that it raises the solids concentration limits that a centrifugal pump can handle. As the main problem of handling froth is similar to that of handling viscous slurries - namely, getting the slurry into the pump so it can be pumped - this pump has proven to be a high performer in dense media viscous slurries. Additionally, flow surging problems common to other centrifugal pump designs at low flows are eliminated for viscous slurries.

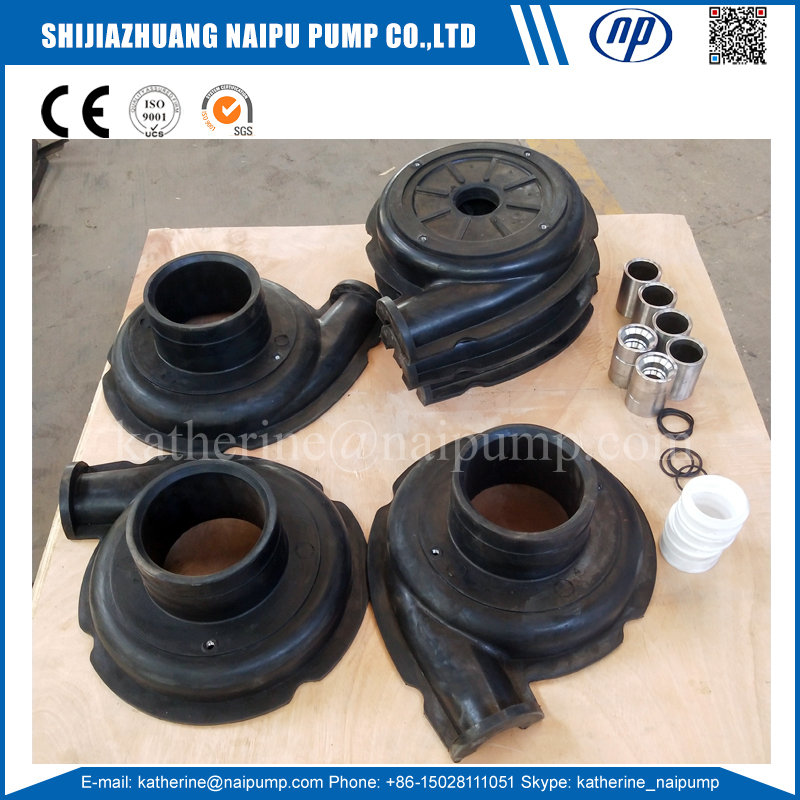

Rubber Slurry Pump Parts
The Slurry Pump Polyurethane Impeller design is crucial as it influences flow patterns and ultimately, wear rates throughout the pump. The number of impeller vanes usually varies between three and six depending on the size of the particles in the slurry.
Most slurry pump casings are [slower" than their water pump cousins, primarily to reduce wear though lower internal velocities. Slurry Pump Parts including many types. Such as Slurry Pump Polyurethane Throatbush and Slurry Pump Polyurethane Back Liner, which replaceable with standard metal and rubber liners.
Horizontal Centrifual Slurry Pump Parts
032: Frame Plate
060: Intake Joint
132: Discharge Joint
083: Throatbush
110: Volute Liner
147: Impeller
122: Stuffing Box Seal
036: Frame Plate Liner
013: Cover Plate
018: Cover Plate Liner
124: Volute Liner Seal
041: Frame Plate Liner Insert
Q1. How to garanty the slurry pump and spares quality?
A: All our pump and spare parts pass ISO 9001:2008 and CE certificate. Warranty time is 12 month except wet end parts.
Q2. What information should be known if I want to get a quotation?
A: Pump working conditions, Usage, Pump Capacity, pump Head, Slurry SG, The More the Better. Please offer me the type of the used pump that working now.
Q3. Naipu pump company product range?
A: Centrifugal pump, Slurry pump, Sand pump, Gravel pump, Dredging pump, Clean water pump, Sewage pump, Chemical pump, Single stage pump, Double suction pump, Industry pump, Paper pulp pump, Mud pump, Sludge pump, etc
Q4. Delivery time:
A: For the Common Slurry pump and spare parts , the delivery time within 7-15 days. Special material and OEM production is longer.
Any question please contact Katherine Hou freely.
