UL1581 wire and cable burning test chamber

Dongguan BST Instrument Technology Co., Ltd. has been specialized in physical property testing of engineering plastics for 13 years, focusing on plastic material mechanics, melt flow index tester, impact testing, tensile strength testing and  thermal deformation vicat, stability testing chamber, moisture meter, aging testing, flame retardant and other performance testing.

UL1581Wire and Cable Burning Test Machine

Model: BST-UL1581

A.    Product Introduction

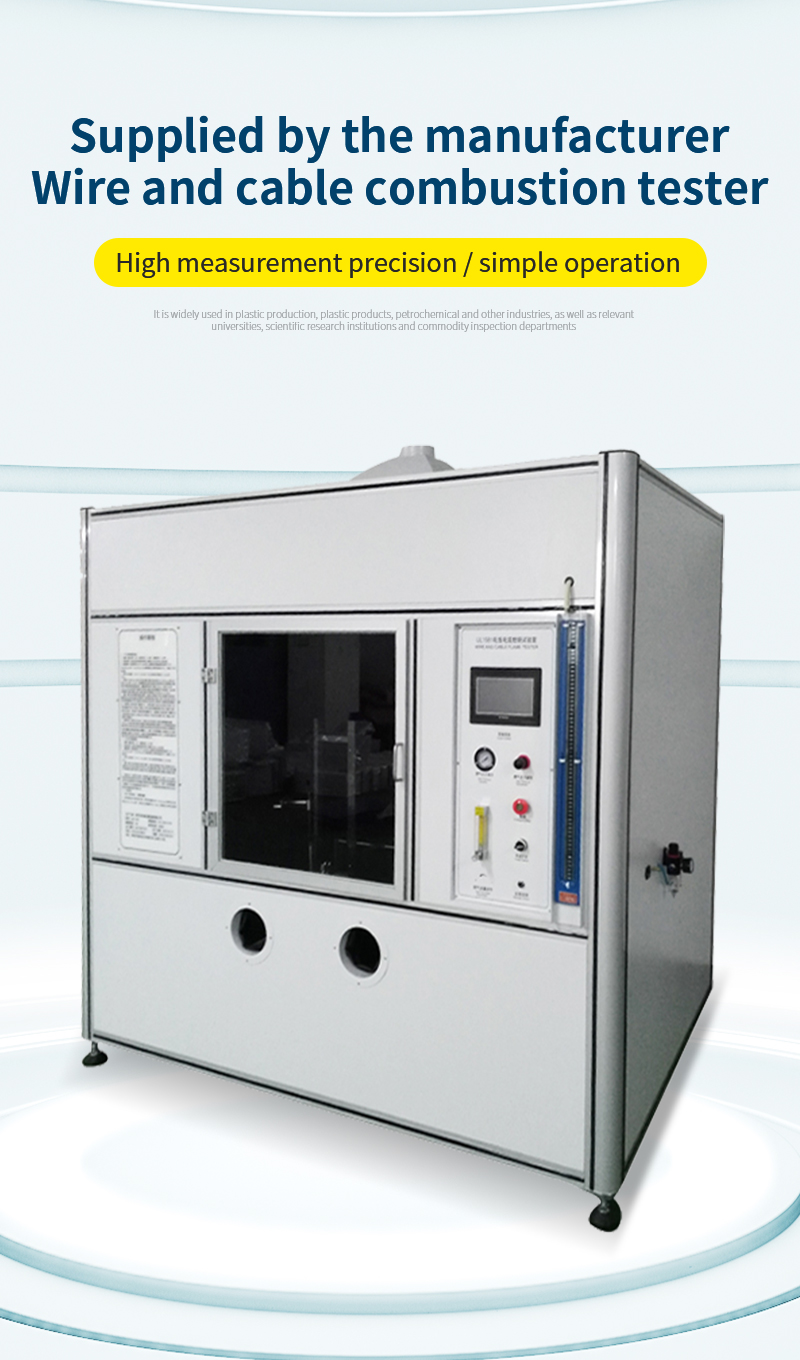

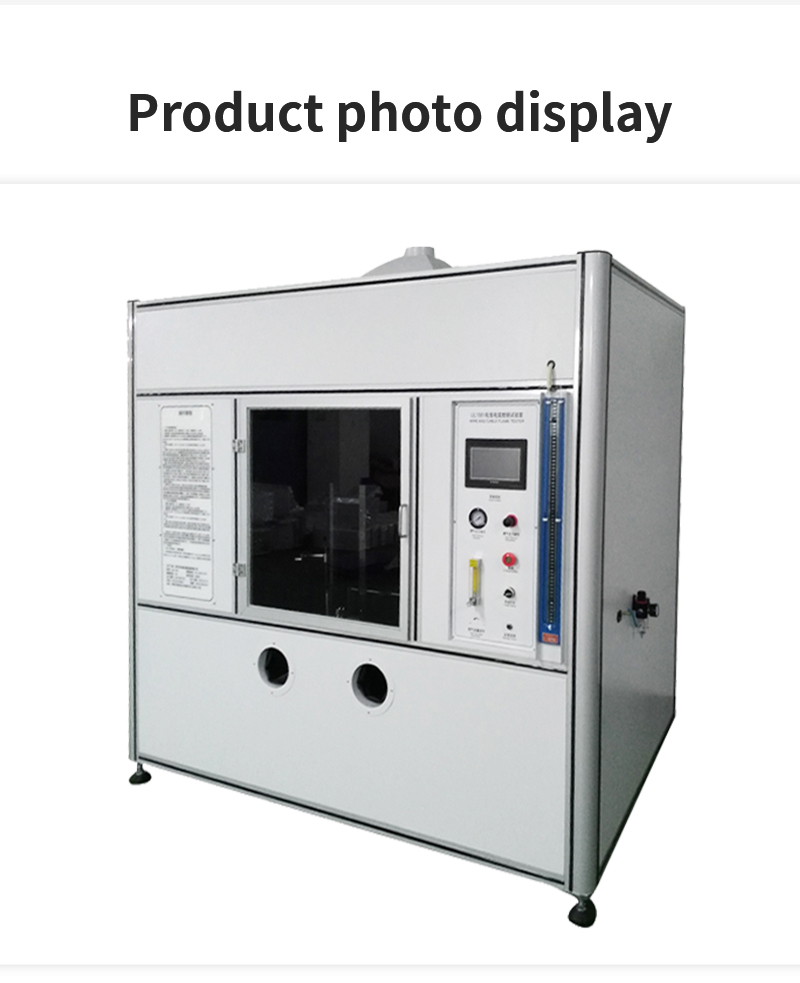

GC-UL1581 wire and cable burning tester is used to evaluate the flame retardant performance of the insulation layer of UL standard wires and IEC standard plastic pipes.The test chamber consists of a 4 cubic meter combustion chamber, operation module, model control, test frame, pressure gauge, flow meter, differential pressure gauge, combustion torch, solenoid valve, igniter, gas pipe, gas source, etc. Flame retardant testing machine includes UL94 horizontal and vertical combustion testing machine, hot wire testing machine, needle flame testing machine, leakage mark testing machine, automotive interior combustion testing machine, etc. It has high precision, stability and reliability, automatic ignition, stop burning time, burning time, number of burning and temperature adjustment function, etc.; flame temperature and test time digital display, and the burning situation can be observed through tempered glass.

B.     Test Standards

Section 1060: Vertical combustion and FT1 test

Section 1061: Cable flame

Section 1080: VW-1 flame test

Section 1100: Horizontal test/FT2 combustion test

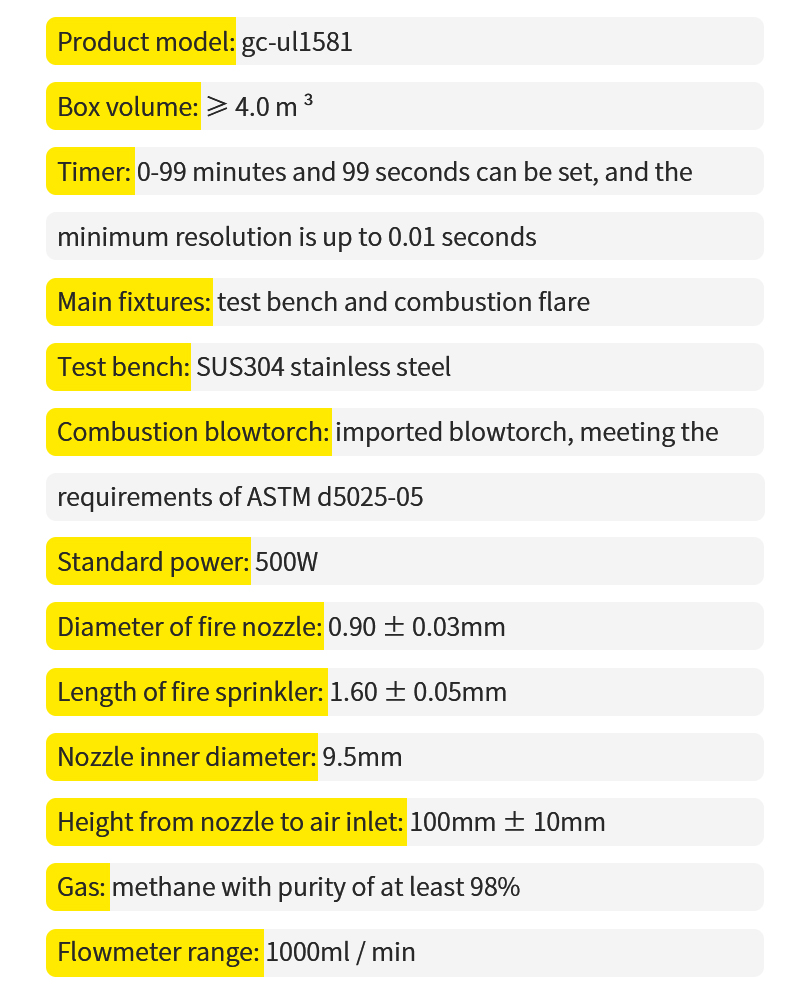

C.    Specifications
