Product details

Specifications

Aperture	F1.8	Working Temperature	-40℃~80℃
Brand Name	SANAN	Model	SA-MR16T
Warranty	1 Year	Cable Length	15M
Weight	2.5kg	Dimensions (W x H x D)	403015cm
Input/Output	4PIN Connector	Power Source	Corded Electric
Data Storage Capacity	128GB	Built-in Screen	YES
Loop-Cycle Recording Feature	YES	Audio Recorded	YES
Maximum Video Frame Rate	30	NightShot Function	YES
Rear Camera	none	Display	IPS
Battery Life	24	Original Package	YES
Camera	2CH AHD Cameras	Driving Recording	Support
Parking Recording	24 Hours parking monitoring	System Control	Touch Control
Screen Resolution	1920*720	Screen Type	AHD IPS Touch Screen
DVR Function	Build in DVR	Camera type	1920X1080P AHD Camera
Fit for	9-36V cars/ truck/ bus/ RV/ Vans/ Trailer	Camera composition	Front view, rear view, Side view
Fit 1	Vehicle camera Monitor	Fit 2	Vehicle Camera Systems
Fit 3	Driving/ Parking video recorder	Fit 4	Electronic rearview mirror
Night Vision	Super Starlight Color Night Vision	Support Camera	1080P/ 720P (25fps), 1080P/ 720P (30fps)
Waterproof	IP68 Waterproof	AHD Module	PAL, NTSC
Max External Memory	128G	Certification	FCC,RoHS
Number Of Lenses	2	Imaging Sensor	Sony IMX335
Pixels	200Mega	Display Size	12.3inch
GPS logger	none	Interface	AV-In,AV-Out,Micro SD/TF
Battery	None	Assembly Mode	REARVIEW MIRROR
Chipset Manufacturer	Allwinner	Frames Per Second	30
Origin	Mainland China	Item Type	Car DVR
Touch Screen	YES	Memory Card Required Reding Speed	Class 10
View angle	150°	Camera Resolution	1920x1080
Video Code	H.265	Video Format	MP4
Special Features	Display Rotate,sd/mmc card,With Rearview Mirror,Anti Surge Voltage Impact,waterproof,Anti Fog,Anti Vibration,Real Time Surveillance,Automatic White Balance,Wide Dynamic Range,Voice Control,Parking Monitor,3D DNR
OSD Language	Chinese (Simplified),English,FRENCH,german,Italian,japanese,KOREAN,Russian,Spanish

Description

NOTE: If you buy the monitor only, please note that the monitor support AHD 1080P PAL/ NTSC, 720P PAL/ NTSC cameras, and the cameras and cables is not included! We recommend you buy a complete set. You can choose left side dual-lens camera or right side dual-lens camera.

Why Choose Electronic Rearview Mirror?

The electronic rearview mirror system integrates the functions of vehicle DVR and camera monitoring. It supports a larger viewing angle, higher night vision sensitivity, and is easier to adapt to complex weather conditions, which means broader and clearer side vision and more professional in safeguarding driving safety than traditional rear-view mirrors.

SA-MR16Tdetail_02

Suit for all 9V-36V Voltage vehicles

Support 9V-36V wide Voltage, really an ideal system for commercial vehicle surveillance, suitable for big trucks, buses,Vans, trailers, work cars, etc.

Easy installation of DVR system

Standard Power Line Connection:
1. Connect red line to positive pole (+) of ACC power.
2. Connect yellow line to positive pole (+) of vehicle battery.
3. Connect black line to negative pole (-) of vehicle battery.
Standard Camera Connection:
1.Connect CH1 to side rear camera.
2.Connect CH2 to side down camera.
3.Connect CH3 to rear view camera or 360 camera. (Must be AHD 720P PAL Cams)
Standard Trigger Line Connection:
1. Connect white trigger line to the positive pole (+) of left or right turn signal light.
2. Connect green trigger line to the positive pole (+) of reversing signal light.
3. Connect purple line to the 360 control host.

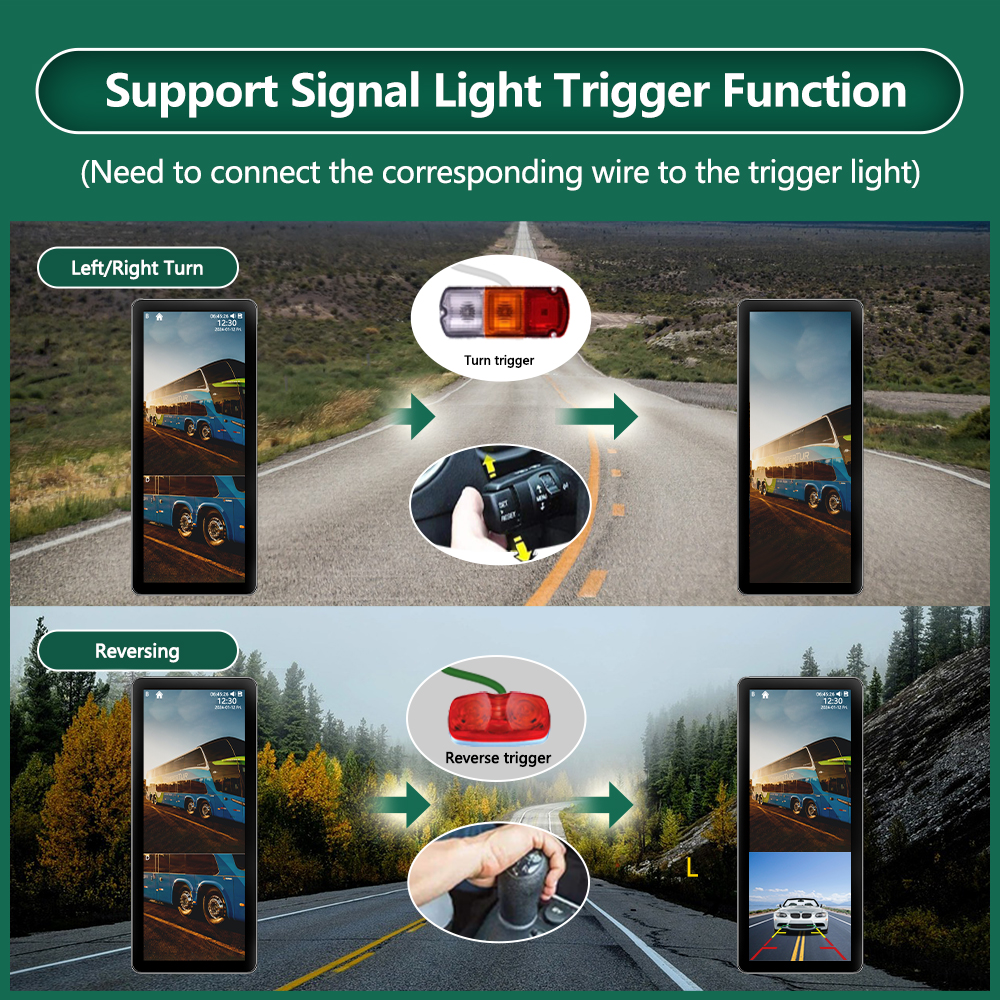

Support Signal Light Trigger Function

Connect with trigger wire, the split image will automatically switch over to the corresponding camera as an independent image when detecting the signal of turning left/right or reversing.

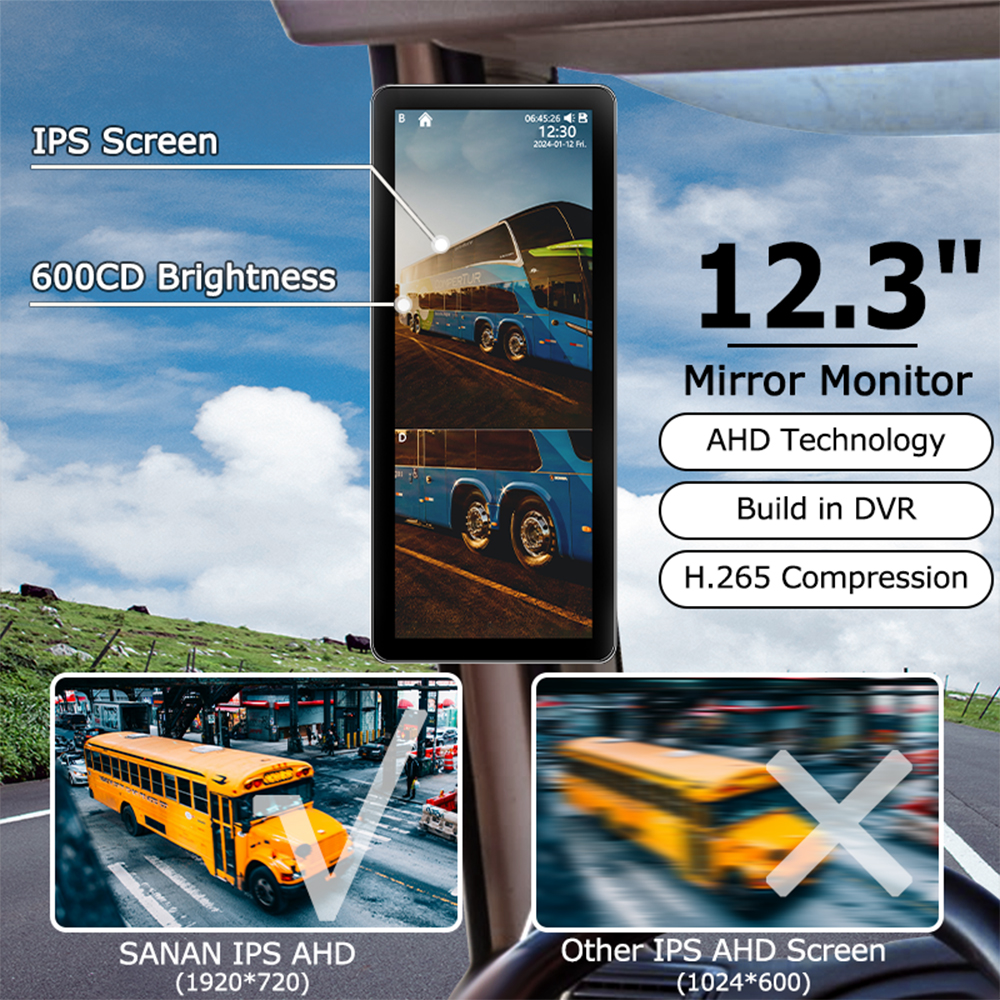

12.3 inch IPS Touch Screen

Mirror monitor adopt 12.3 inch HD IPS screen, excellent 178° full-view display technology, 1920x720 resolution and 600CD brightness, which is more excellent than other kinds of monitor in color accuracy and screen consistency. Touch operation, making menu settings more convenient and faster.

Product Display

Left Camera Monitor Kit Package:

1. 1x Dual-lens left camera
2. 1x Mirror monitor
3. 1x Video & Power cable
4. 1x Bracket
5. 2x 5 meters extension cables

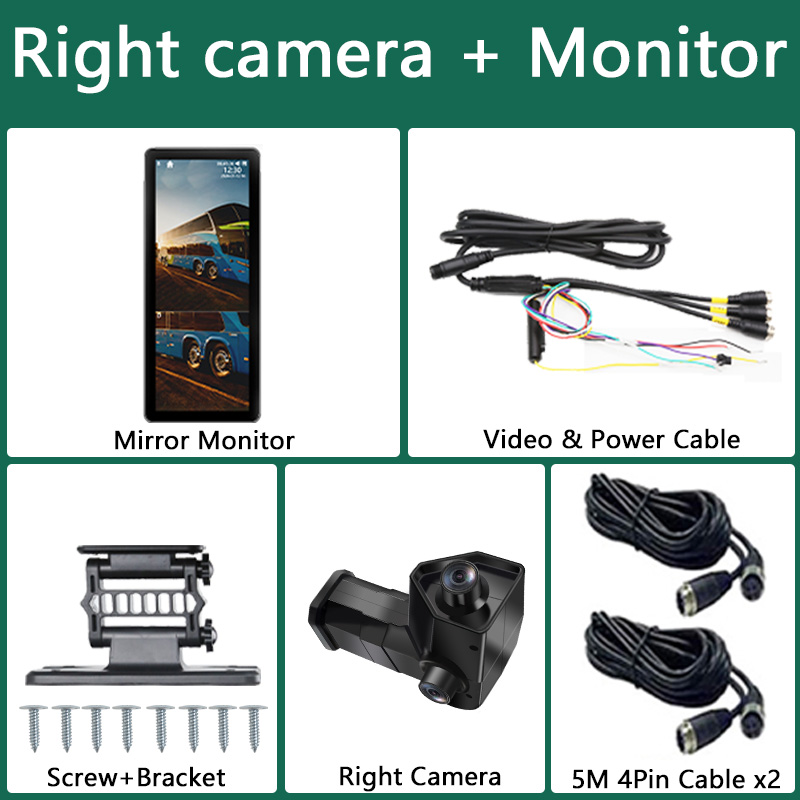

Right Camera Monitor Kit Package:

1. 1x Dual-lens right camera
2. 1x Mirror monitor
3. 1x Video & Power cable
4. 1x Bracket
5. 2x 5 meters extension cables
