Coating machine test

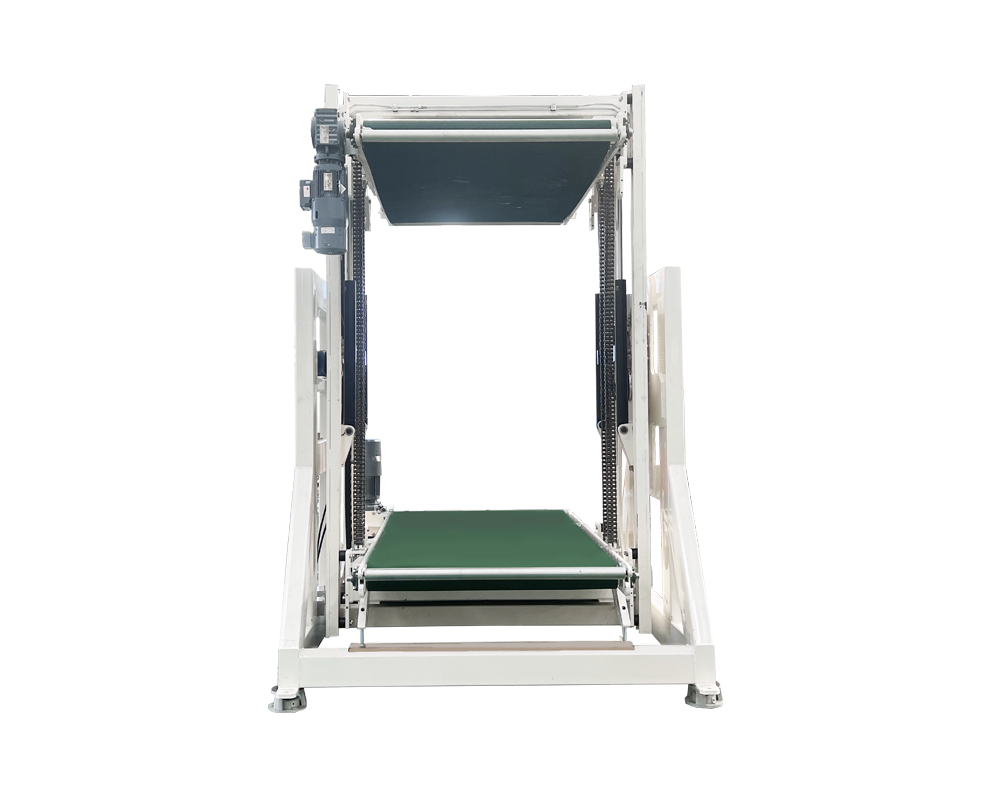

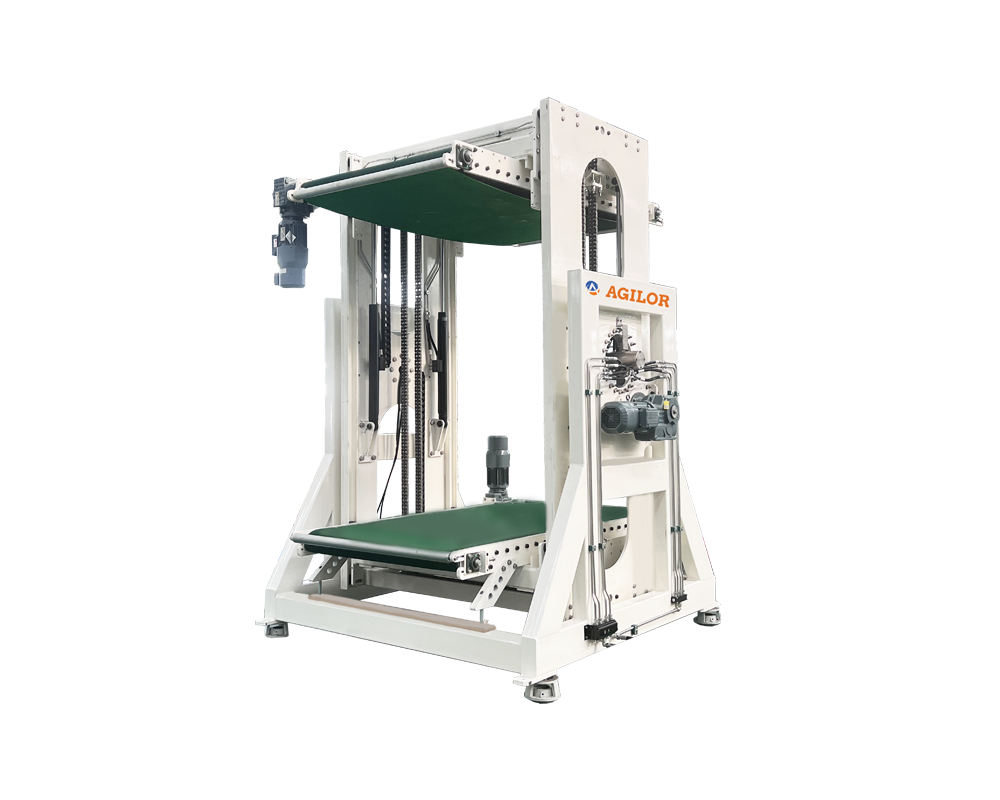

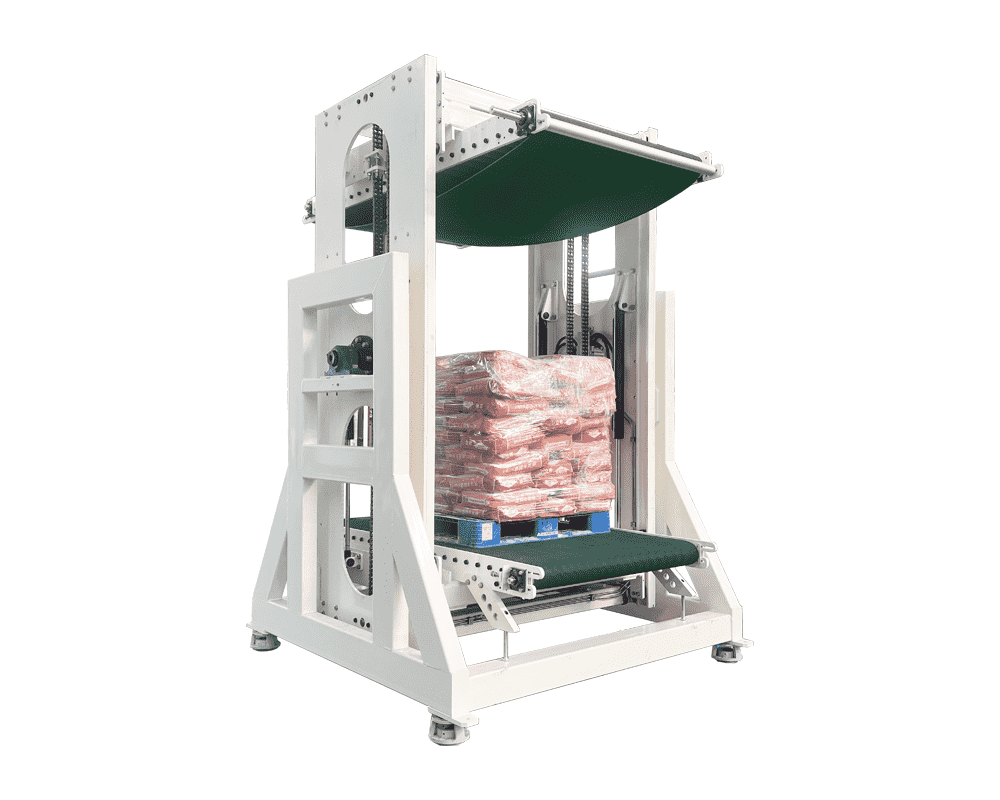

The invention relates to a turning-over conveying device for a sheath packaging machine, which comprises a frame, a turning-over frame, a rotating mechanism capable of driving a turning-over frame to rotate, two clamping frames, and an opening and closing mechanism capable of driving two clamping frames to move opposite or back to each other; The rotating mechanism is installed on the frame, the rotating axis of the turning frame is arranged in the horizontal direction, and the opening and closing mechanism is installed on the turning frame. The two clamping frames can be relatively sliding installed on the turning frame and are respectively on both sides of the rotating axis of the turning frame. The sliding direction of the clamping frame is perpendicular to the rotating axis of the turning frame. The two gripper frames are respectively installed with a conveying mechanism, which has a conveying surface parallel to the rotating axis of the turnover frame, and the conveying surface of the two conveying mechanisms is relatively arranged and parallel to each other.

This flipping conveying device can achieve 180 degrees of material flipping and conveying, so as to facilitate the double bidirectional encapsulation of the envelope packaging machine, so that the upper and lower ends of the stacking items are well sealed, which can effectively improve the quality of the envelope packaging.Suitable for food packaging, chemical packaging, powder packaging and so on.
