PWM type wireless controller

Transmit Rate: An impressive 38400 bit/s ensures swift and reliable data communication.
Transmit Power: A powerful <=22dBm for robust signal strength.
Adjacent channel rejection: Outstanding at -60dBm, minimizing interference.
Modulation mode: Versatile LoRa/GFSK for seamless communication adaptability.
Receive sensitivity: Exceptional at -126dBm, capturing even the faintest signals.
Real-time property: Dual CPU real-time control for unmatched precision and responsiveness.
Dedicated address code: Secure 16-bit for reliable and unique identification.
Control distance: Extensive range of >100m for versatile application coverage.
Transmitter form: Ergonomic joysticks for intuitive control.
Transmitter power supply: 3.7 VDC with 50000mAh Li-ion battery for extended use.
Transmitter working current: Efficiently under 100 mA for optimal energy use.
Transmitter low voltage: Indicator at 2.8VDC for timely power management.
Transmitter fault alarm: Alerts via screen, beeper, or LED ensure operational awareness.
Transmitter antenna: Choose between built-in or external for flexibility.
Transmitter screen (optional): TFT with vivid 320*240 resolution for clear visuals.
Receiver Power: Operates efficiently from 10-30V DC.
Receiver rated power: Economical usage at <=6W.
Receiver fault display: LED indicators for instant troubleshooting.
Output contact capacity: Robust 5A/250VAC to handle demanding tasks.
Output interface: Choose between water-resistant contact or heavy-duty plug-ins.
Receiver antenna: External for enhanced performance and range.

Standard Accessories

One AC-DC charger: Reliable power replenishment for continuous operation.
One on-board charger: Convenient for charging on the go.
One USB-TypeC charging cable: Fast and versatile charging solution.
Two Li-ion batteries: High-capacity and long-lasting for extended use.
Two receiver antennas: Ensures consistent performance and connectivity.
One waterproof connector cable: Durable and reliable in various conditions.
One shoulder strap: Comfortable portability for on-the-move operations.
One instruction manual: Comprehensive guidance for seamless setup and use.
One certificate: Assurance of quality and compliance with industry standards.
One output schematic: Invaluable reference for installation and troubleshooting.

Structural Parameter

Transmitter weight: 1.05kg without battery for a lightweight design.
Transmitter dimension: Compact 257mm*119*151mm (L*W*H) for ergonomic handling.
Transmitter housing material: Durable engineering plastic for longevity.
Receiver weight: 0.8kg, minimal weight for easy installation and use.
Receiver dimension: Space-efficient 215mm*172mm*71mm (L*W*H) for versatile placement.
Receiver mounting aperture: Precise Φ6mm for secure and stable attachment.
Receiver shell material: High-quality engineering plastic for robust protection.
Working temperature: Operates competently between -40ºC to 80ºC.
Working humidity: Resilient performance in environments from 0-97%RH.
Protection: Rated IOP65 for reliable dust and water resistance.

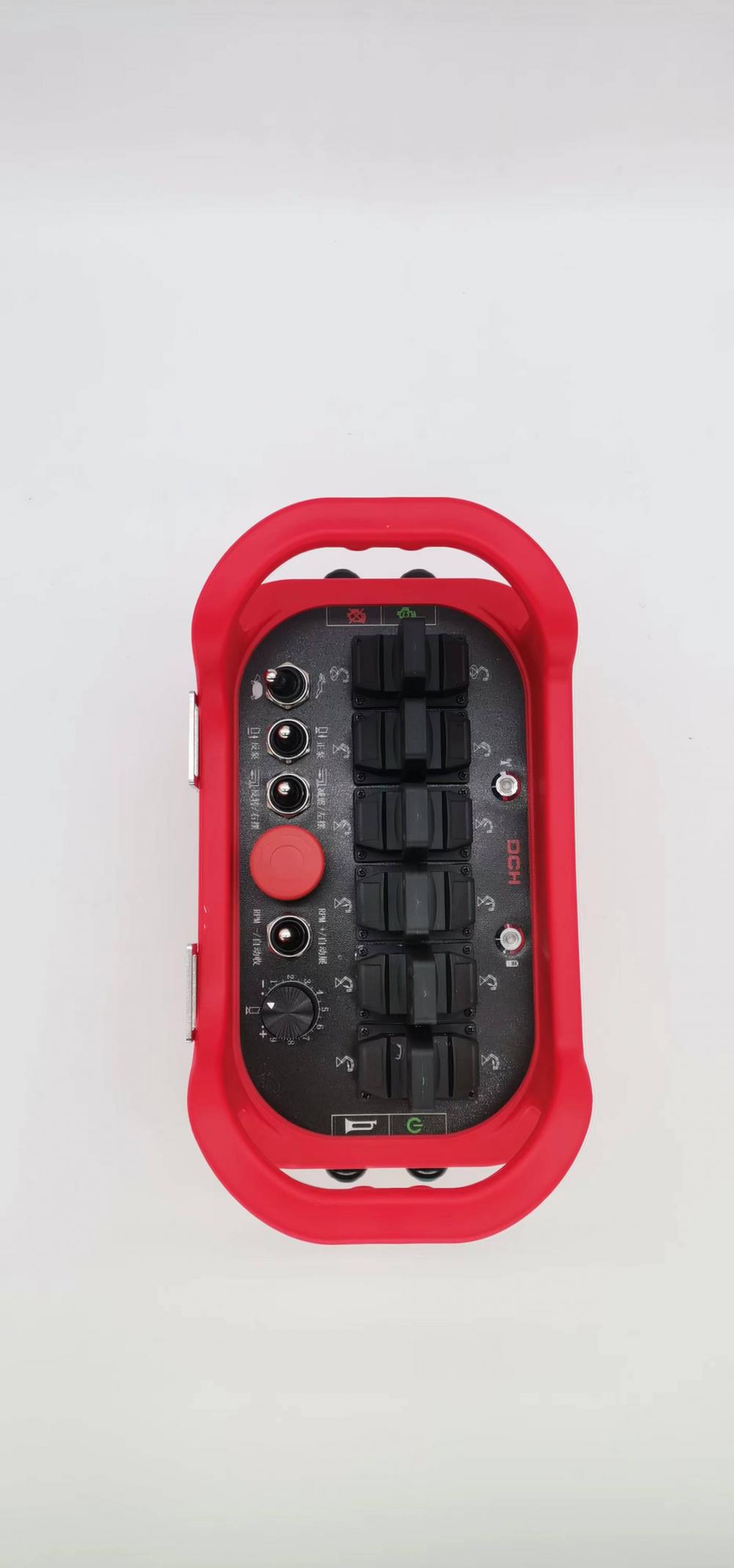

Detailed Photos
