MF-Y-25 dust collector solenoid valve
2 year ago
1" BFEC MF-Y-25 Dust Collector Embedded Remote Pilot Pulse Jet Valve For Dust Collector
Product introduction
The MF-Y-25 SBFEC Type pulse valve is an embedded valve ( also called submerged pulse valves) installed directly on the combiner box. It has a special valve diaphragm design and can be connected to other systems with different accessories, such as filters, safety devices, etc. It has 1" port size, 25mm orifice size, pressure range from 0.1 t0 0.8 MPa. This vlave is usually used in dust removal system, dust collector, bag filters, ceramic filters, etc.

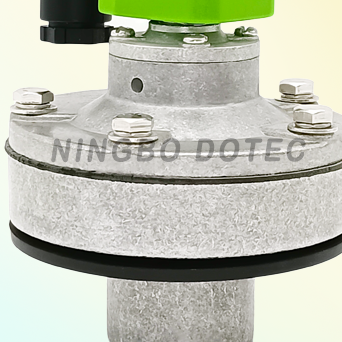

Aluminum valve body
The body of MF-Y-25 is made of aluminum (diecast), which has low resistance and good circulation. It expands the use range of pressure and provides the best flow performance.
Wide application
This vlave is mostly used in dust removal system, clean filters system, dust collector, bag filters, sintered matal fiber filters, ceramic filters, etc. And it can be used with different pipe size and materials for a wide range of applications.
Pay Attention:
◆ Please check whether the product is intact before use
◆ Please confirm that the installation conditions are in accordance with the specifications
◆ Please use in a stable environment
◆ Pay attention to clean up dust and other things that affect operation
Main technical parameters
|
Integral Pilot |
DMF-Y-25 |
DMF-Y-40S |
DMF-Y-50S |
DMF-Y-62S |
DMF-Y-76S |
DMF-YA-76S |
DMF-YB-76S |
DMF-Y-102S |
DMF-Y-102SA |
DMF-Y-102SE |
|
Remote Pilot |
MF-Y-25 |
MF-Y-40S |
MF-Y-50S |
MF-Y-62S |
MF-Y-76S |
MF-YA-76S |
MF-YB-76S |
MF-Y-102S |
MF-Y-102SA |
MF-Y-102SE |
|
Port Size |
1'' |
1-1/2'' |
2'' |
2-1/2'' |
3'' |
3'' |
3'' |
4'' |
4'' |
4'' |
|
Orifice Size (mm) |
25 |
40 |
50 |
62 |
76 |
76 |
76 |
102 |
102 |
102 |
|
Diaphragm Number |
1 |
2 |
||||||||
|
Pressure Range |
0.1 to 0.8 MPa |
|||||||||
|
Diaphragm Material |
NBR, VITON |
|||||||||
|
Body Material |
Aluminum ( diecast ) |
|||||||||
|
Voltage |
24VDC, 24VAC, 110VAC, 220VAC |
|||||||||

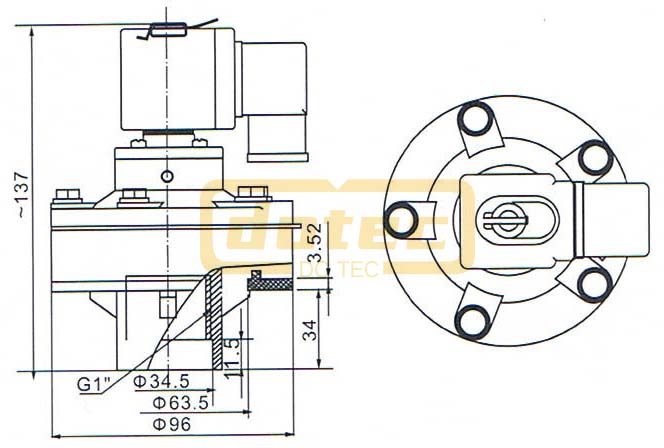

MF-Y-25 Dimension
