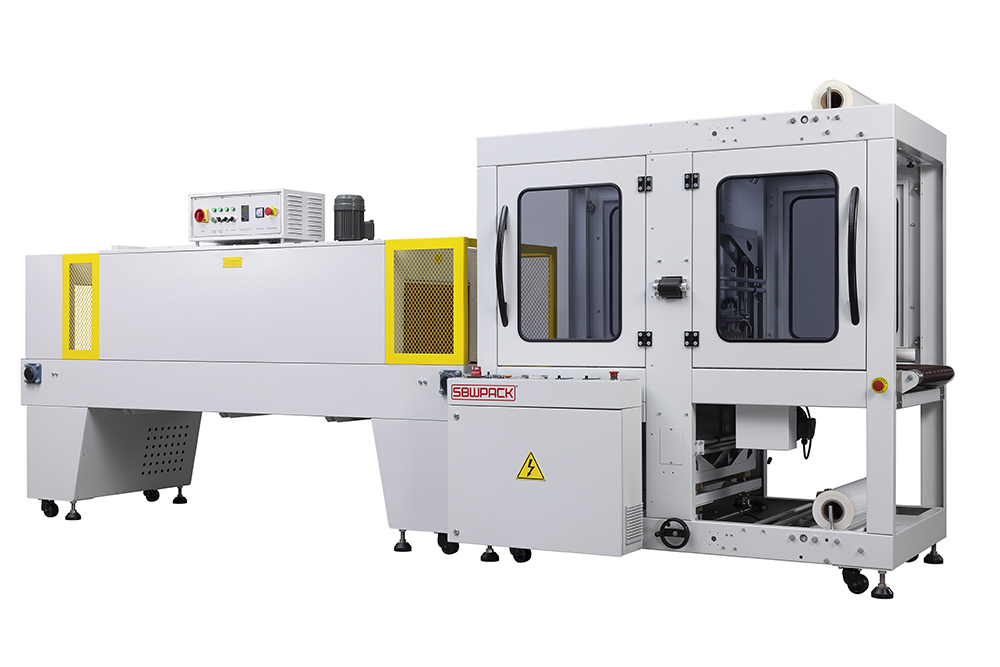

SBWPACK Inline Feeding Sleeve Wrapper Machine
Inline Feeding Sleeve Wrapper Technical Features
Auto in-line feeding, suitable for sleeve wrapping trayed products, cartons, single or in groups, at high speed.
Versatile in packing size, three-blade design, seams tight and strong
Sealing jaw openess adjustable to ensure the welding line at the center of the product.
Shrink Tunnel Technical Features
Stainless heating tubes and strong blowing motor ensure high heating efficiency, large air volume and uniform air circulation.
Solid metal rods wrapped by heat-resistance silicone tubes make the conveyor rollers strong and resilient.
Automatic Sleeve Wrapping Series Optionals
HMI panel safety door switch.
Stainless machine frame/customized painting.
Specific electric/pneumatic brands.
| Model | ST-6030Z |
| Machine Dimensions (mm) |
1818×1311×2132 |
|
Tunnel dimension (mm) |
/ |
| Max Packing Size (mm) |
L Unlimited×500×300 |
| Sealing Blade Size L (mm) | 700 |
| Temperature Range | 0 - 200℃ |
| Working Table Height (mm) | 850 ± 50 |
| Capacity (pcs/m) | 8 - 22 |
| N.W. (kg) | 500 |
| Power (kw) | 2 |
| Power Source | 3PH 220V/380V 50/60Hz |
| Air Source (kg/cm²) | 6 - 8 |
|
Applicable Film |
PE |
