1000l extrusion blow molding machine
2 year ago
Product details

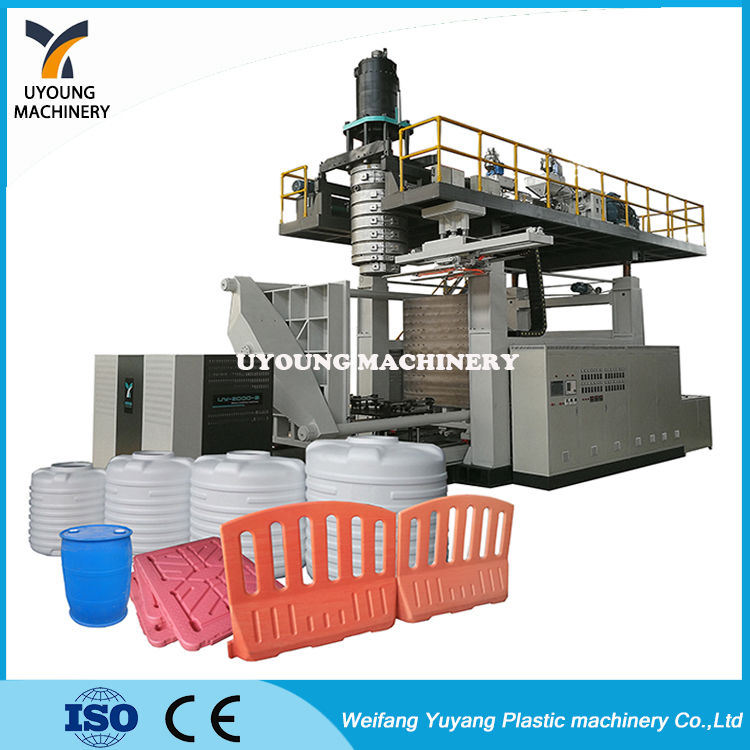

The fully automatic water tank blow molding machine can produce water tanks from 200 liters to 1000 liters and from 1 to 6 layers. Advantages of Blow Molding
Low tool and mold costs
Fast production speed
Ability to mold complex parts
Grips can be included in the design
The process begins by melting the plastic into a parison, or in the case of injection and injection stretch blow molding, a preform. The parison is a tubular piece of plastic with a hole at one end through which compressed air can pass.
The parison is then clamped into a mold and air is blown in. The air pressure pushes the plastic out to fit the mold. After the plastic cools and hardens, the mold opens and the part is ejected.
Blow molding is most often used to make containers, packaging, or industrial applications.
Blow Molding Machine.Blow Molding Molds.Water Tank Blow Molding Machine
Product Paramenters
|
|
|
| Model | YY-1000-6 |
| Max.product size | 200-1000L |
| Machine dimension(LxWxH) | 11*9*6.5m |
| Average power consumption | 230kw |
| Total power | 470kw |
| Die-header | |
| accumulator size | 35kg |
| Heating power | 85kw |
| Extrusion system | |
| Plasticizing capacity | 450kg/h |
| Heating power | 130kw |
| Mold clamping unit | |
| Clamping platem size | 1500*1600*60mm |
| Max mold size | 1200*1500mm |
| Clamping force | 1000kn |
| Hydraulic system | |
| Main oil pump power | 37kw |
| Small oil pump power | 7.5kw |
