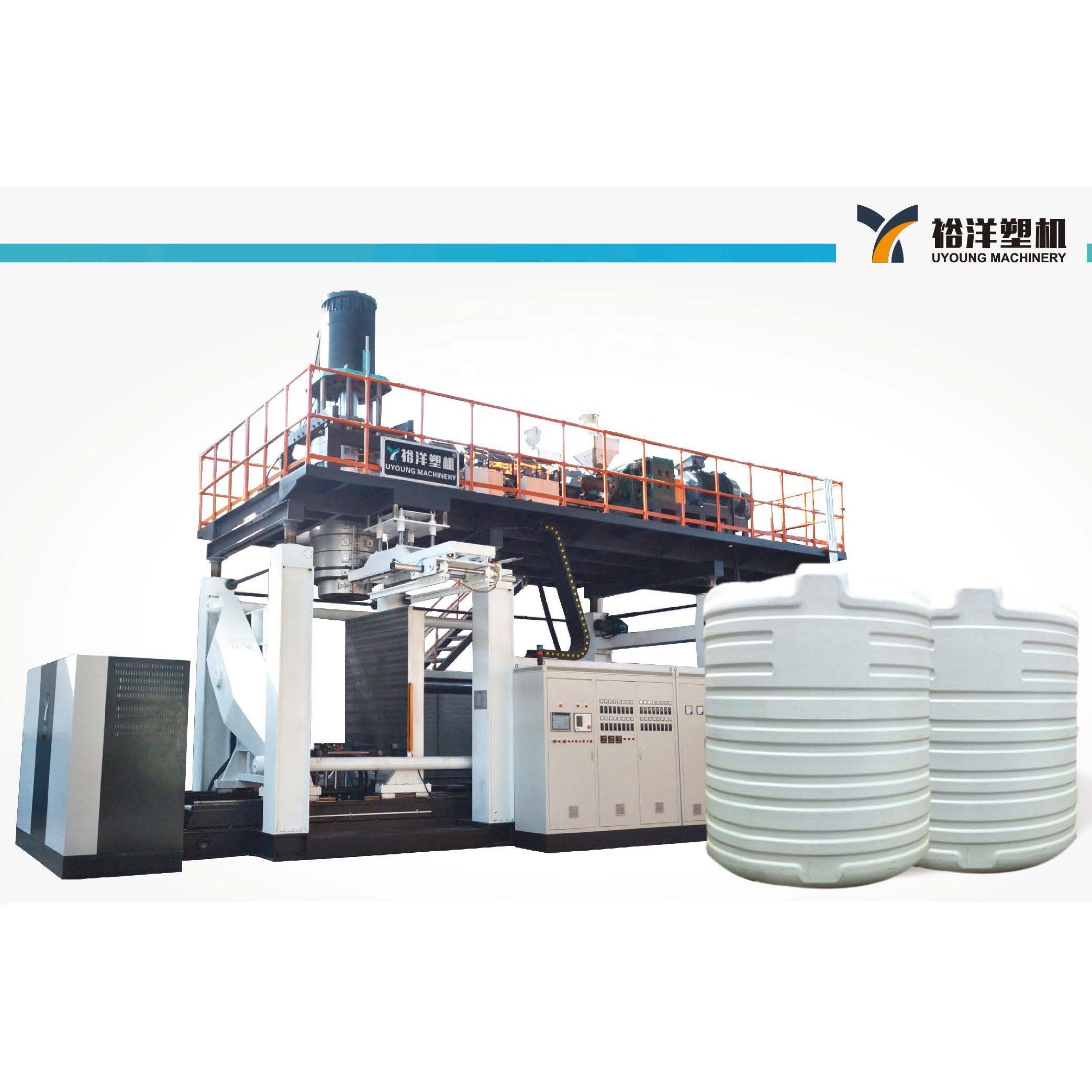

10000L large ton barrel blow molding equipment
2 year ago
The capacity of the fully automatic water tank blow molding machine is 5000 liters to 20000 liters, and it can produce 1-2 layers of water tanks. Blow molding product manufacturers should try to reduce the failure of hollow blow molding machines and improve the utilization rate of blow molding raw materials when blow molding plastic products. Therefore, it is necessary to take certain maintenance or protection measures to minimize or reduce the costly shutdown and replacement of parts and repairs; and thereby improve the quality and production efficiency of blow molding products.
We can produce more layers of products and provide machines according to customer needs and designs
Blow Molding Machine.Blow Molding Molds.Water Tank Blow Molding Machine
| Model | YY-20000-2 |
| Max.product size | 5000-20000L |
| Machine dimension(LxWxH) | 15*14*13m |
| Average power consumption | 540kw |
| Total power | 960kw |
| Die-header | |
| accumulator size | 700kg |
| Heating power | 250kw |
| Extrusion system | |
| Plasticizing capacity | 1200kg/h |
| Heating power | 150kw |
| Mold clamping unit | |
| Clamping platem size | 3500*4200*100mm |
| Max mold size | 2800*4000mm |
| Clamping force | 6000kn |
| Hydraulic system | |
| Main oil pump power | 75kw*3 |
| Small oil pump power | 22kw |
