floating dock making machine

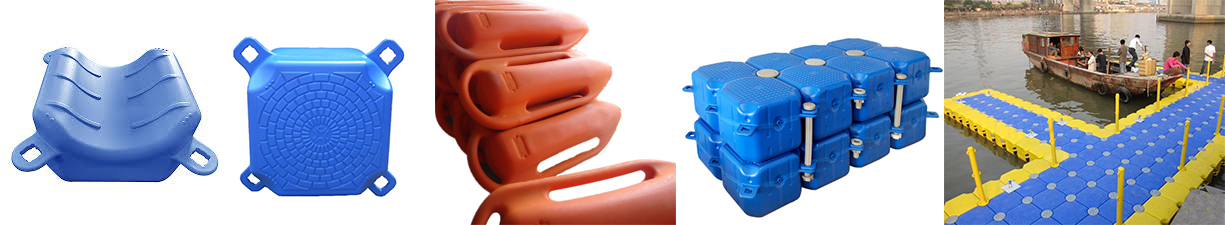

2 year agoThis is a 50L sea floating blow molding machine. It mainly produces small offshore floating equipment. There are many types of marine buoys, including anchor buoys and drifting buoys. The former includes meteorological data buoys, marine water quality monitoring buoys, wave buoys, etc.; The latter have surface drifting buoys, neutral buoys, various small drifters, etc。The upper surface of the plastic float is designed with anti-slip patterns, which is safe and stable, and the four corners are arc blunt shapes, avoiding the common dangers of cement, wood and iron facilities, such as: slipping, being stabbed by broken wood chips, embroidery nails, etc. Light weight, large buoyancy, long life, bright and beautiful color, not eroded by seawater, no pollution, no damage to the environment, no water seepage, no water storage problems, recyclable
Blow Molding Machine.Blow Molding Molds.Water Tank Blow Molding Machine
Model |
YY-50 |
Max.product size |
50L |
Machine dimension(LxWxH) |
6*3.5*3m |
Average power consumption |
66kw |
Total power |
102kw |
Die-header |
|
accumulator size |
6kg |
Heating power |
20kw |
Extrusion system |
|
Screw diameter |
90mm |
Screw L/D ratio |
25/1 |
Plasticizing capacity |
80kg/h |
Heating power |
22kw |
Mold clamping unit |
|
Clamping platem size | 700*800*60mm |
Max mold size |
500*600m |
Clamping force |
300kn |
Hydraulic system |
|
Main oil pump power |
22kw |
Small oil pump power |
5.5kw |
Oil tank capacity |
800L |
