Injection Mold Machining

180° elbow mould plastic injection mold making, professional manufacturer of injection molding, molds can be customized on demand. When forming a curved plastic elbow, the difficulty of forming has a lot to do with the bending length, bending degree and pipe diameter of the elbow. The longer bending length, the greater bending degree (that is, the smaller arc centerline radius of the elbow arc, or the longer arc centerline length of the arc). And the smaller diameter of the elbow, will be more more difficult to form which means the mold mechanism and mold structure design will be more difficult. As far as the degree of bending is concerned, the arc centerline length of the elbow becomes longer, the demoulding mechanism of the inner wall of the pipe becomes more complicated.

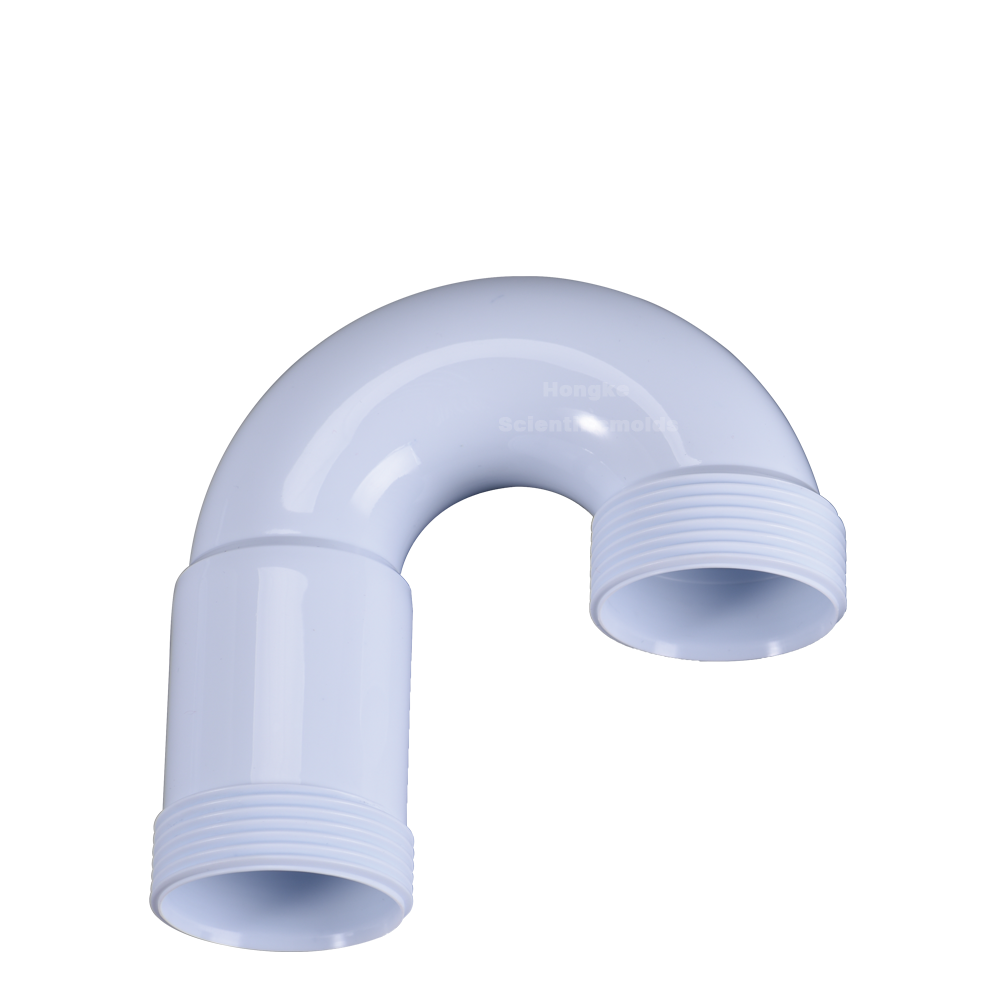

Mould Name:  180°Elbow Plastic Injection Mold

Mould Insert Steel:  S136

Runner:  Cold Runner

Gate Way:  Fan Gate

Surface Finish:  Polished

Part Material:  PP

Mould Cavity: 1*1 Cavities
