Product details

Endless AT10 Teeth White PU Timing Belt

Description:

PU Timing belts, also known as PU synchronous belts, are used in various applications where precise synchronization between the rotation of two or more shafts is required. According to the tooth shape, it can be divided into trapezoidal teeth timing belt and arc teeth timing belt.

Endless PU timing belt is a very ideal timing belt. It has the characteristics of corrosion resistance, durability, high-speed transmission, safe and reliable use, long service life, acid and alkali resistance, excellent temperature resistance and many other advantages. It is very convenient to use, can improve the stability of the machine, and make the machine's operation more reliable. It is a commonly used mechanical transmission device on equipment.

General model:

1. MXL type

The MXL type pu timing belt has a line spacing of 2.032mm and is suitable for small and medium power transmission systems, especially in high-speed rotation and positioning transmission applications. Common models include MXL040, MXL080, MXL126, MXL180, etc.

2. XL type

XL type pu timing belt has a line spacing of 5.080mm and is suitable for medium power transmission systems. Common models include XL037, XL050, XL075, XL100, XL150, etc.

3. L type

The L-type pu timing belt has a line spacing of 9.525mm and is suitable for high-power transmission systems. Common models include L050, L075, L100, L150, L225, etc.

Technical parameters:

Model	Pitch (mm)	Angel	Minimum Length(mm)	Max. Length(mm)	Max. Width(mm)	Minimum number of pulley teeth
XL	5.08	50	2159	12000	100	10
L	9.525	40	2171.7	15000	200	10
H	12.7	40	2159	15600	300	14
XH	22.225	40	2311.4	15600	400	18
XXH	31.75	40	2794	15600	400	25

Application areas:

It is suitable for high-precision, high-strength and high-speed transmission systems where the environment should be relatively dry and the operating temperature is generally -20 ~ +80 C.

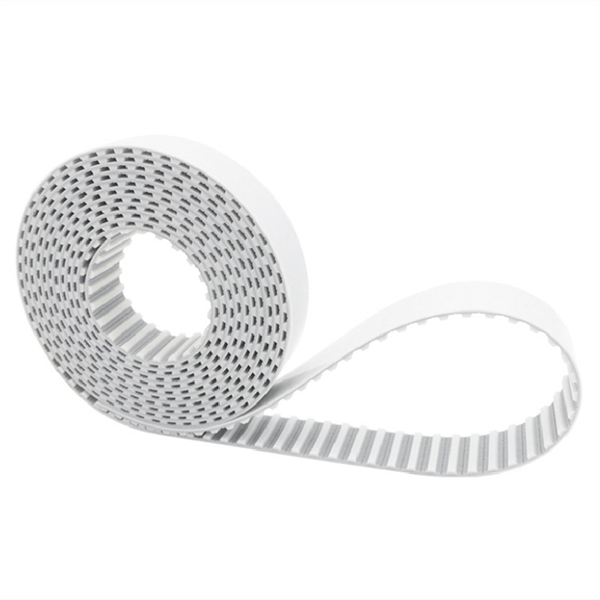

Photos:
