Ground Screw Pile also known as Ground Screw Anchor,Ground Piles,Screw Pile,Helical Piers,etc.Ground Screw Foundation are the best foundation for all projects.With our Ground Screws you can quickly and easily start your construction.

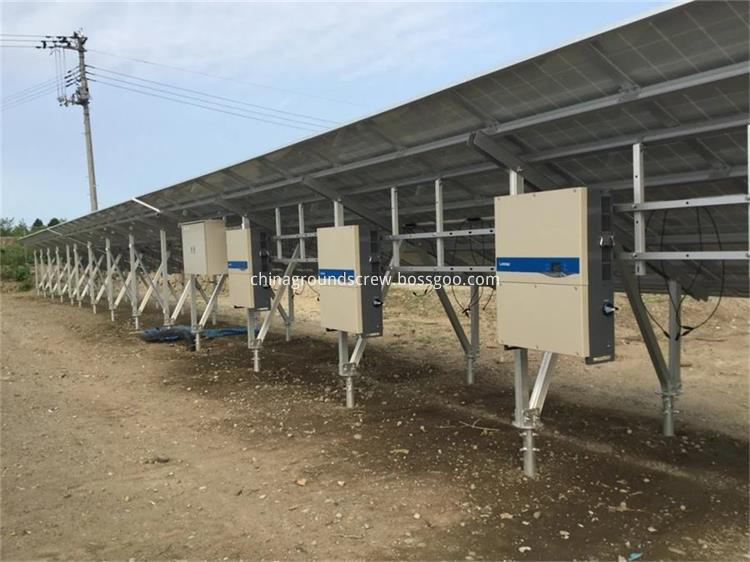

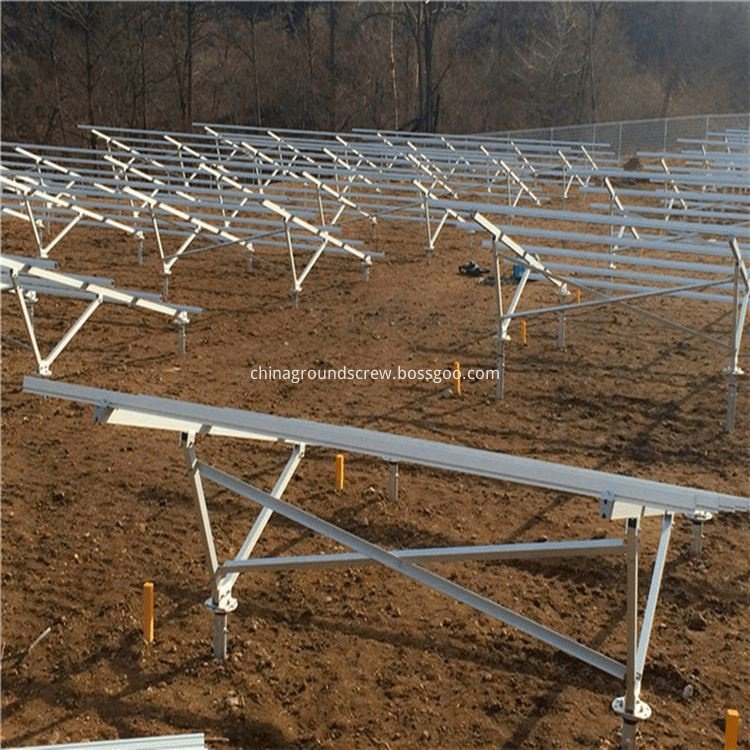

Screw Pile Foundation mainly used on solar energy mounting,garden fence,agricultural fence,grape garden,lighting pole,container house, temporary building. Steel Ground Screw are suitable for natural ground, also can be installed in rock and tarred surfaces.

Material of Screw Pile:S 235 carbon steel.

Length of the F Series Ground Screw:550-6000 mm.

Ground Pile's diameter:48 mm,68 mm,76 mm,89 mm,114 mm,according to clients' request.

Thickness of metal pipe:2.75 mm,3.00 mm,3.75 mm,4.00 mm.

Flange diameter:200 mm,thickness:8 mm or according to clients' request.

Surface treatment:Hot dip galvanized,according to DIN EN ISO 1461-1999,thickness of coating zinc: more than 80 micron.

Continuous welding with auto welding machine,cutting pipe with automatic cutting pipe machines.

Production Chart:Cutting pipe length according to design,forming the pipe according to the design,welding nut,flange,blade and assemble,acid pickling and hot dip galvanized treatment,QC and packing,shipments.

Advantages of Galvanized Ground Screw are as below:

• No excavating, digging, or concrete
• Installs within minutes
• Instantly loadable with no waiting time
• Stable, durable, storm proof, water proof
• Environmentally friendly, ecological, and sustainable
• No damage to surrounding landscape
• Fast and inexpensive to dismantle and relocate
• Can be installed into sealed surfaces
• Not dependent on weather conditions
