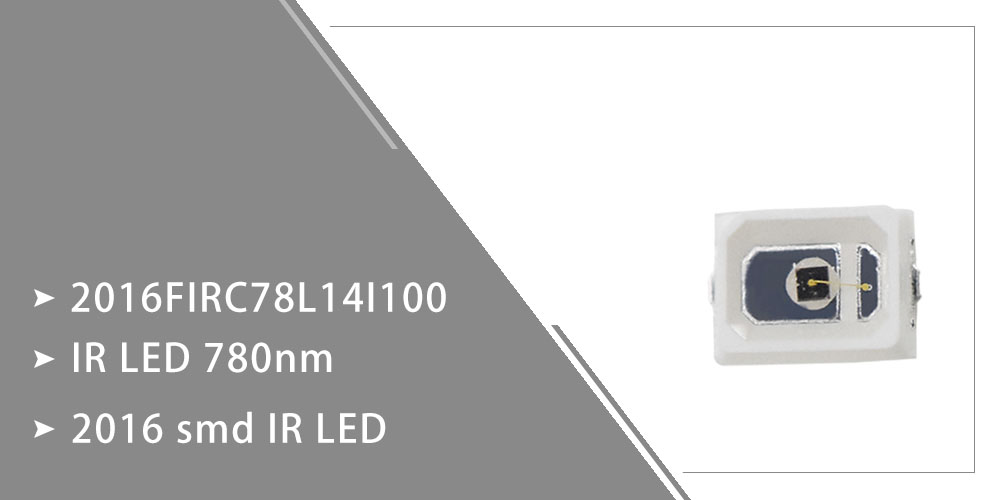

2835 SMD LED IR LED with 780nm Wavelength

12 month ago

3 0 

Shenzhen Best LED Opto-electronic Co.,Ltd / BESTSMD CO LIMITED(HK)

8 year

Product details

780nm LED is typically considered to be within the range of infrared light, and there are many infrared LEDs that emit light in this wavelength range. There are some general characteristics of a 780nm IR LED: 1. Wavelength: The LED emits light at a wavelength of 780nm, which is in the near-infrared range; 2. Power output: The power output of the LED depends on the specific product, but typically ranges from a few milliwatts to several watts. 3, Lifespan: The lifespan of the LED depends on the quality of the product and the operating conditions. Typically, SMD LED type of IR LED it can last for 50000 of hours.

Electrical Parameters:

Parameter	Symbol	Min	Type	Max	Unit	Test Condition
Forward Voltage	VF	1.5	-	1.7	V	IF=100mA
Radiated Power	PO	-	20	-	mw/sr	IF=100mA
Dominant Wavelength	λp	780			nm	IF=100mA
Half Width	λ△		25		nm	IF=100mA
Viewing Half Angle	θ1/2		120		deg	IF=100mA
Reverse Current	IR			5	uA	VR=5V

*Luminous intensity is measured by ZWL600.

*λD is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.

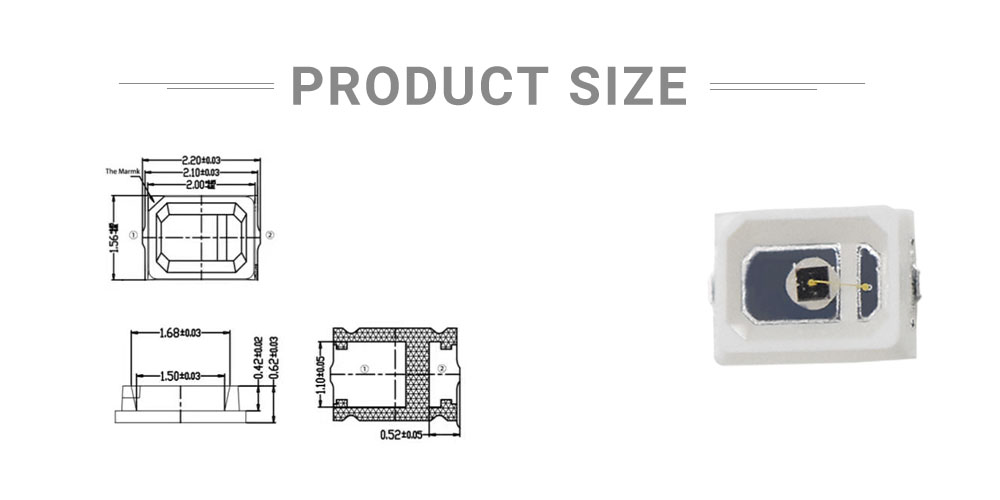

Size of 2016 SMD LED:

Size of 2016FIRC78L14I100 780nm LED

* This 2016 SMD LED are also available in Yellow LED, UV LED, Amber LED, Blue SMD LED, Green SMD LED ect.*

Product Details:

99.99% purity gold wire;

Silver plated LED frame;

Famous branded chips;

High quality epoxy;
