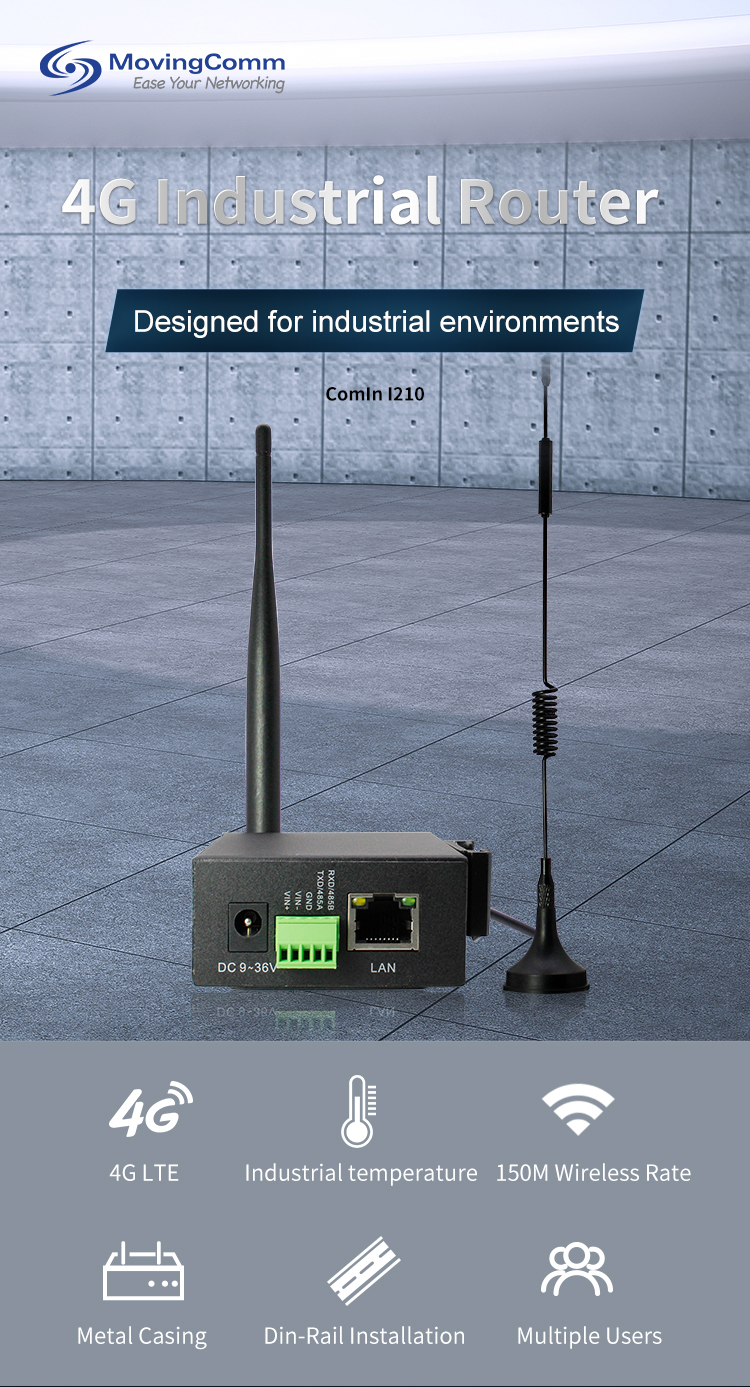

I210-4g Industrial router
12 month ago
Product Description
In addition, ComIn I210 IOT Gateway provides single 10/100Mbps RJ45 LAN network port, a set of industrial phoenix terminals (serial pot RS232 or RS485), and a drawer SIM/UIM card slot. It can have the serial port, Ethernet port, and WIFI connected and working at the same time, providing pass-through data transmission.
ComIn I210 Industrial Router supports remote management via the cloud management platform. It has a simple graphical interface, is convenient and quick to use. It lets you know the current status of equipment anytime, anywhere, widely used in M2M industries and the Internet of Things, such as smart grid, smart transportation, smart home, finance, Mobile POS terminal, supply chain automation, industrial automation, intelligent building, fire protection, public safety, environmental protection, meteorology, digital medical treatment, telemetry, military, space exploration, agriculture, forestry, water, coal mine, petrochemical, and other fields.
150Mbps WiFi Speed Access
supports WIFI 2.4GHz 802.11n protocol and provides a maximum rate of up to 150Mbps (Single Antenna). high stability for wireless connection.

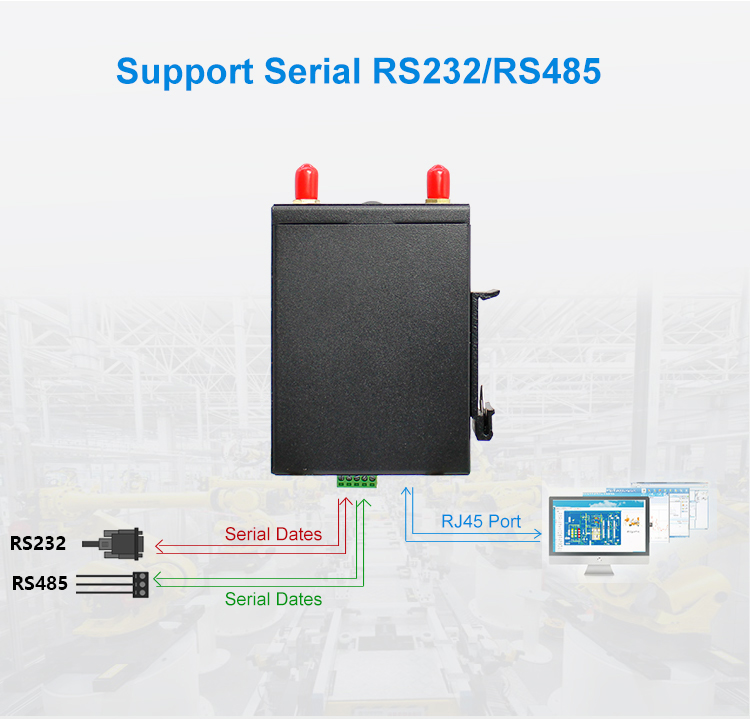

Support Serial RS232/RS485
Connect serial device and network server through 4G DTU, can carry out two-way pass-through transmission of data.

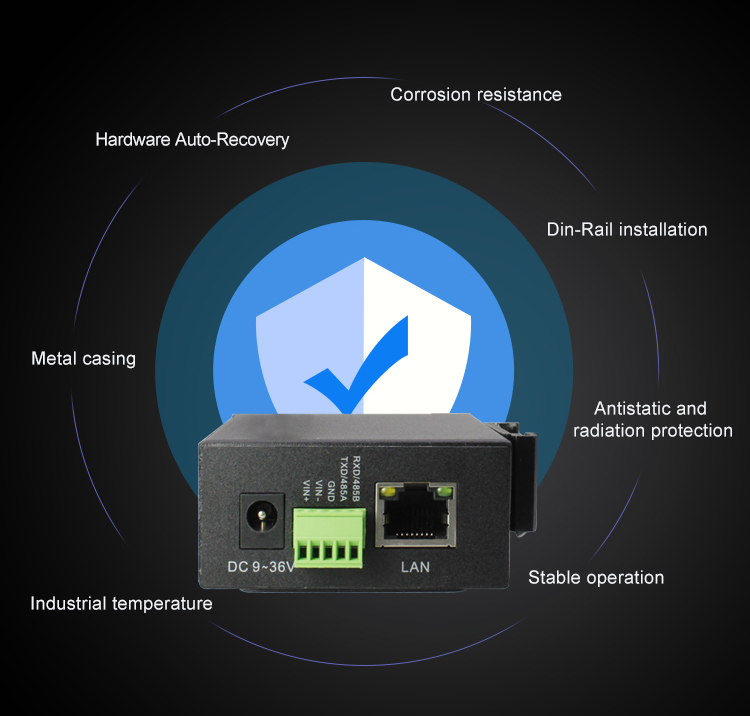

Ruggedized Industrial Design
the product adopts the metal casing to provide industrial isolation protection, which is especially suitable for industrial control field applications.

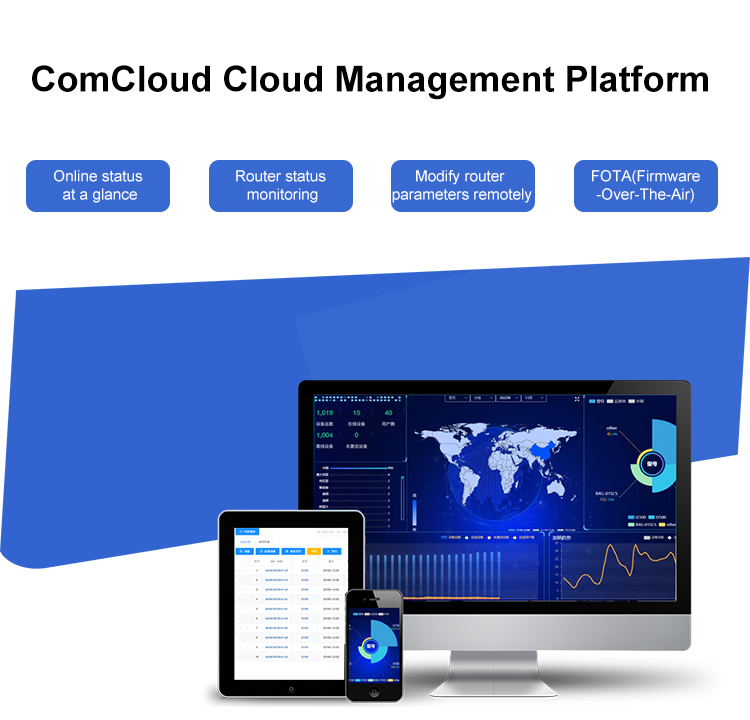

ComCloud Cloud Management Platform
we have launched the ComCloud cloud management platform for wireless devices, which can effectively carry out remote management of multiple devices, grasp the operating status of the devices in time,and know any device faults at the first time.
High Performance Chipest
High performance chipset provides greater stability and long term stable and smooth data communication.
Suitable For Multiple Application Scenarios
Widely used in different scenarios, such as massage chairs, smart monitoring, PLC remote control, smart bus, industrial control, smart express cabinets, etc.
|
Model |
ComIn I210 |
|
|
CPU |
32bit MIPS Dual Core Industrial Grade Processor |
|
|
System Memory |
64MB |
|
|
Flash |
16MB SPI Flash (optional Max 32MB) |
|
|
Cellular |
4G Cat4 or optional 4G Cat1 model |
|
|
Wi-Fi |
2.4GHz IEEE 802.11n MIMO 150Mbps Max. |
|
|
Interfaces |
RJ45 |
1 x 10/100Mbps FE RJ45 Port, Auto MDI/X, with 1.5KV Magnetic Isolation Protection (Default LAN, can be configured as WAN Port) |
|
Terminal Block |
2.54mm Standard Industrial Terminal Block. Support Serial RS232/RS485, DC Power Input, DI, DO |
|
|
SIM |
1 x Drawer-Type SIM Card Holder, Support Standard 1.8V/3V USIM/SIM Card, 15KV ESD Protection, Support Hot-Swap, Support Built-in SIM Card (eSIM) |
|
|
Power |
Standard DC Power Input Jack, Reverse-Voltage Protection, and Surge Protection |
|
|
Reset |
1 x Factory Reset Button (Pinhole) |
|
|
Antenna |
2 x Standard SMA / RP-SMA Antenna Port, 50 ohm |
|
|
Indicators |
PWR LED Indicator x 1 |
|
|
SYS LED Indicator x 1 |
||
|
WIFI LED Indicator x 1 |
||
|
NET Status LED Indicator x 1 |
||
|
CELLULAR Strength LED Indicator x 3 |
||
|
Power Input |
Power Type |
12VDC/1A |
|
Power Range |
6V ~ 36VDC |
|
|
|
Power Consumption |
<450mA (12V), Typical 170mA @ 12V |
|
Hardware Watchdog |
Embedded hardware watchdog, supports equipment operation self-test technology, equipment operation fault auto recovery |
|
|
EMC |
Electrostatic: EN61000-4-2, Level4 |
|
|
Radiated Electric Field: EN61000-4-3, Level4 |
||
|
Pulsed Electric Field: EN61000-4-4, Level4 |
||
|
Surge: EN61000-4-5, Level3 |
||
|
Conducted Disturbance: EN61000-4-6, Level4 |
||
|
Power Frequency Interference: EN61000-4-8, Horizontal/Vertical 400A/m (>Level 4) |
||
|
Shock Wave Immunity: EN61000-4-12, Level4 |
||
|
Enclosure |
Metal Casing, Safe Isolation Between Casing and System, Especially Suitable For Industrial Control Field Applications |
|
|
Dimensions |
100mm x 63mm x 31mm (Exclude Antenna and Mounting Sets) |
|
|
Weight |
Approx. 180g (Excluding Antenna and Accessories) |
|
|
Environment |
Operating Temperature: -35°C to 75°C |
|
|
Storage Temperature: -40°C to 85°C |
||
|
Operating Humidity: 10% to 95% RH Non-condensing |
||
|
Storage Humidity: 5% to 95% RH Non-condensing |
||
|
Firmware |
Linux SDK |
|
Details Images
