5050 SMD LED Bi-color LED
12 month ago
- Custom LED -
5050IR83FR63C

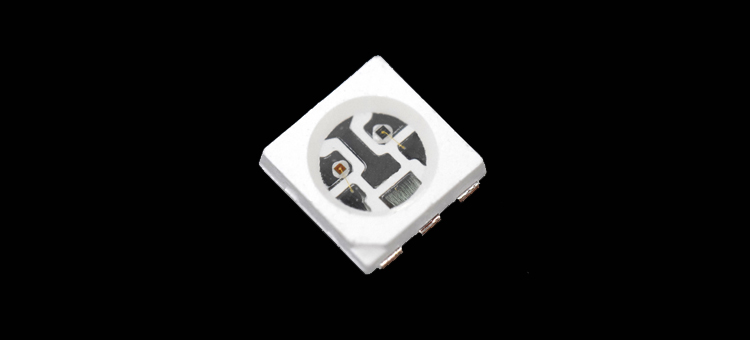

830 nm ir led&630 nm red led .3528 SMD LED are also can be packaged with 2 chips LED inside. But sometime we will need some super bright or some high power LED for our application so that we need some bigger bare die inside of the SMD LED case. Compare with 3528 SMD LED,5050 SMD LED case got a bigger size. Which means it will got a better heating dispatching performance than 3528 SMD LED. There have 6 pins for the LED color control. But since this LED just got 2 chips inside, the two of the middle pins cannot control the lighting. Do you also need some custom LED like this LED as follow? Contact us and let us know more detail about your required, we will do this for you! 2 chips 5050 smd led There have 3 position in the 5050 SMD LED for the LED dare die. But for some application, there just need with 2 chips inside. Custom LED are available in our factory, so in this case, we can packaged it with 2 chips inside, Red + IR. As you can see in the picture, the middle position is empty, which means we didn't package any LED chip inside of it.
|
- Size: 5.0*5.0*1.3mm - Chip Number: 2 chips - Color: UV+IR - Type: Surface mount device - Chip brand: Epistar |
- Polarity mark cathode - Different color are available - Different wavelength are available
- Warranty: 5 Years
- RoHS, REACH, EN62471 |
- Uniform light output - Long life-solid state reliability
- Low Power consumption
-Anti UV epoxy resin package -High temperature resistance |

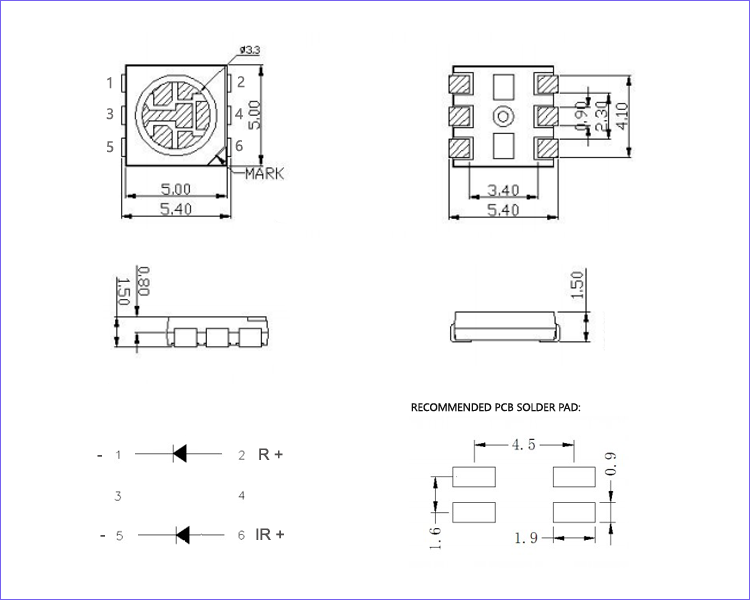

-Dimension Parameters-
These SMD LED case are also available for IR LED, UV LED, Blue SMD LED, Red SMD LED, Amber LED ect.

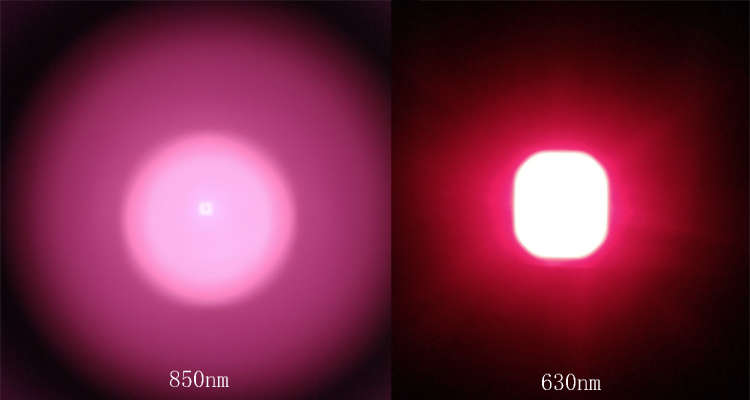

- Emitting Color -
- Electrical Parameters -
|
Parameter |
Symbol |
Rating |
|||
|
nm |
nm |
||||
|
Power Dissipation |
Pd |
80mw |
90mw |
||
|
Pulse Forward Current |
IFP |
100mA |
100mA |
||
|
Forward Current |
IF |
30mA |
30mA |
||
|
Reverse Voltage |
VR |
5V |
|||
|
Junction Temperature |
Tj |
115°C |
|||
|
Operating Tempertature |
Topr |
-40 - +80°C |
|||
|
Storage Tempertature |
Tstg |
-40 - +100°C |
|||
|
Soldering Temperature |
Tsol |
260°C |
|||
|
Electro-Static-Discharge(HBM) |
ESD |
2000v |
|||
|
Warranty |
Time |
5Years |
|||
|
Antistatic bag |
Piece |
2000Bag |
|||
|
*Pulse Forward Current Condition:Duty 1% and Pulse Width=10us. |
|||||
|
*Soldering Condition:Soldering condition must be completed with 3 seconds at 260°C |
|||||
|
Parameter |
Symbol |
Min |
Typ |
Max |
Unit |
Test Condition |
||
|
Forward Voltage |
630nm |
VF |
1.9 |
2.0 |
2.4 |
V |
IF=20mA |
|
|
830nm |
1.3 |
|
1.7 |
|||||
|
Luminous Intensity |
630nm |
IV |
2.8 |
|
3.5 |
lm |
IF=20mA |
|
|
830nm |
8 |
|
12 |
mw/sr |
||||
|
Peak Wavelength |
630nm |
λP |
|
633 |
645 |
nm |
IF=20mA |
|
|
830nm |
820 |
830 |
838 |
|||||
|
Half Width |
630nm |
Dl |
|
18 |
|
nm |
IF=20mA |
|
|
830nm |
|
25 |
|
|||||
|
Viewing Half Angle |
2q1/2 |
|
±60 |
|
deg |
IF=20mA |
||
|
Reverse Current |
630nm |
IR |
|
|
5 |
uA |
VR=5V |
|
|
850nm |
|
|
5 |
|||||
|
*Luminous Intensity is measured by ZWL600. |
||||||||
|
*2q1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity. |
||||||||
|
*lD is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device. |
||||||||

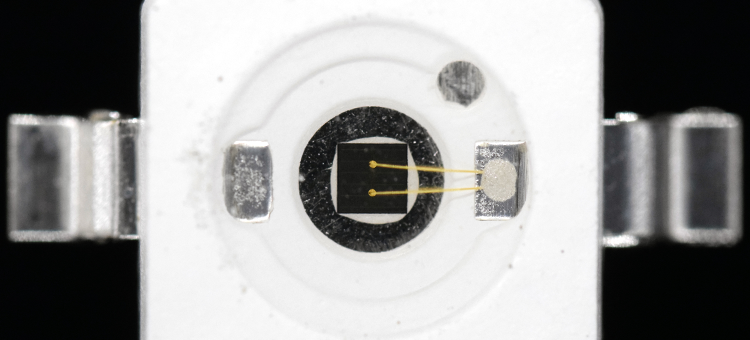

- Golden Wire Connection -
- Packing -
*We package it with vacuum packing after tape it as a reel
- Application -
- Related 5050 LED -
- Production -
- SMD LED Use -
