Hank jet dyeing machine
12 month ago
HY-B Spray Hank Yarn Dyeing Machine
Hank Yarn jet dyeing machine most suitable for bleaching,dyeing,rinsing and after-treatment such as colloid real silk,single yarn,rayon,silk spun,real silk and mercerizing cotton thread.
Special designed mixed-flow pump with low energy consumption but high performance offering great flow and high efficiency for even dyeing without spots.
New type overflow spray tube which concentrating dye liquid at the top,thus the yarn will fully absorb dyestuff to attain 100% even dyeing.
Friction between the yarn after floating and the tubes is quite little for avoiding any damage to the surface of yarn.

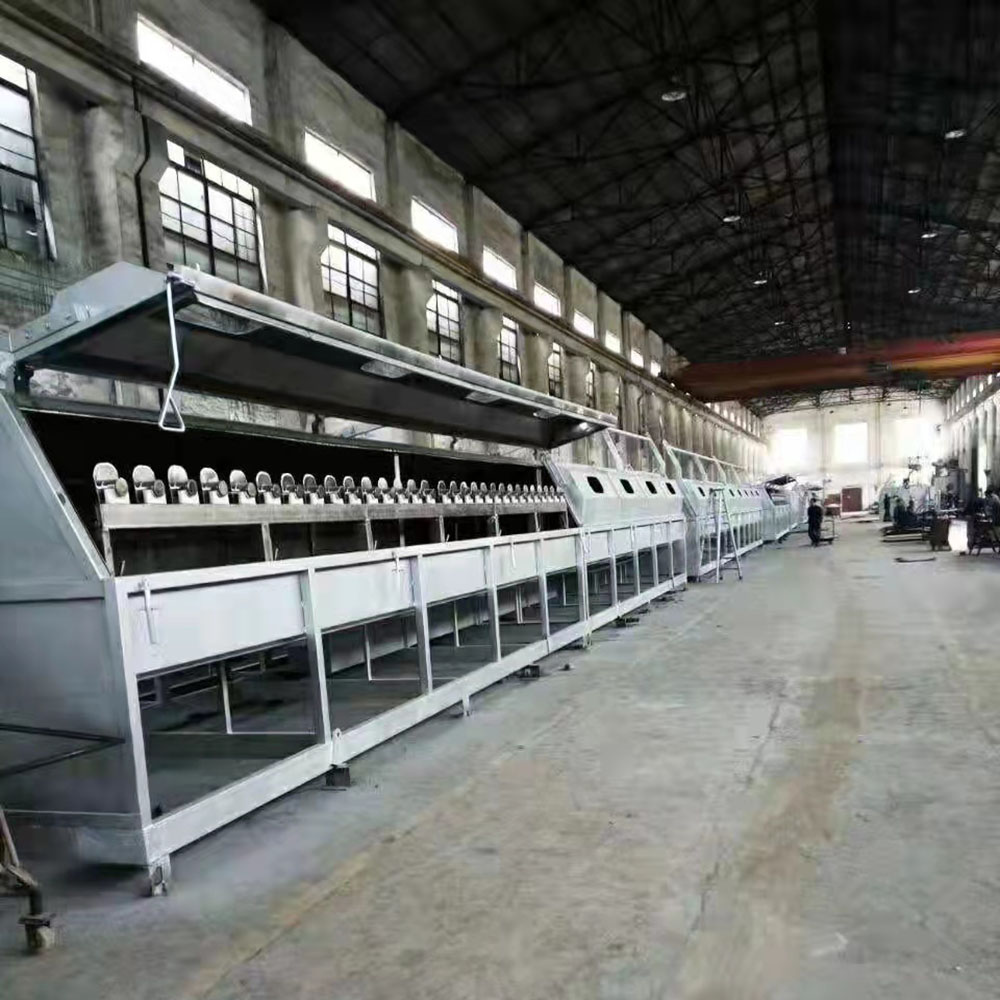

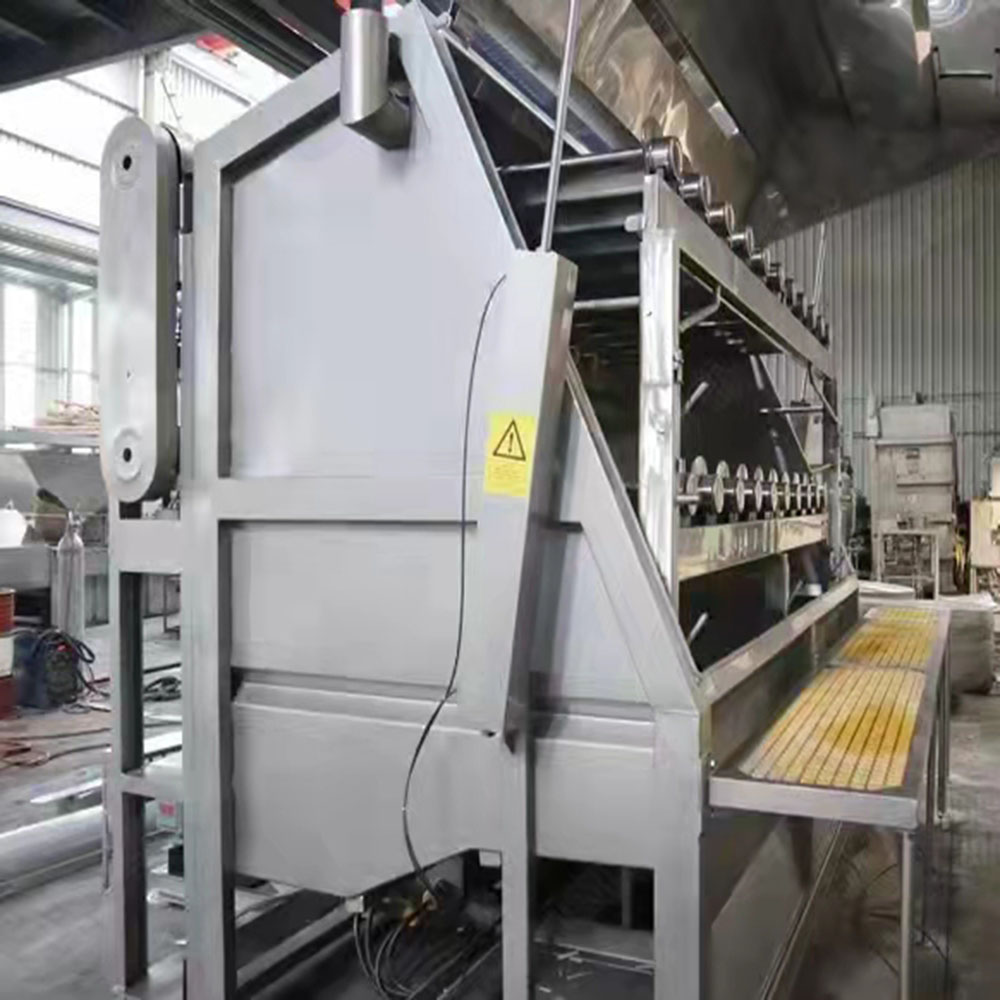

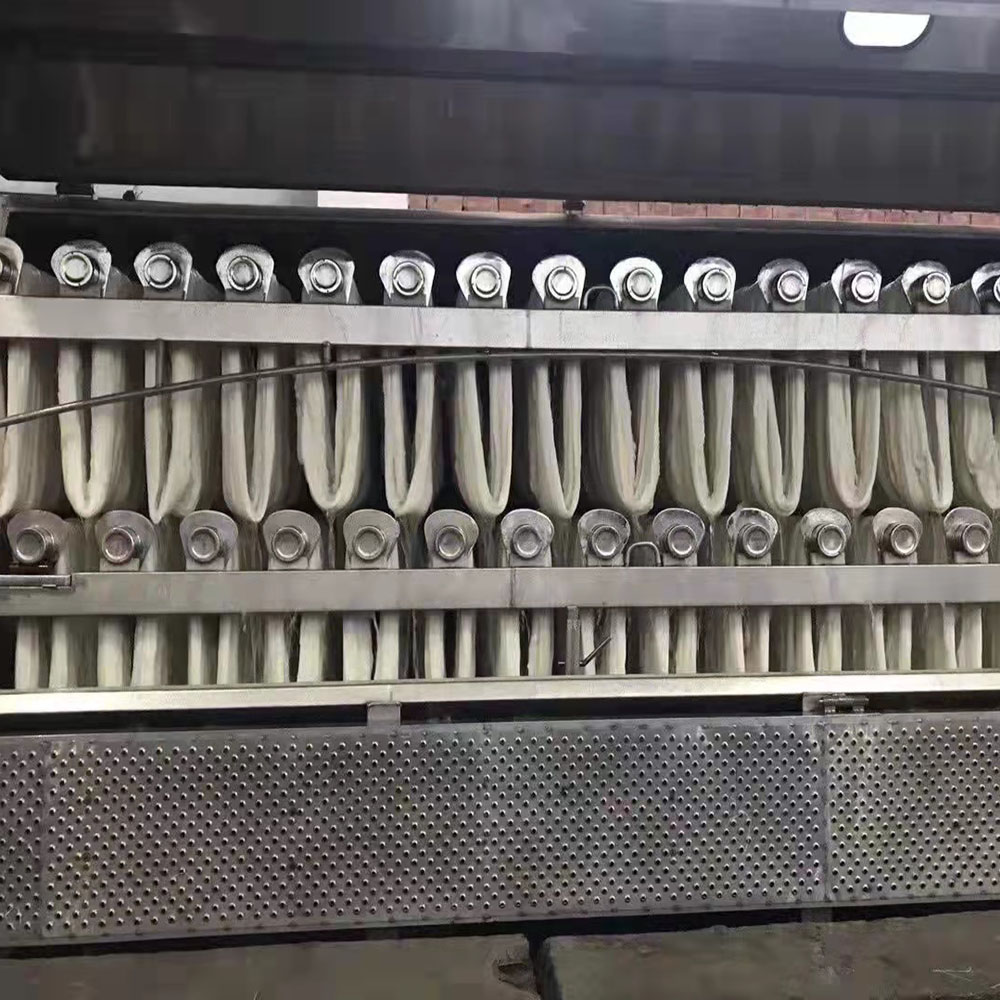

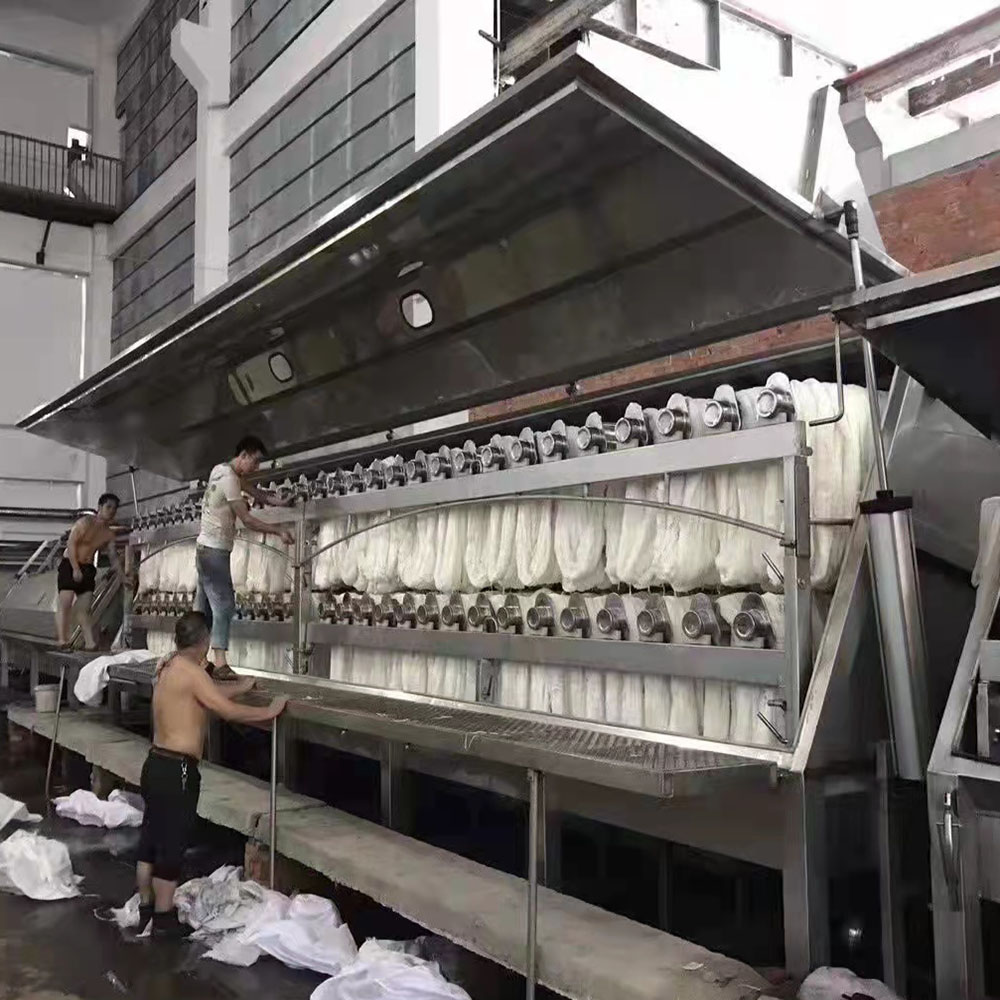

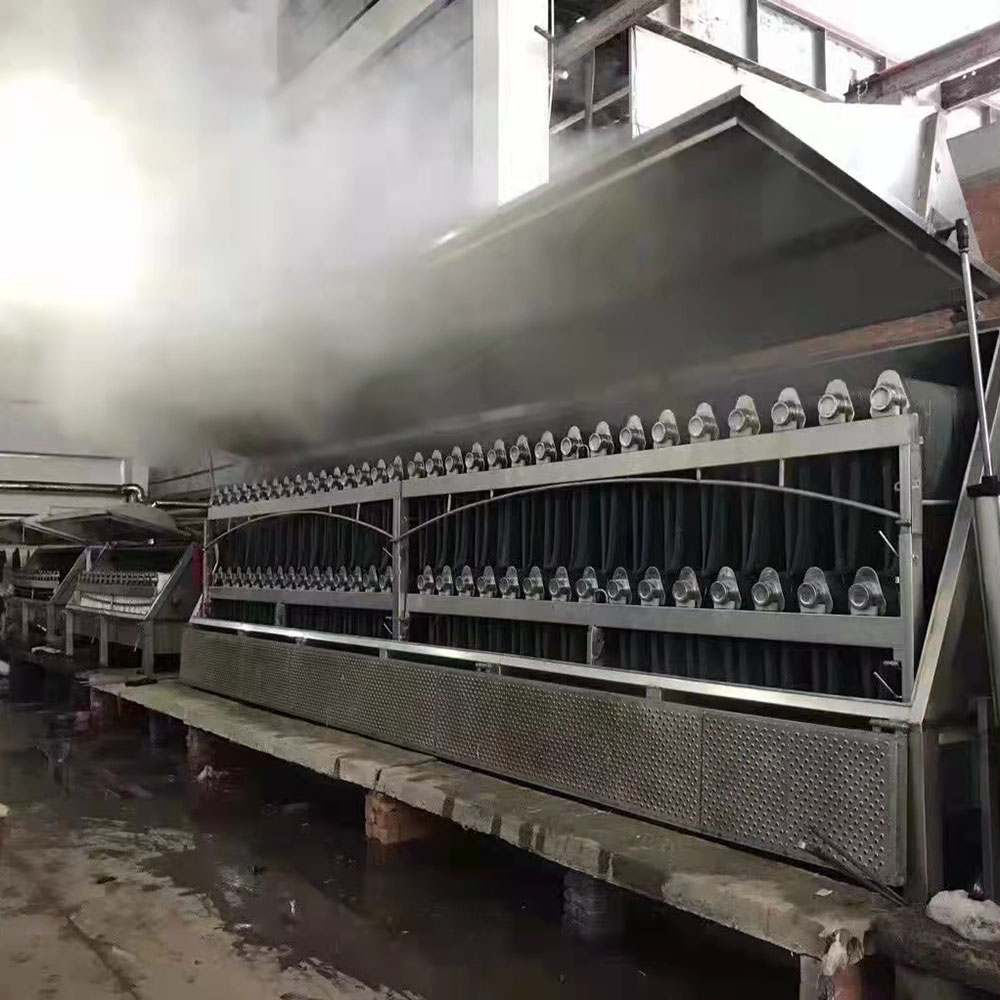

Product images
Specifications:
Model
Capacity(kg)
Total power(kw)
Outline dimension(mm)
Weight(kg)
L
W
H
HY-B-1/2
3
1.1
1310
1950
2020
820
HY-B-1/2X2
7
1.1
1540
1950
2020
1200
HY-B-2
14
1.5
1570
2500
2020
1400
HY-B-4
28
3
2130
2500
2020
1800
HY-B-6
42
4
2580
2550
2020
2400
HY-B-10
70
5.5
3740
2550
2020
3000
HY-B-20
140
11
6740
2600
2120
4500
HY-B-30
210
15
9700
2750
2220
5600
HY-B-40
280
22
12850
2750
2220
6800
HY-B-60
420
37
18810
2960
2320
11340
HY-B-80
560
45
24900
2960
2320
13800
