Steel Angle Bar Iron
11 month ago
The steel angle is a carbon structural steel for construction. It is section steel with a simple cross-section. It is mainly used for metal components and the frame of the workshop. It is required to have good weldability, plastic deformation performance and certain mechanical strength in use. The raw steel billet for the production of angle steel is a low-carbon square billet, and the finished angle steel is delivered in the form of normalized or hot rolled.
Steel angle bar can be made into pressure structural bracket based on different size and grade, and also can be made into connector between structural beam. Widely used for various building structures and engineering structures, such as house beams, bridges, power transmission towers, lifting, and transportation machinery, ships, industrial furnaces, reaction towers, container racks, cable trench brackets, power piping, busbar bracket installation, and warehouse shelves.
|
Products |
Angle Steel |
|
Grade |
Q195, Q215, Q235B, Q345B, Q420B/C, Q460C, SS400/SS540, S235JR/S235J0/S235J2, S275JR/S275J0/S275J2, S355JR/S355J0/S355J2 |
|
Specification |
20*20-200*200mm or as customer's actual requirement |
|
Length |
3-12 m or as customer's actual requirement |
|
Zinc Coating |
30-90um |
|
Technique |
Hot Rolled/ Cold Rolled/ Galvanized |
|
Processing Method |
Bending, Welding, Decoiling, Cutting, Punching, Polishing or as customer's request |
|
Payment Terms |
L/C, T/T or Western Union |
|
Price Term |
EXW, FOB, CIF, CFR, etc |
|
Delivery Time |
7-15 days, or according to the order quantity or upon negotiation |
|
Certificate |
ISO9001, SGS, BV, TUV, MTC |
|
Application |
Widely used in various building structure and engineering structure, such as the beam, bridges, transmission tower, lifting transportation machinery, ship, industrial furnace, reaction tower and container frame etc. |
|
Our Advantage |
We have 20000 Tons regular grade steel in stock, which can be shipped quickly for customers |
|
Item |
Chemical composition % |
Mechanical property |
||||||
|
Grade |
C % |
Mn % |
S % |
P % |
Si % |
Yield point |
Tensile strength |
Elongation % |
|
Q195 |
0.06-0.12 |
0.25-0.50 |
< 0.050 |
< 0.050 |
≤0.30 |
> 195 |
315-430 |
≥33 |
|
Q235 |
0.09-0.15 |
0.25-0.55 |
< 0.045 |
< 0.045 |
≤0.30 |
> 235 |
375-500 |
≥26 |
|
Q345 |
≤0.20 |
≤0.17 |
≤0.04 |
≤0.04 |
≤0.50 |
> 345 |
470-630 |
≥20 |
Steel Angle bar(iron angle), hot rolled from the heating boiler and shaped with vertical angle 90 degree and normally length in 6m/ 9m/12m.
According to shape difference, we distiguish mild steel angle bar from equal and unequal. Equal angle has same width and specification in width A * width B * thickness. For example: 50*50*4mm, means width A is 50mm, width B is 50mm, and thcikness is 4mm. We also always named specification 4#(No.4). Hot rolled equal angle size from 2# to 200#. Unequal angle has different width and specification in width A* width B* thickness. For example: 75*50*6mm, means width A is 75mm, width B is 50mm and thcikness is 6mm.
|
Equal Angle Steel Sizes |
|||||||
|
Size (mm) |
Weight (kg/m) |
Size (mm) |
Weight (kg/m) |
Size (mm) |
Weight (kg/m) |
Size (mm) |
Weight (kg/m) |
|
25*25*3 |
1.124 |
75*75*5 |
5.818 |
110*110*10 |
16.690 |
200*200*15 |
45.300 |
|
25*25*4 |
1.459 |
75*75*6 |
6.905 |
110*110*12 |
19.782 |
200*200*16 |
48.680 |
|
30*30*3 |
1.373 |
75*75*7 |
7.976 |
110*110*14 |
22.809 |
200*200*18 |
54.401 |
|
30*30*4 |
1.786 |
75*75*8 |
9.030 |
125*125*8 |
15.504 |
200*200*20 |
60.056 |
|
40*40*3 |
1.852 |
75*75*10 |
11.089 |
125*125*10 |
19.133 |
200*200*24 |
71.168 |
|
40*40*4 |
2.422 |
80*80*6 |
7.376 |
125*125*12 |
22.696 |
200*200*25 |
73.600 |
|
40*40*5 |
2.976 |
80*80*8 |
9.658 |
125*125*14 |
26.193 |
220*220*16 |
53.901 |
|
50*50*3 |
2.332 |
80*80*10 |
11.874 |
140*140*10 |
21.488 |
220*220*18 |
60.250 |
|
50*50*4 |
3.059 |
90*90*6 |
8.350 |
140*140*12 |
25.522 |
220*220*20 |
66.533 |
|
50*50*5 |
3.770 |
90*90*8 |
10.946 |
140*140*14 |
29.490 |
220*220*22 |
72.751 |
|
50*50*6 |
4.465 |
90*90*10 |
13.476 |
160*160*12 |
29.391 |
220*220*24 |
78.902 |
|
60*60*5 |
4.570 |
90*90*12 |
15.940 |
160*160*14 |
33.987 |
220*220*26 |
84.987 |
|
60*60*6 |
5.420 |
100*100*6 |
9.366 |
160*160*16 |
38.581 |
250*250*18 |
68.956 |
|
63*63*4 |
3.907 |
100*100*7 |
10.830 |
160*160*18 |
48.630 |
250*250*20 |
76.180 |
|
63*63*5 |
4.822 |
100*100*8 |
12.276 |
175*175*12 |
31.800 |
250*250*24 |
90.433 |
|
63*63*6 |
5.721 |
100*100*10 |
15.120 |
175*175*15 |
39.400 |
250*250*25 |
93.770 |
|
63*63*8 |
7.469 |
100*100*12 |
17.898 |
180*180*12 |
33.159 |
250*250*26 |
97.461 |
|
70*70*5 |
5.397 |
100*100*14 |
20.611 |
180*180*14 |
38.382 |
250*250*28 |
104.422 |
|
70*70*6 |
6.406 |
100*100*16 |
23.257 |
180*180*16 |
43.542 |
250*250*30 |
111.318 |
|
70*70*7 |
7.398 |
110*110*7 |
11.928 |
180*180*18 |
48.634 |
250*250*32 |
118.149 |
|
70*70*8 |
8.373 |
110*110*8 |
13.532 |
200*200*14 |
42.894 |
250*250*35 |
128.271 |
|
Unequal Angle Steel Sizes |
|||||||
|
Size (mm) |
Weight (kg/m) |
Size (mm) |
Weight (kg/m) |
Size (mm) |
Weight (kg/m) |
Size (mm) |
Weight (kg/m) |
|
45*30*4 |
2.251 |
80*50*7 |
6.848 |
110*70*6 |
8.350 |
150*90*8 |
14.700 |
|
50*32*3 |
1.908 |
80*50*8 |
7.745 |
110*70*7 |
9.656 |
160*100*10 |
19.872 |
|
50*32*4 |
2.494 |
90*56*5 |
5.661 |
110*70*8 |
10.946 |
160*100*12 |
23.592 |
|
56*36*3 |
2.153 |
90*56*6 |
6.717 |
110*70*10 |
13.476 |
160*100*14 |
27.247 |
|
56*36*4 |
2.818 |
90*56*7 |
7.756 |
125*75*7 |
10.700 |
160*100*16 |
30.835 |
|
56*36*5 |
3.466 |
90*56*8 |
8.779 |
125*75*8 |
12.200 |
180*110*10 |
22.273 |
|
63*40*4 |
3.185 |
100*63*6 |
7.550 |
125*75*9 |
13.600 |
180*110*12 |
26.464 |
|
63*40*5 |
3.920 |
100*63*7 |
8.722 |
125*75*10 |
15.000 |
180*110*14 |
30.589 |
|
63*40*6 |
4.638 |
100*63*8 |
9.878 |
125*75*12 |
17.800 |
180*110*16 |
34.649 |
|
63*40*7 |
5.339 |
100*63*10 |
12.142 |
125*80*7 |
11.066 |
200*100*10 |
23.000 |
|
70*45*4 |
3.570 |
100*75*6 |
8.060 |
125*80*8 |
12.511 |
200*100*12 |
27.620 |
|
70*45*5 |
4.403 |
100*75*7 |
9.340 |
125*80*10 |
15.474 |
200*100*15 |
30.040 |
|
70*45*6 |
5.218 |
100*75*8 |
10.600 |
125*80*12 |
18.330 |
200*125*12 |
29.761 |
|
70*45*7 |
6.011 |
100*75*9 |
11.800 |
140*90*8 |
14.160 |
200*125*14 |
34.436 |
|
75*50*5 |
4.808 |
100*75*10 |
13.000 |
140*90*10 |
17.475 |
200*125*16 |
39.045 |
|
75*50*6 |
5.699 |
100*75*12 |
15.350 |
140*90*12 |
20.724 |
200*125*18 |
43.588 |
|
75*50*8 |
7.431 |
100*80*6 |
8.350 |
140*90*14 |
23.908 |
200*125*20 |
47.885 |
|
75*50*10 |
9.098 |
100*80*7 |
9.656 |
150*90*9 |
16.400 |
|
|
|
80*50*5 |
5.005 |
100*80*8 |
10.946 |
150*90*10 |
18.200 |
|
|
|
80*50*6 |
5.935 |
100*80*10 |
13.476 |
150*90*12 |
21.600 |
|
|
Please contact us for more size information.

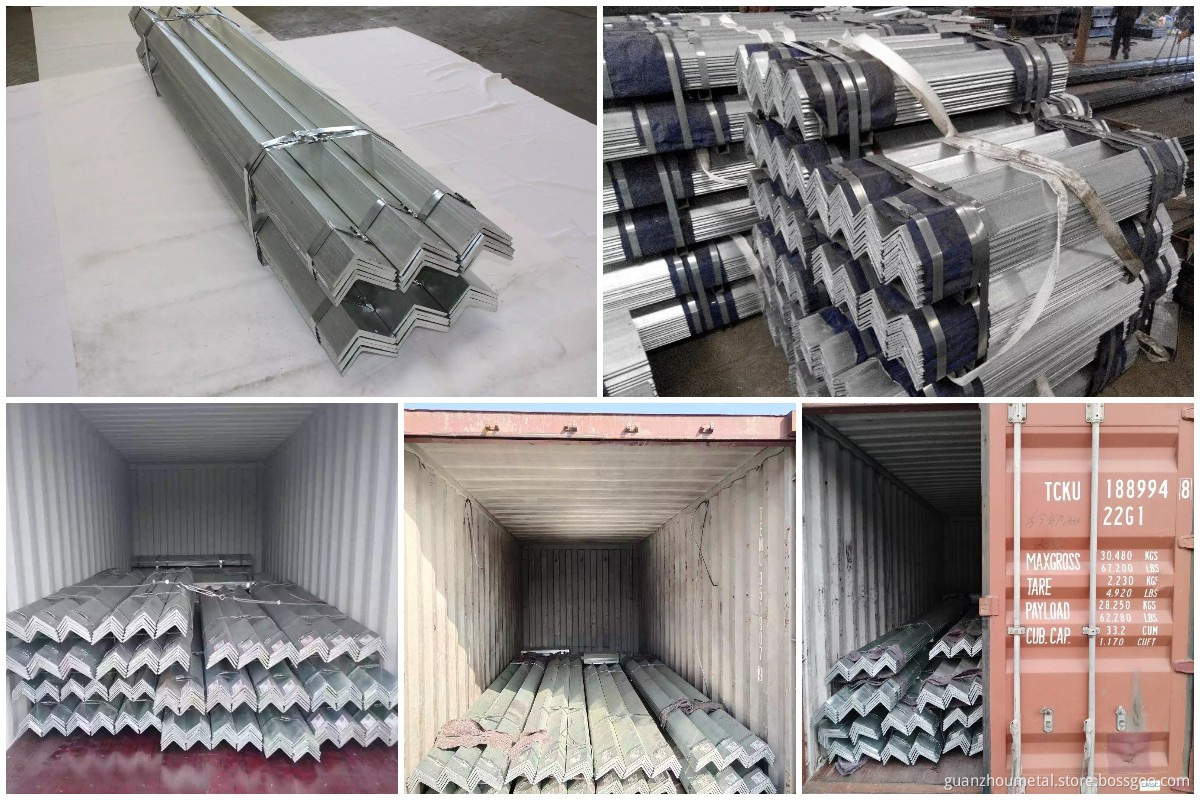

Packing and Shipping
