ASTM A193 grade b16 heat treatment chemical composition

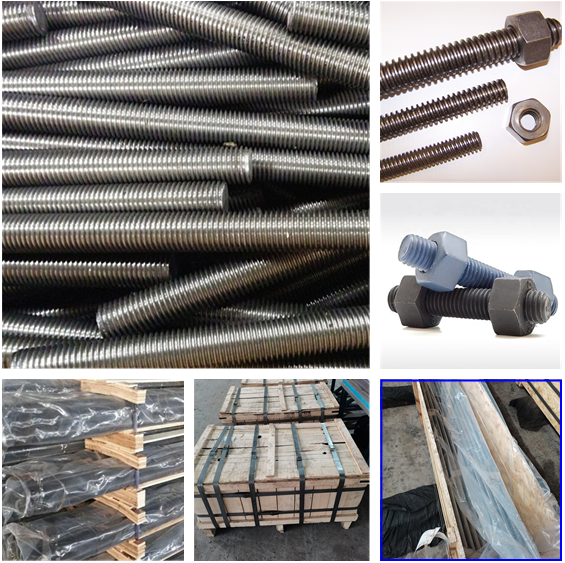

ASTM A193 grade b16 Threaded Stud and Bolts we produce is fully threaded stud bolts used for high strength steel bolts such as marine anchor bolt, mine steel anchor bolt, wind turbine anchor bolt.

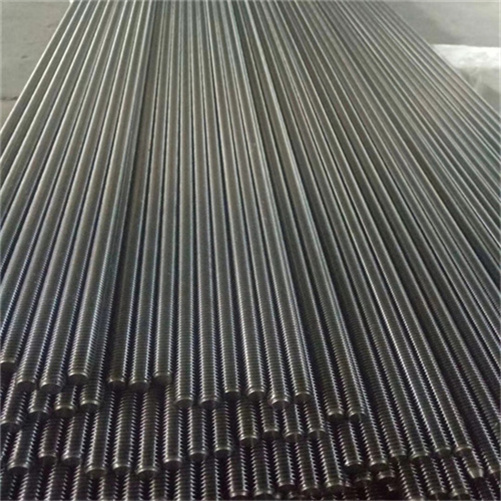

Astm a 193 grade b16 steel threaded bar we produce is manufactured with rolled threads instead of cut, free from tears or tool marks typically found in cut threads. So the threaded rods are smoother and have less surface imperfections that may cause possible failure in severe service applications.
Astm a 193 grade b16 steel threaded rod is in high demand because of its high strength, excellent heat resistance and resistance to corrosion.
1. astm a193 grade b16 threaded rods raw material chemical composition:
|
C |
SI |
MN |
S/P |
CR |
MO |
|
0.36-0.47 |
0.15-0.35 |
0.45-0.70 |
0.035(MAX) |
0.80-1.10 |
0.50-0.65 |
2. astm a193 grade b7 threaded rods mechanical property:
Tensile strength
Yield strength
Elongation
Reduction of area
Hardness
AKV(-101.C)
860MPa min
725MPa min
18% min
50% min
35 HRC max
27J min
Note: The properties can adjust according to your requirements
3. astm a193 grade b16 threaded rods sizes:
Metric threaded rods: M12 - M64
Imperial threaded rods: 1/2"- 4"
LENGTH: 1M, 2M ,3M, 6M, 12FT or cut to other lengths according to customer's requirement.
Metric threaded rods common sizes:
|
M12 |
1.75mm |
M36 |
4mm |
|
M14 |
2mm |
M39 |
4mm |
|
M16 |
2mm |
M42 |
4.5mm |
|
M18 |
2.5mm |
M45 |
4.5mm |
|
M20 |
2.5mm |
M48 |
5mm |
|
M22 |
2.5mm |
M52 |
5mm |
|
M24 |
3mm |
M56 |
5.5mm |
|
M27 |
3mm |
M60 |
5.5mm |
|
M30 |
3.5mm |
M64 |
6mm |
|
M33 |
3.5mm |
8UN |
|
Imperial threaded rods common sizes:
|
5/8" |
11UNC |
2 3/8" |
8UN |
|
3/4" |
10UNC |
2 1/2" |
8UN |
|
7/8" |
9UNC |
2 5/8" |
8UN |
|
1" |
8UN |
2 3/4" |
8UN |
|
1 1/8" |
8UN |
2 7/8" |
8UN |
|
1 1/4 |
8UN |
3" |
8UN |
|
1 3/8" |
8UN |
3 1/8" |
8UN |
|
1 1/2" |
8UN |
3 1/4" |
8UN |
|
1 5/8" |
8UN |
3 1/8" |
8UN |
|
1 3/4" |
8UN |
3 1/2" |
8UN |
|
1 7/8" |
8UN |
3 5/8" |
8UN |
|
2" |
8UN |
3 3/4" |
8UN |
|
2 1/8" |
8UN |
3 7/8" |
8UN |
|
2 1/4" |
8UN |
4" |
8UN |
4. Metric threaded rod weight:
|
M12 |
0.69kg |
M36 |
6.63kg |
|
M14 |
0.93kg |
M39 |
7.86kg |
|
M16 |
1.24kg |
M42 |
9.05kg |
|
M18 |
1.57kg |
M45 |
10.51kg |
|
M20 |
1.98kg |
M48 |
11.84kg |
|
M22 |
2.44kg |
M52 |
14.13kg |
|
M24 |
2.86kg |
M56 |
16.37kg |
|
M27 |
3.58kg |
M60 |
19.00kg |
|
M30 |
4.54kg |
M64 |
21.21kg |
|
M33 |
5.61kg |
|
|
