2x3x4mm Rectangular LED Package 940nm IR LED 0.1W
11 month ago
- 940nm LED -
232IRC-94L12I60

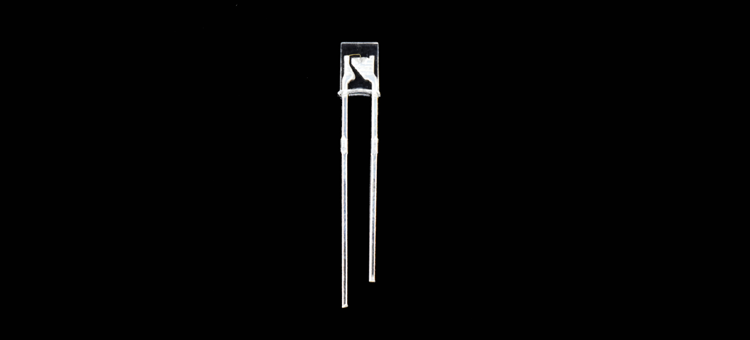

940nm LED through-hole 2*3*2mm size are easy to fit with different small PCB board or some small tiny circuit for your application or project. Since we can also packaged some different LED bare die with different wavelength inside of this 2*3*2mm through-hole LED case, like 850nm ect. People might hard to choose which wavelength will be better for their project? The main advantage of the 940nm LED is that it's totally invisible when it's working. Which means the light source doesn't emit any glow. Do you need something IR LED like this one? Contact us for more detail about it!
|
- Size: 2mm*3mm*4mm High - Pin length: 19mm/17mm
- Color: 940nm LED - Lens type: Clear - Chip brand: Epistar |
- Different color are available - Warranty: 5 Years - Different wavelength are available
- RoHS, REACH, EN62471
- Uniform light output |
- Low Power consumption - Long life-solid state reliability - Anti UV epoxy resin package - High temperature resistance |

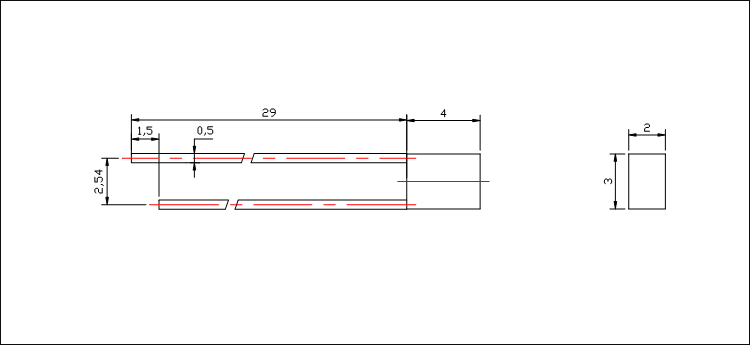

- Dimension Parameters -
. All dimensions are in millimeters ; 2. Tolerance is ± 0.10 mm unless otherwise noted.
*This case are also available for UV LED, Yellow LED, White LED, blue through-hole LED, red through-hole LED, IR LED ect.*
- Emitting Color -
* Colors in the photo was took by camera, please take actual emitting color as standard.
- Electrical Parameters -
|
Parameter |
Symbol |
Rating |
|
Power Dissipation |
Pd |
200mw |
|
Pulse Forward Current |
IFP |
500mA |
|
Forward Current |
IF |
100mA |
|
Reverse Voltage |
VR |
5V |
|
Junction Temperature |
Tj |
115°C |
|
Operating Tempertature |
Topr |
-40 - +80°C |
|
Storage Tempertature |
Tstg |
-40 - +100°C |
|
Soldering Temperature |
Tsol |
260°C |
|
Electro-Static-Discharge(HBM) |
ESD |
3000v |
|
Warranty |
Time |
5Years |
|
Antistatic bag |
Piece |
1000Bag |
|
*Pulse Forward Current Condition:Duty 1% and Pulse Width=10us. |
||
|
*Soldering Condition:Soldering condition must be completed with 3 seconds at 260°C |
||
|
Parameter |
Symbol |
Min |
Typ |
Max |
Unit |
Test Condition |
|
Radiant Intensity |
Ee |
3 |
|
7 |
mW/sr |
IF=20mA |
|
10 |
20 |
|
IF=50mA |
|||
|
18 |
|
30 |
IF=100mA |
|||
|
Viewing Angle |
2q1/2 |
|
120 |
|
deg |
IF=50mA |
|
Peak Wavelength |
λp |
930 |
940 |
960 |
nm |
IF=50mA |
|
Spectral Bandwidth |
Dl |
|
50 |
|
nm |
IF=50mA |
|
Forward Voltage |
VF |
1.2 |
1.3 |
1.5 |
V |
IF=20mA |
|
1.3 |
1.4 |
1.7 |
IF=50mA |
|||
|
1.4 |
1.5 |
1.9 |
IF=100mA |
|||
|
Reverse Current |
IR |
|
|
5 |
uA |
VR=5V |
|
*Luminous Intensity is measured by ZWL600. |
||||||
|
*2q1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity. |
||||||
|
*lD is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device. |
||||||
- Golden Wire Connection -
- Packing -
- Application -

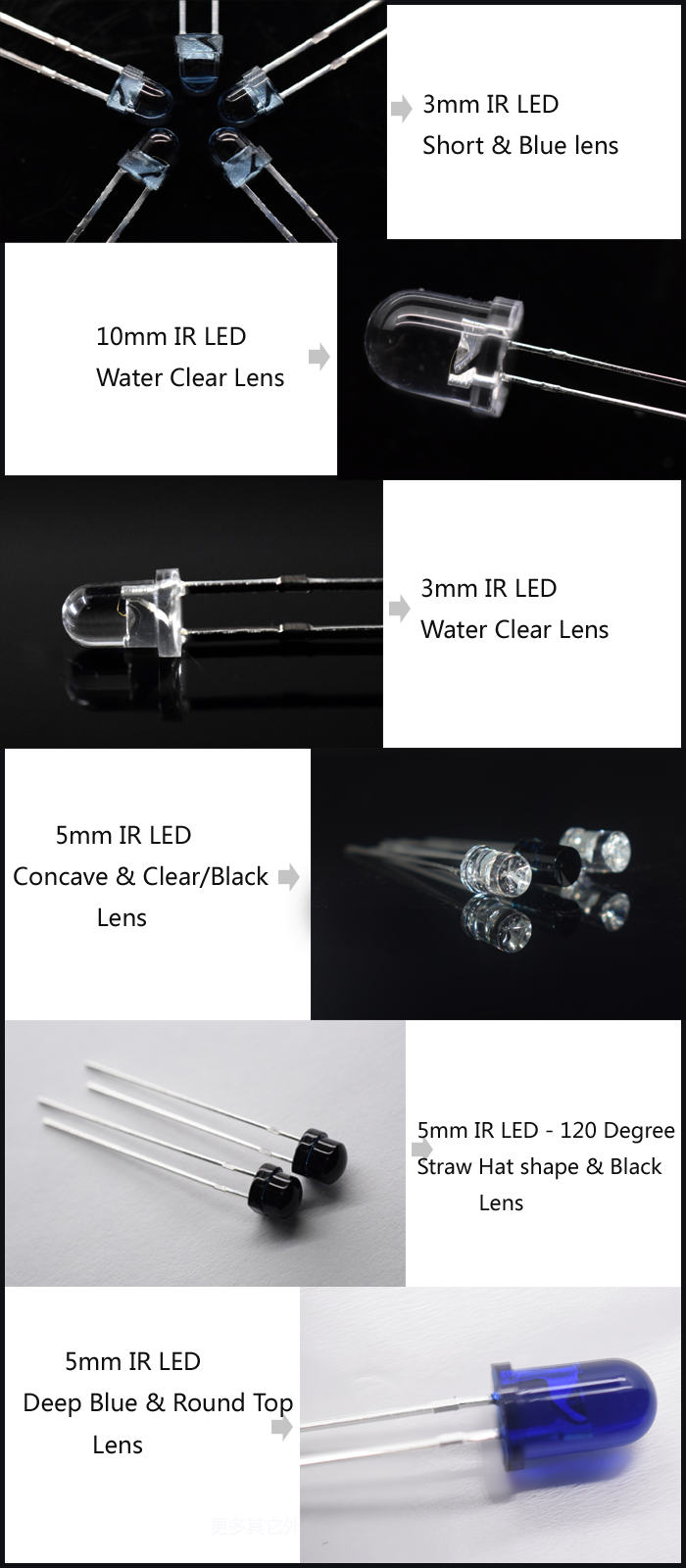

- Related IR LED -
