Unlocking the Potential of Horizontal Machining Centers: A Comprehensive Guide
In the rapidly evolving manufacturing industry, horizontal machining centers have emerged as a game-changer, revolutionizing the way parts are produced with utmost precision and efficiency.
Understanding Horizontal Machining Centers: Horizontal machining centers are advanced CNC tools that offer a wide range of capabilities, enabling manufacturers to produce complex parts with unparalleled accuracy. These machines feature a horizontal spindle orientation, allowing for multi-axis machining, increased tool capacity, and reduced setup times. By highlighting these unique features, businesses can attract potential customers searching for specific machining solutions.
Advantages of Horizontal Machining Centers:
a. Enhanced Productivity: With their ability to perform multiple machining operations in one setup, horizontal machining centers significantly reduce cycle times and increase productivity. This advantage can be emphasized in SEO content, targeting keywords such as "efficient machining solutions" or "time-saving machining centers."
b. Improved Accuracy: Horizontal machining centers boast high precision levels, ensuring consistent and accurate part production. By incorporating keywords like "precision machining" or "high-quality parts," businesses can attract customers looking for reliable manufacturing partners.
c. Versatility: Horizontal machining centers are designed to handle a wide range of materials and part sizes, making them suitable for various industries. By optimizing content with keywords like "versatile machining solutions" or "multi-material machining," businesses can reach a broader audience and expand their customer base.
Our Horizontal Machining Centers feature state-of-the-art technology to achieve precise machining. These centers also offer multi-axis capabilities, allowing for efficient production. Additionally, our CNC Surface Grinding Machines are designed for high-precision flat grinding, ensuring superior results. Furthermore, our Universal lathes provide versatility to meet a wide range of machining requirements.

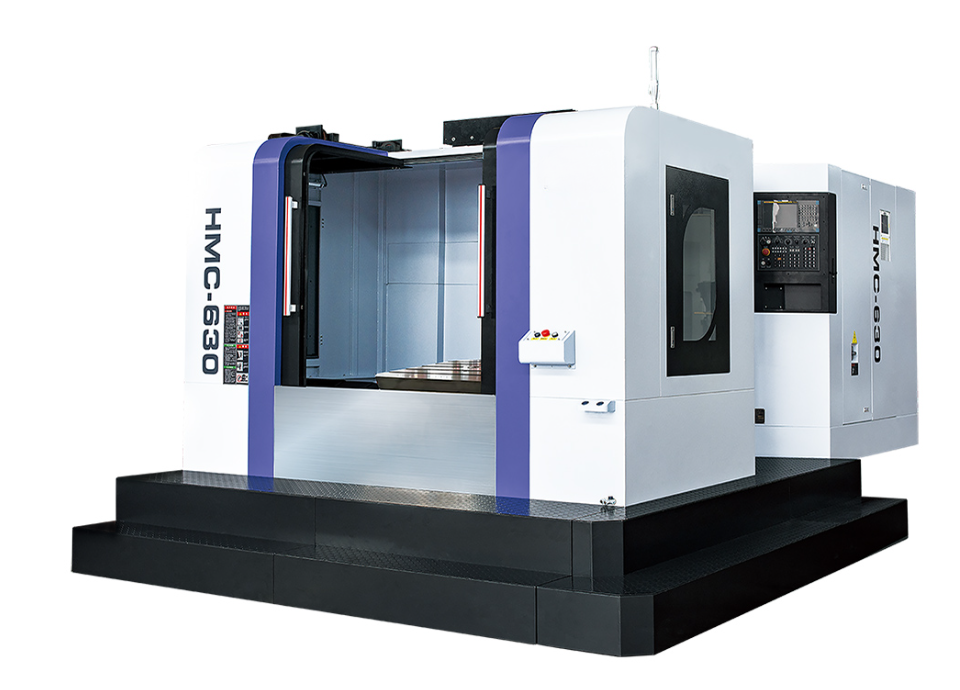

Specification
| ITEM | UNIT | HMC-630 | |
| TABLE | TABLE | mm | 630 x 630 |
| TABLE NO. | - | 1 | |
| TABLE INDEX | - | 1° x360 | |
| TABLE CHANGE TIME | S | - | |
| MAX LOADING | kg | 2000 | |
| T-SLOT (NO. x WxP) | mm | 5x 18x 100 | |
| MAX. SWING DIA. | mm | Φ1000 | |
| TRAVELI | TABLE MOVEMENT(X AXIS) | mm | 1000 |
| SPINDLE MOVEMENT(Y AXIS) | mm | 850 | |
| TABLE/ COLUMN MOVEMENT(Z AXIS) | mm | 950 | |
| SPINDLE CENTER TO TABLE SURFACE | mm | 0~850 | |
| SPINDLE NOSE TO TABLE CENTER | mm | 200-1150 | |
| SPINDLE | SPINDLE TAPPER | - | 190/BT50 |
| SPINDLE MAX SPEED | rpm | 8000 | |
| SPINDLE MOTOR | kw | 15/18.5 | |
| TOOL Magazine | TOOL STORAGE CAPACITY | - | 24/32/40 |
| TOOL SELECTION METHOD | - | Machine attachment | |
| MAX TOOL DIA./ LENGTH | mm | Φ125 x 400 | |
| MAX TOOL DIZ. (ADJ. POCKET EMPTY) | mm |
Φ120 (Full blade)
Φ220 (clearance)
|
|
| MAX TOOL WEIGHT | kg | 25 | |
| TIME FOR CHANGING TOOL CUTTER | S | 3.8 | |
| RAPID | X/Y/Z | m/min | 24/24/24 |
| PRECISION | POSITIONING (X/YIZ) | mm | 0.01 |
| POSITIONING (B AXIS) | '' | ±4 | |
| REPEATABILTY (X/YIZ) | mm | 0.005 | |
| REPEATABILITY (B AXIS) | '' | ±1 | |
| OTHERS | CONTROLLER | FANUC/MITSUBISHI/SYNTEC | |
| AIR SOURCE | AIR FLOW: L /min | 500 | |
| AIR PRESSURE: Mpa | 0.5~0.8 | ||
| MACHINE DIMENSION | mm | 5100x 3100 x 3000 | |
| MACHINE WEIGHT | kg | 4500 |
Note: Our company reserves the right to change the specification without advance notice.
