Negative Voltage Regulators 7912CV TO220

11 month ago

28 0 

YANGZHOU POSITIONING TECH CO., LTD.

7 year

Product details

Part No. ：YZPST-7912CV Negative Voltage Regulators

Package：TO-220

NPN

Absolute Maximum Ratings Tc=25℃

Symbol	Parameter	Value	UNIT
VI	Input Voltage	-35	V
TOPR	Operating Temperature Range	0 ～ +125	℃
TSTG	Storage Temperature Range	-65 ～+150	℃

Electrical Characteristics Tc ＝25℃

(VI = -19V, IO = 500mA, 0°C ≤TJ ≤ +125°C, CI =2.2μF, CO =1μF, unless otherwise specified.)

Parameter	Symbol	Test Condition		MIN	TYP	MAX	UNI T
Output Voltage	VO	TJ = +25℃		-11.5	-12	-12.5	V
		IO = 5mA to 1A, PO ≤ 15W VI = -15.5V to -27V		-11.4	-12	-12.6
Line Regulation (Note1)	ΔVO	TJ = +25℃	VI = -14.5V to -30V		12	240	mV
			VI = -16V to -22V		6	120
Load Regulation (Note1)	ΔVO	TJ = +25℃ IO = 5mA to 1.5A			12	240	mV
		TJ = +25℃ IO = 250mA to 750mA			4	120
Quiescent Current	IQ	TJ = +25℃			3	6	mA
Quiescent Current Change	ΔIQ	IO = 5mA to 1A			0.05	0.5	mA
		VI = -14.5V to -30V			0.1	1
Quiescent Current Change	ΔVo/ΔT	IO = 5mA			-0.8		mV/ ℃
Short Circuit Current	ISC	TJ = +25°C, VI = -35V			300		mA

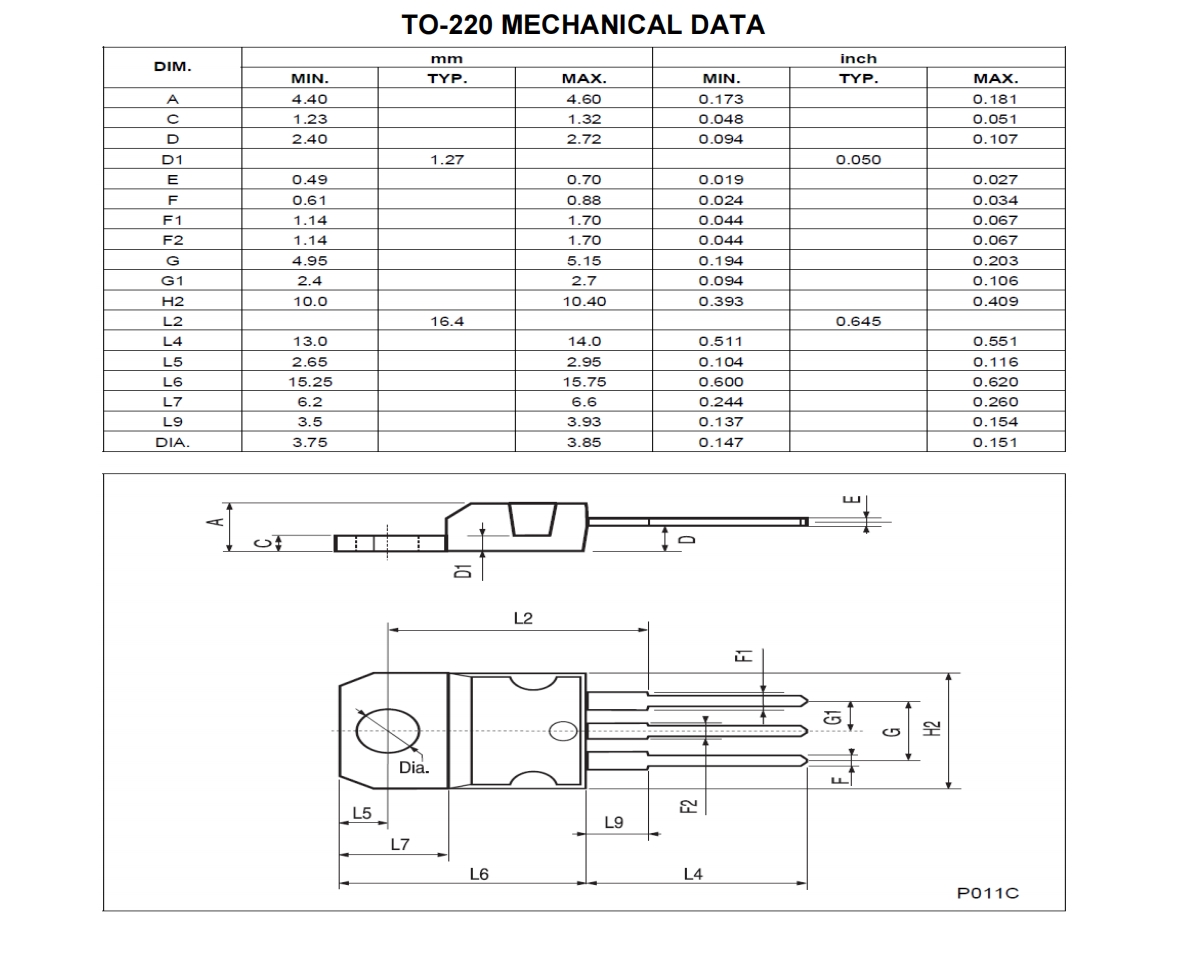

Package Demensions
