4/3C slurry pump for cantilever, horizontal centrifugal slurry pump, belongs to the fractional series slurry pump.

Model of 4/3C slurry pump and 4/3C slurry pump

4: the suction diameter of 4/3C horizontal slurry pump is divided by 25

3: 4/3C&4/3C- slurry pump outlet diameter is 25 divided

C: bracket form

A: slurry pump

H: high lift slurry pump

4/ 3C slurry pump specific parameters:

Flow (Q) : 86.4-198m cubed /h

Head (H) : 9-52m

Maximum power (KW) allowed: 30KW

Speed (N) : 1000-2200 revolutions

Maximum efficiency: 71

Cavitation allowance (NPSH)r: 4-6

Maximum shaft power: 22.54kw

Weight: 263 kg

Suction diameter: 102mm

Spit diameter: 76mm

Impeller diameter: 245mm

Number of leaves: 5

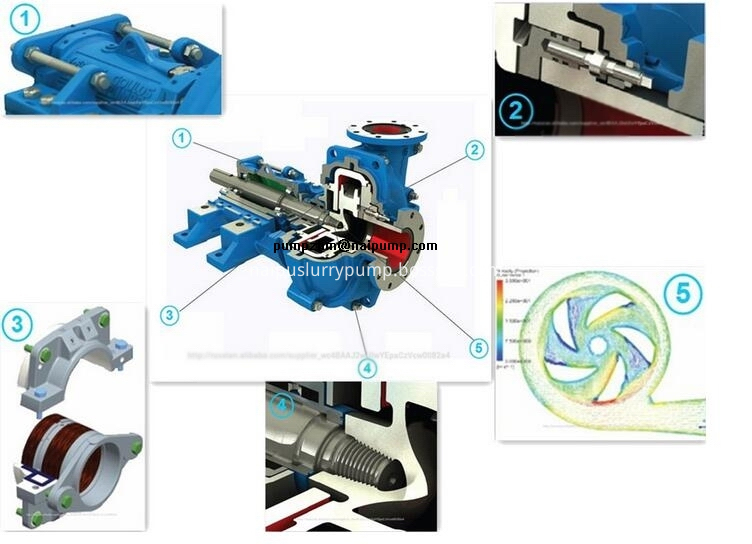

Slurry pump structure description:

The pump body adopts a double-layer pump shell with a horizontally open shell structure. The outlet position can be rotated 8 different positions according to 45° interval for installation.

Shaft seal: packing seal, auxiliary impeller seal, mechanical seal;

Bracket form: cylinder type, suspension type.

Shijiazhuang Naipu Pump Co.,ltd

 mainly produces and sells slurry pump, dredge pump, desulfurization pump, gravel pump and other relevant whole pump products, as well as slurry pump accessories, dredge pump accessories, desulfurization pump accessories, sand gravel pump accessories finished products and blanks, we also provide to map to sample processing, and mapping customized services.

The products are mainly used in: mining, metallurgy, coal, building materials, power plant, chemical industry, petroleum, sand dredging, flue gas desulfurization and other industries part of the transmission tailings, refined ore, ash, slime, gravel and other media.

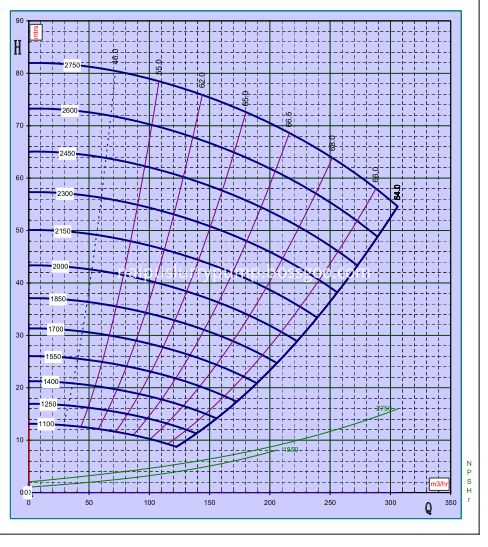

The Performance curve of 4/3C Slurry pump
