Galvanized Field Fence
7 month agoHinge Joint Field Fence for Grassland
Field Fence is made by our own factory in Dingzhou. We are focusing on the manufacture of varies metal wire and wire mesh. Field fencing has four wrap hinge joint, in which two vertical stay wires wrap together to from hinged joint. This knot acts as a hinge that gives under pressure, then springs back into shape. This provides easy installation because the hinge "gives" while retaining full height for continuing protection and good looks. Vertical wires are individually cut and wrapped for maximum strength and flexibility. Hinge joint fence is always called farm fencing. Its excellent corrosion resistance and anti-oxidizing property exceed common steel wire mesh. Our metal fence is forever firm once installed, the users need not worry about the breaking of welding spots by using of weld wire mesh.
Green Coating Welded Fence Panel, Galvanized Chain Link Fence for Play Yard, Galvanized Hexagonal Wire Netting and Euro Fence.
Specifications
NO.
|
Specification of prairie fence | Weight | Bottom | Dia. | |
Type | Specification( Unit: mm) | ( kg) | (mm) | (mm) | |
1 | 7/150/813/50 | 102+114+127+140+152+178 | 20.8 | 2.5 | 2 |
2 | 8/150/813/50 | 89(75)+89+102+114+127+140+178 | 21.6 | 2.5 | 2 |
3 | 8/150/902/50 | 89+102+114+127+140+152+178 | 22.6 | 2.5 | 2 |
4 | 8/150/1016/50 | 102+114+127+140+152+178+203 | 23.6 | 2.5 | 2 |
5 | 8/150/1143/50 | 114+127+140+152+178+203+229 | 23.9 | 2.5 | 2 |
6 | 9/150/991/50 | 89(75)+89+102+114+127+140+152+178 | 26 | 2.5 | 2 |
7 | 9/150/1245/50 | 102+114+127+140+140+152+178+203+229 | 27.3 | 2.5 | 2 |
8 | 10/150/1194/50 | 89(75)+89+102+114+127+140+152+178+203+229 | 28.4 | 2.5 | 2 |
9 | 10/150/1334/50 | 89+102+114+127+140+152+178+203+229 | 30.8 | 2.5 | 2 |
10 | 11/150/1422/50 | 89(75)+89+102+114+127+140+152+178+203+229 | 19.3 | 2.5 | 2 |

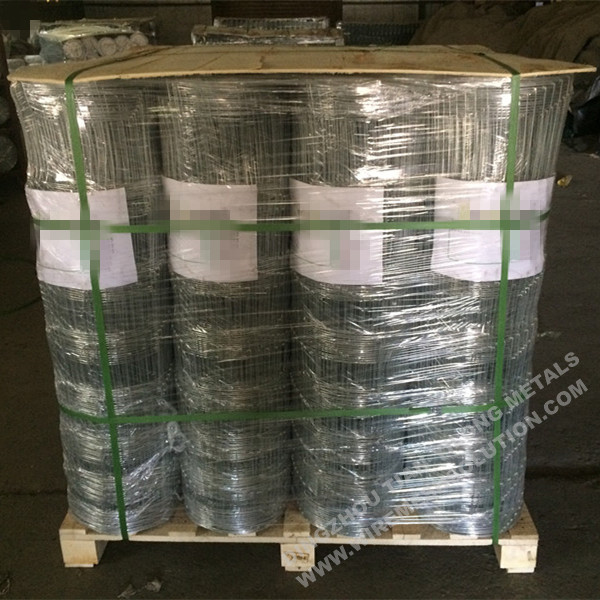

Packaging and Accessories
Each roll packed with plastic film then bluk into container
Each roll packaed with plastic film with pallet
As per customers requirements

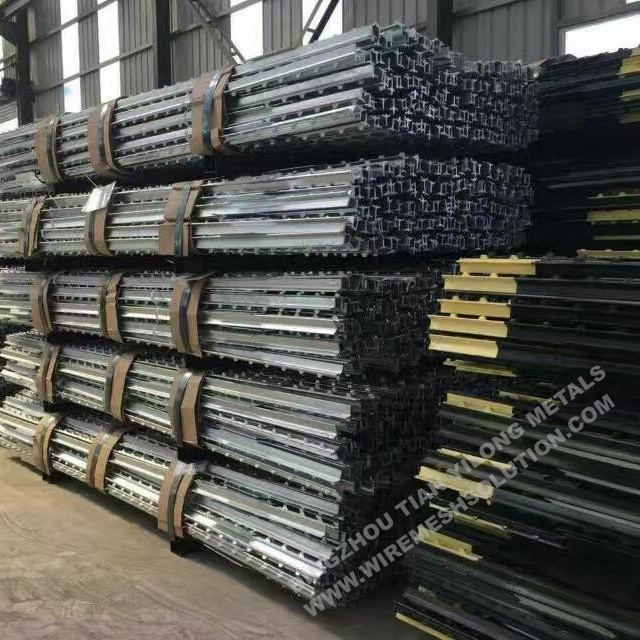

Field fence usually goes with fitting post
1. Could you provide free sample?
Yes, we can provide free sample in a small piece together with our catalogue. But the courier charge will be paid on your side. We will send back the courier charge if you place an order.
2. What is the Payment Term?
Generally, our payment term is T/T 30% in advance, 70% against the copy of B/L. Other payment terms can also be discussed.
3. How is your delivery time?
Usually according to your items, the delivery time for one 20` feet container is 25 days. We could also adjust the production time on your urgent order.
4. Do you know the shipping fee to my port of my country?
Yes. We have our agent who is in charge of the shipping issues. We will offer you the best vessel and charge.
5. Where are you? Can I visit you?
Sure, we are in Dingzhou city, Hebei Province, 280km distance to Beijing. There are many flights from Shanghai, Guangzhou to Shijiazhuang city, which is very near to Dingzhou. Please contact us to make an appointment.
