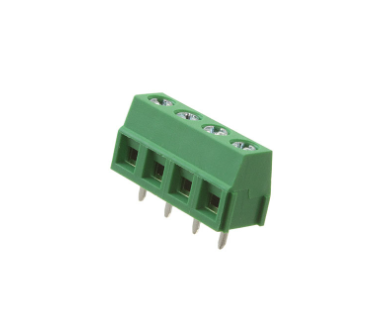

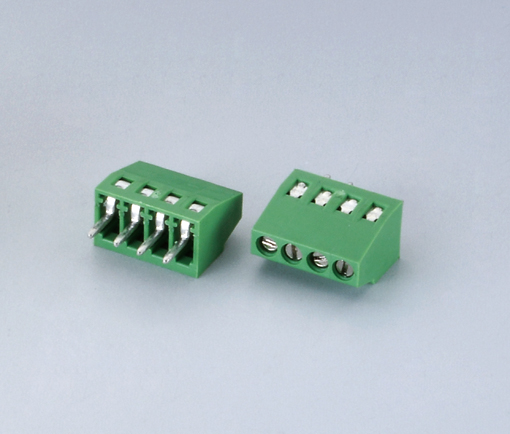

2.54mm 180 Dip Terminal Block
A 2.54mm 180 Dip Terminal Block is an electrical connector used in electronics, featuring terminals spaced 2.54 millimeters apart (pitch) for compatibility with standard PCB designs. The "180 Dip" configuration indicates terminals are aligned in a straight line, suitable for through-hole mounting on PCBs.
Terminal blocks facilitate easy connection and disconnection of wires without soldering, utilizing screw terminals or other clamping mechanisms. They are compact, making them suitable for space-constrained applications, and provide a reliable means to manage and distribute electrical signals within electronic circuits. These blocks are essential for ensuring secure electrical connections in various electronic devices, from consumer electronics to industrial equipment, where robust and dependable interconnectivity is crucial for performance and reliability.

Overview:

2.54mm Pitch Screw Terminal Block Connector.
Rated Voltage: 150V; Rated Current: 6A.
Screw terminals accomodate wire sizes from 18AWG to 26AWG.
Quick Connection: Screw Terminal on header provide secure connection and quick disconnection.
Widely Applications: It is well-suited for interfacing with I/O cards, data acquisition (DAQ) equipment, and any other device that uses a 2.54mm/0.1in header connector. Applications include the Raspberry Pi A+, B+, 2B, and 3B boards, Arduino, all of which use a 0.1" pitch pin header for their GPIO expansion ports..

Feature:

Pitch: 2.54mm/0.1”

PIN: 2P, 3P, 4P
Pin Header: Brass, Tin plated
Screw: M1.6, steel, tin plated
Clips: Stainless Steel
Housing: PA66, UL94V-0
Rated Voltage: 150V
Rated Current: 6A
Withstanding Voltage: AC 1250V/ 1Min
Wire Range: 26-18AWG(UL)
Wire Range: 1mm2(IEC)
Temperature Range: -40° ~ +105°
Stripping length: 5-6mm
Maximum tightening torque: 0.1Nm(0.88lb-in)

Application:

The 2.54mm 180 Dip Terminal Block finds application in various electronic and electrical systems where reliable and secure wire-to-board connections are essential. Some common applications include:

Printed Circuit Boards (PCBs): Used for connecting wires to PCBs in electronic devices such as computers, telecommunications equipment, and consumer electronics.

Power Supplies: Facilitates connections between wires and power supply units, ensuring efficient power distribution and management.

Industrial Control Systems: Provides a means to connect control signals and power lines in industrial automation and control panels.

Automotive Electronics: Used in vehicle electronics for connecting sensors, actuators, and control modules.

Telecommunications: Enables connections in networking equipment, telecom switches, and routers for signal transmission.

Instrumentation: Used in test and measurement equipment for connecting sensors, probes, and data acquisition modules.

Audio/Video Equipment: Facilitates connections in audio/video devices for signal transmission and interfacing.

LED Lighting: Used to connect power and control lines in LED lighting fixtures and displays.

The 2.54mm 180 Dip Terminal Block offers several advantages in electronic and electrical applications:

Standardized Pitch: The 2.54mm pitch (spacing between terminals) is widely recognized and compatible with standard PCB layouts, ensuring ease of integration into existing designs.

Versatility: Suitable for a wide range of wire gauges and types, accommodating various application requirements.

Ease of Installation: Designed for through-hole mounting on PCBs, simplifying assembly and reducing manufacturing time.

Secure Connections: Provides a stable and secure connection for wires through screw terminals or other clamping mechanisms, minimizing the risk of loose connections.

Flexibility: Allows for easy maintenance and modification without the need for soldering, enabling quick repairs or upgrades.

Reliability: Ensures consistent electrical performance and signal integrity, crucial for sensitive electronic circuits.

Space Efficiency: Compact design saves space on PCBs, suitable for compact electronic devices and densely populated PCBs.

Cost-Effectiveness: Economical solution for establishing multiple connections on a single PCB, contributing to overall cost savings in production.

Durability: Constructed from durable materials such as plastics or metals, providing mechanical strength and long-term reliability in various environmental conditions.
