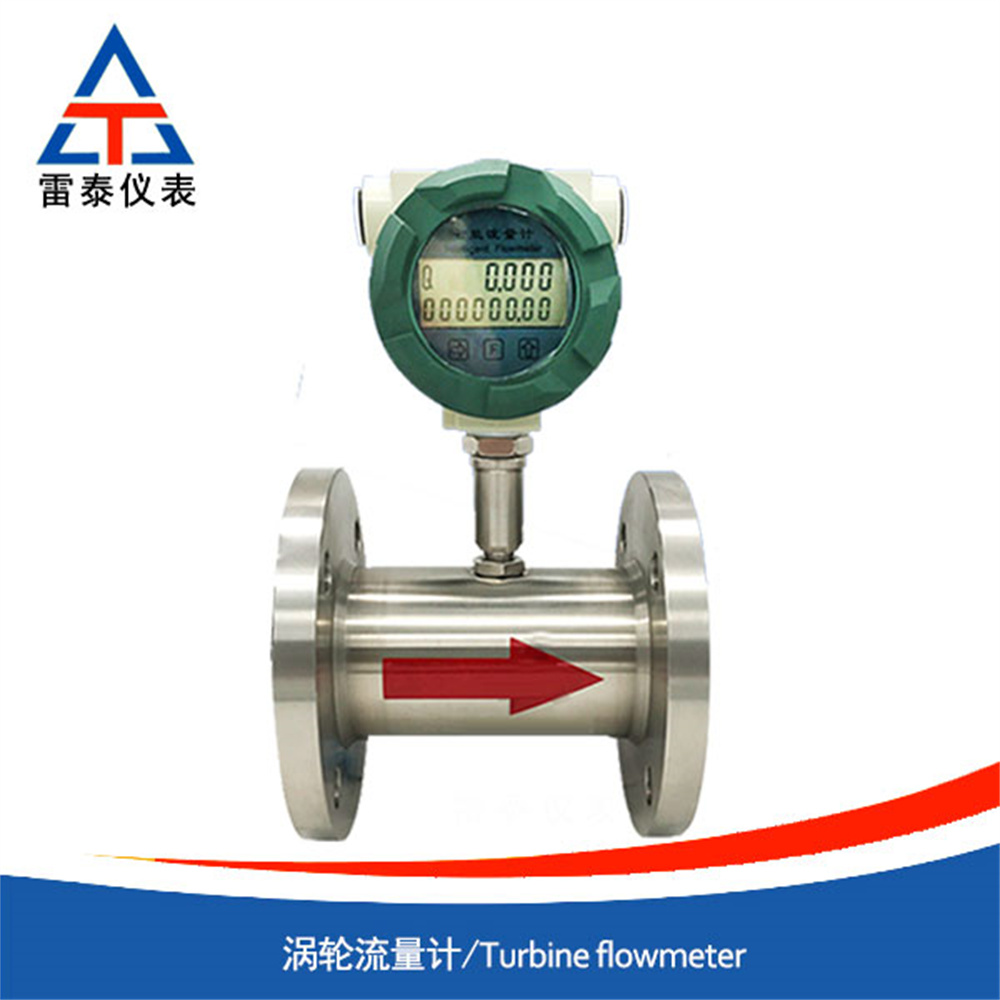

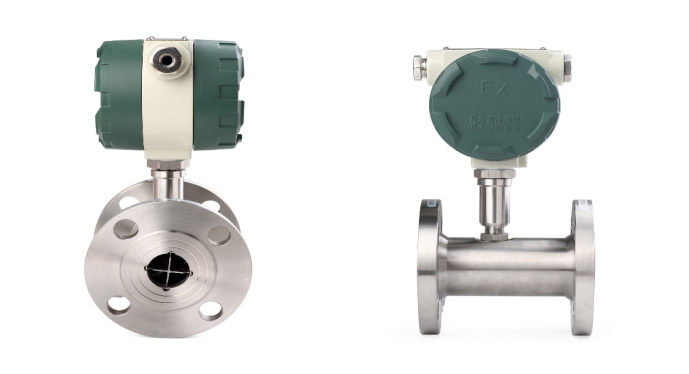

Small diameter turbine flowmeter
11 month ago
2. Imported special bearings with long service life
3. The measurement room is isolated from the ventilation room to ensure the safety of the instrument.
4. It can detect the temperature, pressure and flow rate of the gas being measured, automatically track and compensate the flow rate, and display the gas volume accumulation in the standard state;
5. Temperature and pressure values can be queried in real time with a wide flow range, good repeatability, high accuracy, small pressure loss, and low starting flow.
6. Multi-point nonlinear correction of intelligent instrument coefficients
7. Built-in pressure and temperature sensors, high safety performance, compact structure and beautiful appearance
8. The system works with low power consumption. One 3.2V10AH lithium battery can be used continuously for more than 3 years.
9. The instrument coefficient and accumulated flow value will not be lost after ten years of power outage.
Product model: Turbine flow meter
Implementation standard: Turbine flow sensor (GB/T 8940-2003)
Instrument diameter: DN20～DN300
Accuracy level: 1.0 (regular); 0.5 (special customization)
Range ratio: 1:10, 1:20, 1:30 can be customized
Sensor material: 304 stainless steel, 316 (L) stainless steel, etc.
Conditions of use: medium temperature: -20℃~+120℃; ambient temperature: -20℃~+50℃;
Relative humidity: 5%~90%; Atmospheric pressure: 86Kpa~106Kpa
Signal output function: 4~20mA signal, pulse signal, frequency, control level
Communication output function: RS485 communication
Power supply method: 24VDC±15%/lithium battery power supply
Signal line interface: Hirschmann connector, three-core cable, internal thread
Protection level: IP65 or higher (can be customized)
Connection method: thread (≤DN50), flange (≥DN65)
