Weaving process

High voltage cables for new energy vehicles should not only meet the common requirements of general fuel road vehicles, such as oil resistance, excellent electrical properties, excellent high and low temperature performance, mechanical properties, heat resistance, but also meet the special requirements of electric vehicle lines, such as high load current capacity, resistance to battery fluid overflow corrosion of cables and other characteristics.

Product advantage

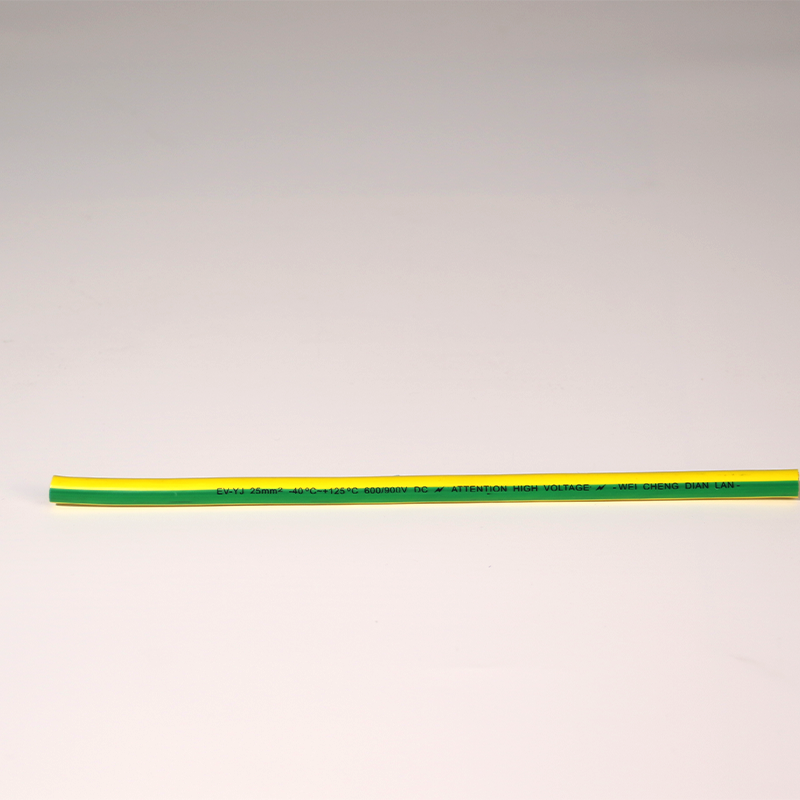

The cable is used for high-voltage series control cables for new energy vehicles; High conductor softness; The insulation and sheath materials have very excellent environmental requirements (RoHS, REACH, low smoke, halogen free), and the cable is safe and reliable

Technical requirements:

1. The finished cable performance meets the requirements of GB/T 25085/ISO6722 standard;

2. Temperature rating: -40℃ ~ +125℃;

3. Rated voltage: 1500V DC;

4. The minimum bending radius of the cable is 5 x OD(OD is the diameter of the cable).

5.20℃ Conductor DC resistance: 50mm²≤0.368Ω/km

6. Mechanical properties before aging: elongation at break ≥200%, tensile strength ≥10.30Mpa;

7. Short-term aging: 150℃±3℃×240h, no cracking;

8. Cold bending test: -40℃±2℃×4h, no cracking;

9. Finished product voltage: 5KV/5min;

10. Spark voltage: 8KVAC;

11. The flame retardant grade meets the requirement of 70S self-extinguishing;

12. Environmental protection in line with ROHS standards;

 13. Packing: axle packing or negotiating with customers.
