PE800 pipe extrusion production line

10 month ago

1 0 

2 year

Product details

Description:

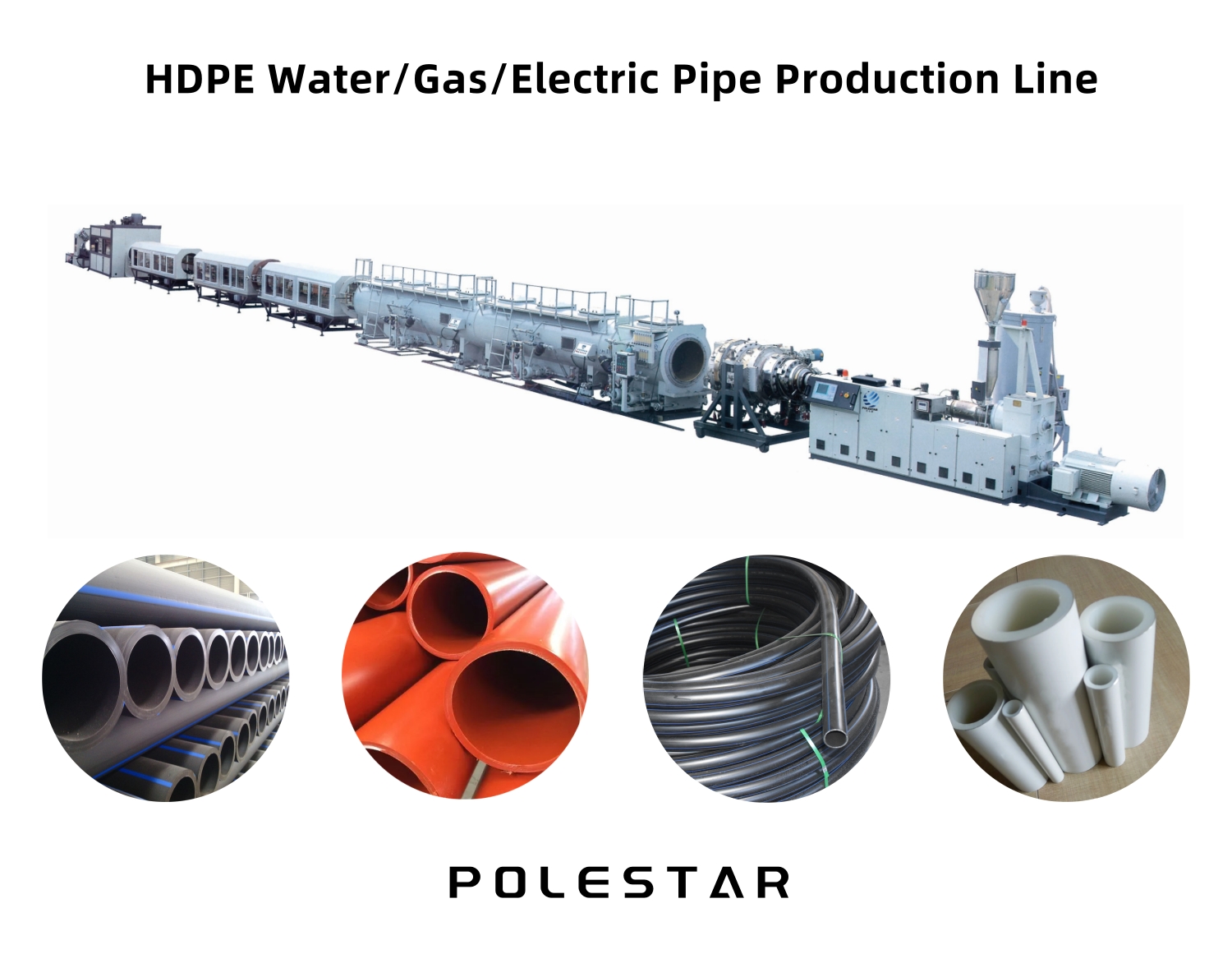

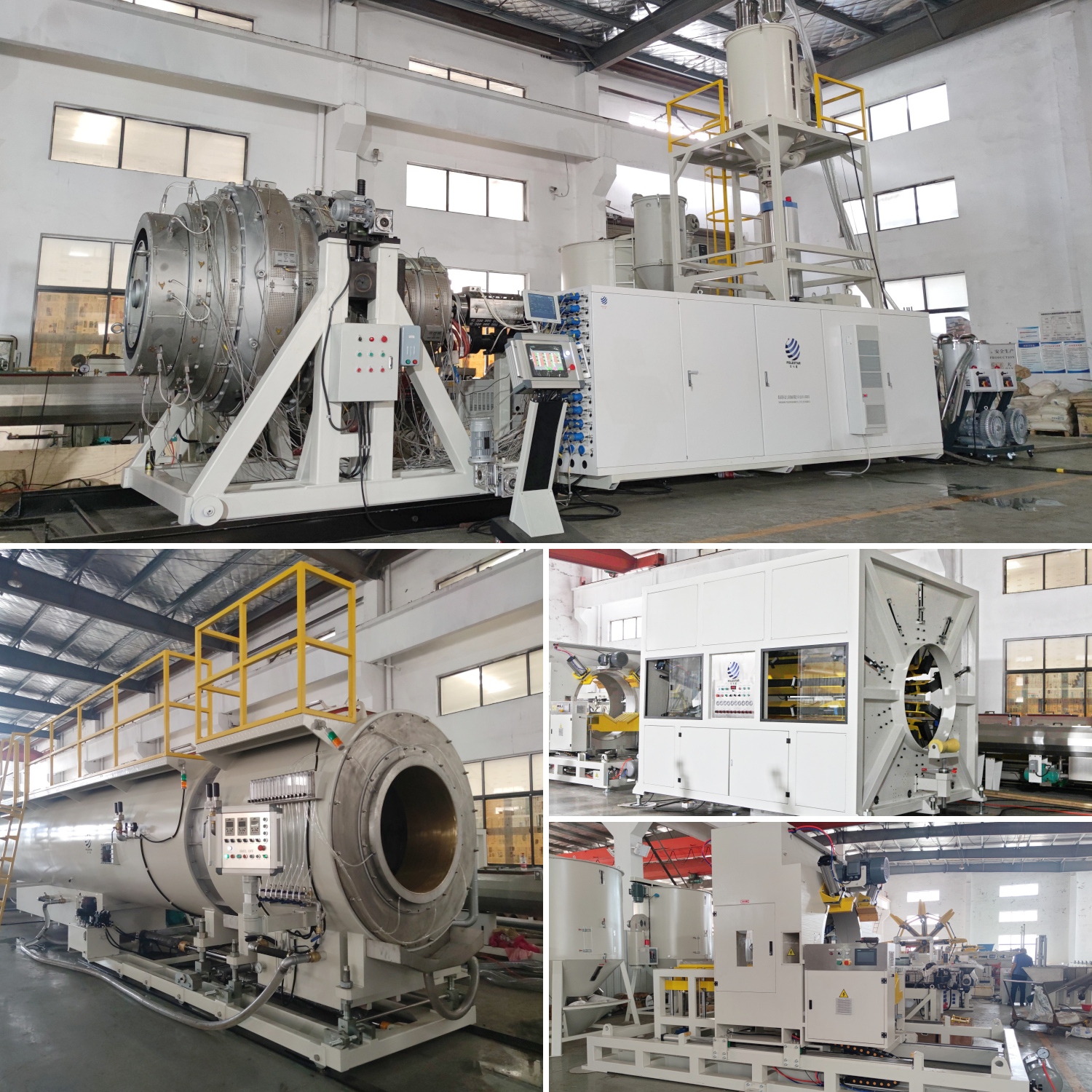

The plastic pipe production line can be widely used in the production of water supply pipe, gas pipe, electrical pipe, building drainage pipe, etc. The main parts are single screw extruder, mold, vacuum setting tank, cooling water tank, tractor, cutting device, stacker or pipe winding machine.

Application:

HDPE pipes have many advantages and are widely used in water, gas and power systems. HDPE pipes are made of high-density polyethylene, a thermoplastic polymer known for its toughness, flexibility and resistance to corrosion and chemical degradation. They come in different diameters to meet a variety of water supply needs.
Modified polypropylene (MPP) power cable protection pipe is a new type of plastic pipe, using modified polypropylene as the main raw material, using special formula and processing technology. It has a series of advantages such as high strength, high temperature resistance, simple construction and cost saving.

Features and Advantages:

The optimum spiral feed port greatly increases the output of the extruder.
Precise temperature control system ensures material melting performance.
The unique screw design enables better plasticization and high quality products.
The precision design of the high-torque transmission ensures stable operation.
The "H" frame reduces extruder vibration.
Advanced PLC operating system for synchronization and automation.
Automatic water temperature and level control, vacuum and cooling tanks are equipped with special individual filters.
Provides stable traction with 2-12 track traction straps.
Saw blades and chip-free and planetary cutting options are available.
Low energy consumption, excellent performance and easy maintenance.

Production Line Flow Chart:

Raw material+additive → mixing → vacuum feeding machine → hopper dryer → single screw extruder → extrusion mold → calibrators → vacuum calibration tank → water cooling tank → haul-off machine → cutting machine → stacker or pipe winder

Main Technical Parameter：

Model	Pipe Range(mm)	Extruder Model	Max Hauling Speed(m/min)	Main Motor Power(kw)	Max Extrusion Output(kg/hour)
BQX63	20-63	SJ65/33	12	55	150
BQX110	20-110	SJ65/33	10	75	180
BQX160	75-160	SJ75/33	8	110	350
BQX250	90-250	SJ75/33	5	110	350
BQX315	110-315	SJ90/33	3	160	450
BQX450	160-450	SJ90/33	2	160	450
BQX630	315-630	SJ120/33	1.6	280	850
BQX800	500-800	SJ120/33	0.8	280	850
BQX1000	630-1000	SJ150/33	0.8	400	1200
BQX1200	710-1200	SJ150/33	0.6	400	1200
BQX1600	1000-1600	SJ120/33 & SJ90/33	0.3	280+160	1400
