Heating & cooling roller flow channel system

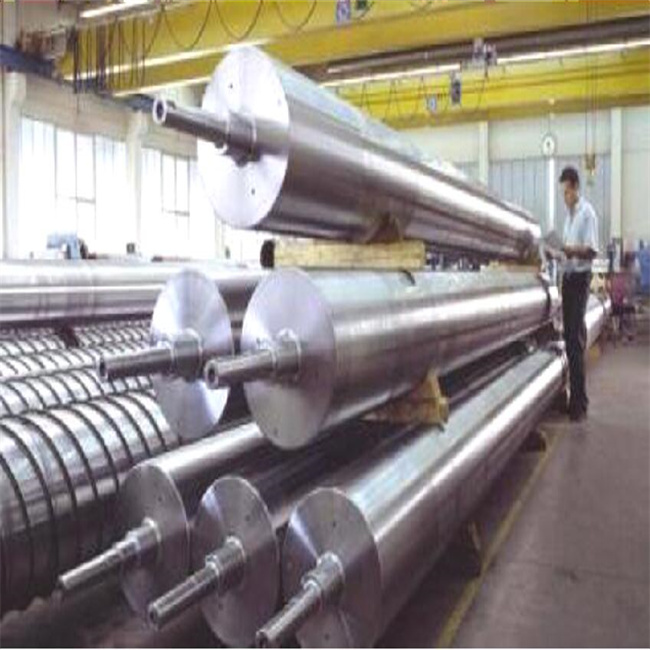

    Cooling Roller for BOPP BOPET FILM

Introduction:

 At present, the internal structure of the cooling roller is divided into a double-layer single-flow setting and a double-layer double-flow setting. The internal medium is water or heat transfer oil. The internal structures of these two types are different, and the manufacturing processes are also different. Have a big impact on costs.

1. Internal structure of expanded single-flow cooling roller: This model heat transfer cooling roller is composed of an outer shell, an inner shell and a spiral baffle on the inner shell. Water or thermal oil circulates from the pipe into the internal single-flow thermal pipe, starting from the other side wall, thereby removing the heat. To achieve oxygen purpose.

2. Internal structure of double-layer double-flow cooling roller: This model of heat-conducting cooling roller is composed of an outer shell, an inner shell and a spiral baffle on the inner shell. Therefore, unlike the above, this heat-conducting roller adopts a double-layer double flow. Aluminum alloy recycling method. Water or thermal oil circulates from the duct pipe into the heat transfer duct through the internal flow. Its dual efficiency is high, the production process is complex, and the cost is high.

Cooling Roller Production Crafts:

Double-shell construction type 2OS

Inner and outer tube from S355

Flow-System:channels between inner and outer tube separated with welded leading spirals

Disc/Shaft construction: Shrinked and welded shafts and side discs from Q345B

SURFACE: chrome-coating, ceramic-coating, anti-sticking coating

STATIC AND DYNAMIC REQUIREMENT, TOLERANCE:

cylinder form <=0.1mm  Out of roundness <=0.1mm

Dynamic balancing G2.5

Except Cooling Roller, we can also offer : Chill Roller,casting roller,Preheater roller,Stretching Roller ,Setting roller,Gravure Roller,Guide roller,Vacuum Suction Roller,Corona Roller,Corona Nip roller,Contact roller,Carbon fiber floating roller
