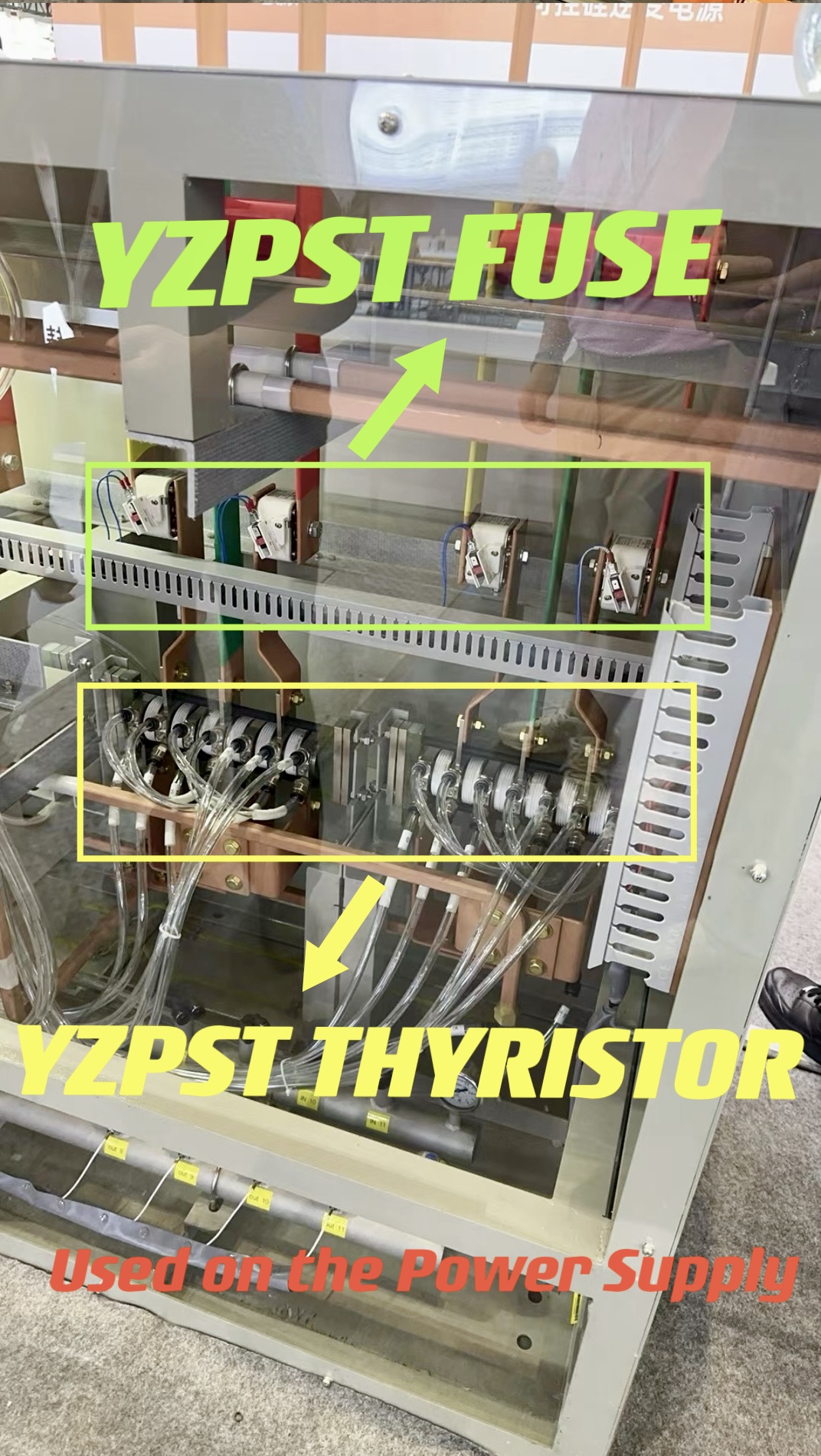

YZPST-C712L HIGH POWER THYRISTOR

VRRM (1)

VDRM (1)

VRSM (1)

  2000

  2000

 2100

Repetitive peak reverse leakage and off state leakage

I_{RRM /} I_DRM

20 mA

90 mA (3)

Critical rate of voltage rise

dV/dt (4)

800 V/msec

Parameter

Symbol

Min.

Max.

Typ.

Units

Conditions

Average value of on-state current

I_T(AV)

1185

A

Sinewave,180^o conduction,T_c=80^oC

RMS value of on-state current

I_TRMS

1700

A

Nominal value

Peak one cPSTCle surge

(non repetitive) current

I_TSM

-

18500

A

A

8.3 msec (60Hz), sinusoidal wave-

shape, 180^o conduction, T_j = 125 ^oC

10.0 msec (50Hz), sinusoidal wave-

shape, 180^o conduction, T_j = 125 ^oC

I square t

I²t

1.66x10⁶

A²s

8.3 msec and 10.0 msec

Latching current

I_L

-

mA

V_D = 24 V; R_L= 12 ohms

Holding current

I_H

-

mA

V_{D =} 24 V; I = 2.5 A

Peak on-state voltage

V_TM

1.45

V

I_TM = 1000 A; Duty Cycle £ 0.01%; T_j =1 25 ^oC

Critical rate of rise of on-state

current (5, 6)

di/dt

800

A/ms

Switching from V_DRM £ 1000 V,

non-repetitive

Critical rate of rise of on-state

current (6)

di/dt

200

A/ms

Switching from V_DRM £ 1000 V

Parameter

Symbol

Min.

Max.

Typ.

Units

Conditions

Peak gate power dissipation

P_GM

100

W

t_p = 40 us

Average gate power dissipation

P_G(AV)

5

W

Peak gate current

I_GM

-

A

Gate current required to trigger all units

I_GT

-

120

-

mA

mA

mA

V_D = 6 V;R_L = 3 ohms;T_j = -40 ^oC

V_D = 6 V;R_L = 3 ohms;T_j = +25 ^oC

V_D = 6 V;R_L = 3 ohms;T_j = +125^oC

Gate voltage required to trigger all units

V_GT

-

3.0

-

V

V

V

V_D = 6 V;R_L = 3 ohms;T_j = -40 ^oC

V_D = 6 V;R_L = 3 ohms;T_j = 0-125^oC

V_D = Rated V_DRM; R_L = 1000 ohms;

T_j = + 125 ^oC

Peak negative voltage

V_GRM

20

V

Parameter

Symbol

Min.

Max.

Typ.

Units

Conditions

Delay time

t_d

-

0.7

ms

I_TM = 50 A; V_D = Rated V_DRM

Gate pulse: V_G = 20 V; R_G = 20 ohms; t_r = 0.1 ms; t_p = 20 ms

Turn-off time (with V_R = -50 V)

t_q

40

-

ms

I_TM = 1000 A; di/dt = 25 A/ms;

V_R ³ -50 V; Re-applied dV/dt = 20 V/ms linear to 80% V_DRM; V_G = 0;

T_j = 125 ^oC; Duty cPSTCle ³ 0.01%

Reverse recovery charge

Q_rr

*

mC

I_TM = 1000 A; di/dt = 25 A/ms;

V_R ³ -50 V

Parameter

Symbol

Min.

Max.

Typ.

Units

Conditions

Operating temperature

T_j

-40

+125

^oC

Storage temperature

T_stg

-40

+125

^oC

Thermal resistance - junction to case

R_Q (j-c)

0.023

-

^oC/W

Double sided cooled

Single sided cooled

Thermal resistamce - case to sink

R_Q (c-s)

0.0075

-

^oC/W

Double sided cooled *

Single sided cooled *

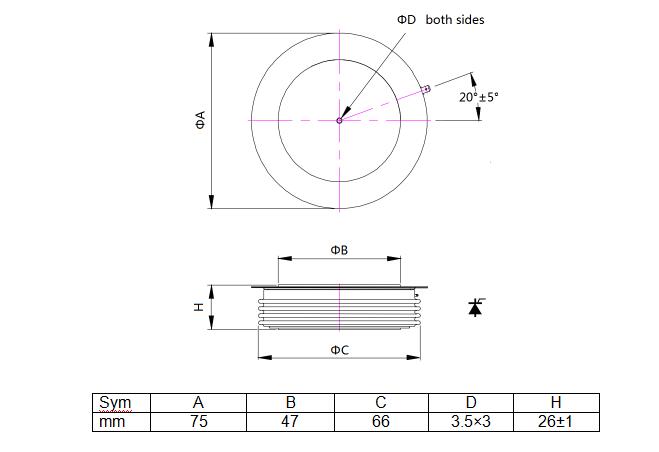

Mounting force

P

22.2

26.6

kN

Weight

W

-

g
