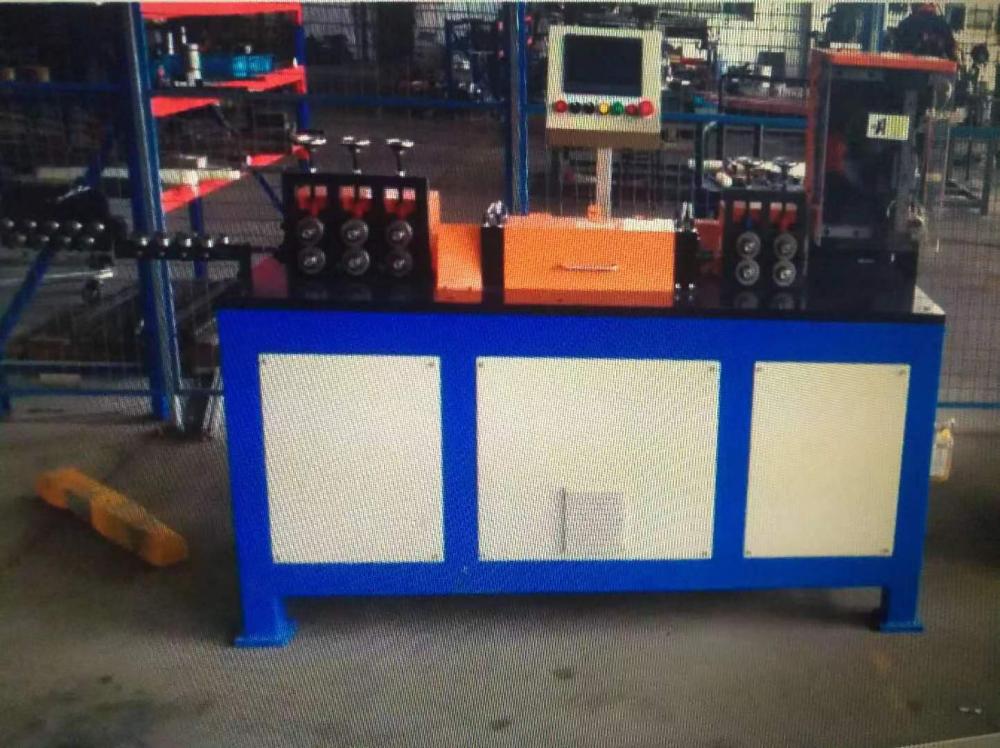

straightening and cutting machine

Straightening machine, also known as straightening machine, straightening and cutting machine, straightening and cutting machine. The straightening and cutting machine belongs to a type of straightening equipment. Used for straightening and cutting steel bars with a diameter of less than 14 millimeters, the cutting length can be customized according to customer requirements. Adjustable straight cutting of stainless steel wire, aluminum wire, cold drawn wire, plastic coated steel wire, etc., with neat cuts, small errors, and good performance.

Operating principle: The electric motor drives the speed increase through a belt, causing the straightening cylinder to rotate at high speed. The steel bars passing through the straightening cylinder are straightened, and the rust on the surface of the steel bars is removed by the straightening die; The electric motor drives the hammer head up and down through another pair of reduction belts and a gear reducer. On the one hand, it drives two conveying pressure rollers to pull the steel bars forward, and on the other hand, it drives the crank wheel to move the hammer head up and down. When the steel bars are adjusted to the predetermined length, the hammer strikes the knife holder to cut the steel bars. When the cut steel bars fall into the receiving frame, due to the action of the spring, the knife holder returns to its original position, completing a cycle.

The before step is wire drawing machine,then straightening and cutting machine,the assisting machine is butt welding machine,pointing machine and so on.
