Gyratory Sifter for high purity Quartz sand Sieving

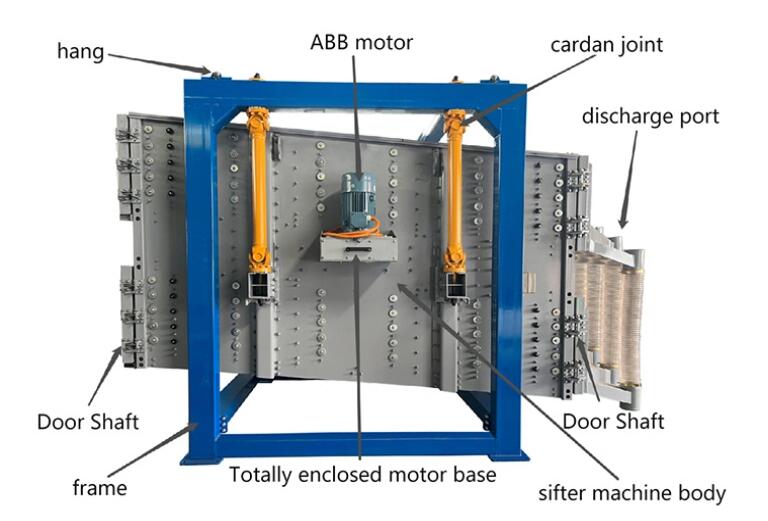

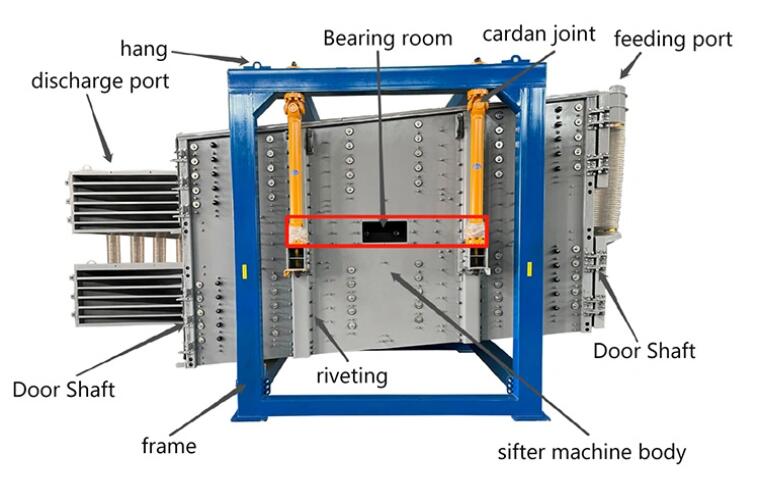

Gyratory Sifter Details
High-purity quartz sand has extremely strict requirements on the composition, which requires that the size and shape of all particles must be highly consistent and uniform. Quartz sand must contain at least 98.5% silicon dioxide to be called quartz sand. Therefore, from the crushing and fine screening of the raw material ore to the subsequent precision control and processing, every link needs to be refined, and any slight negligence may have an irreversible impact on the quality of the final high purity quartz.
Choosing the right screening equipment is crucial to the classification of quartz sand. Common screening equipment includes Gyratory sifter Machine. adjusting the holes size of the screen mesh to obtain quartz sand of different particle sizes. This process is designed to remove unnecessary particles, thereby achieving more effective purification.
Quartz Sand Specification:
0.5-1mm, 1-2mm，2-4mm，8mesh-16mm，16mesh-32mm，10mesh-20mesh，20mesh-40mesh，40mesh-80mesh，80mesh-120mesh，100mesh-200mesh，200mesh，325mesh.
Quartz Sand Screening Skills:
1. Choose the suitable size of the sieve hole: According to production requirements, choose screen mesh of different specifications for screening to obtain the required quartz sand particle size.
2. During operation, the vibration amplitude and frequency of the Gyratory Sifter machine should be controlled to keep the screening process smooth. and also extend the service life of the screen mesh.
3. Pay attention to the cleaning and maintenance of the screen mesh: Cleaning and maintaining the screen mesh can extend its service life and ensure the screening effect during the screening process.
4. Perform quality inspection: After screening, quality inspection must be carried out to ensure that the quality of the quartz sand meets the requirements.
Gyratory Sifter Machine Parameter
| Model | Screen Size (m) | Number of Screen Layer | Power (kw) | Screen Inclination (°) | Turn Frequency |
| FYBS1236 | 1.2m W x 3.6m L | 1-10layer | 4 | 5 | 260-300 |
| FYBS1536 | 1.5m W x 3.6m L | 1-10layer | 4.5 | 5 | 260-300 |
| FYBS2036 | 2.0m W x 3.6m L | 1-10layer | 7.5 | 5 | 260-300 |
| 2FYBS1536 | 1.5m W x 3.6m L | 1-10layer | 5.5-7.5 | 5 | 260-300 |
| 2FYBS2036 | 2.0m W x 3.6m L | 1-10layer | 7.5-11 | 5 | 260-300 |
| 4FYBS2036 | 2.0m W x 3.6m L | 1-10layer | 7.5-11 | 5 | 260-300 |
PS: HUATAO also provide other series fine sieving machine ( Vibro separator, Tumbler Screen,etc) to meet different material, capactiy requirement.
Gyratory Sifter Application:
