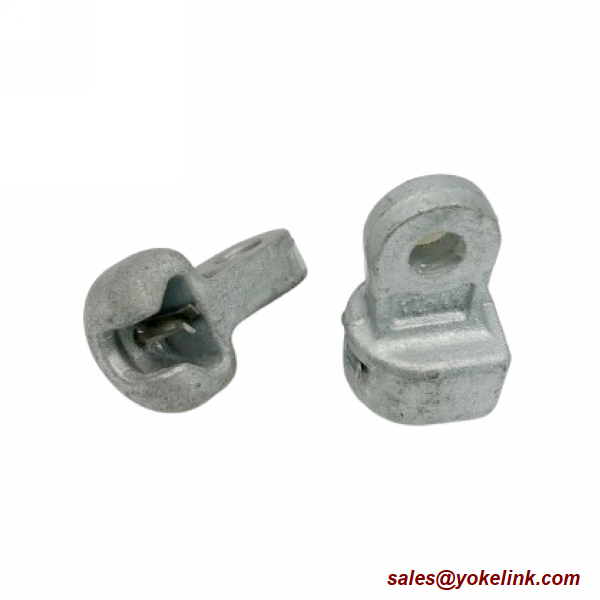

Hot Dip Galvanized Malleable Iron Socket Eye
9 month ago
● SCOPE: This specification covers the design and construction of Tension of Tension Clamps to be used for the termination of aluminium-conductors at terminal poles and section poles.The Clamps are suitable for used in Tropical zone, with a maximum ambient temperature of approximately 40 ºC and a mean annual temperature of approximately 28 ºC with high humidity and heavy rainfall.
●STANDARD:This specification is make reference to and comply with the requirements of following standard:BS 3288:1973 - Insulator and Conductor fitting for Overhead Power Lines, BS 729 - Hot dip Galvanised.
●ELECTRICAL SYSTEM:The Clamps will be designed for use on a 3 phase ,3 wires , 33/22/11/6.6kv ,50 Hz , primary distribution system with the star-point of the source-end transformer earthed through an Earthing Resistor.
●DESIGN AND CONSTRUCTION:The Clamps are manufactured from material which is not cause chemical corrosion when in constant contact with aluminium conductor. They are have a tensile strength that the breaking strength that are not less than the breaking strength of the conductors to be connected.The Clamps are properly designed such that will not cause any unnecessary strain and abrasion on the surface of conductors.
Specification:
When you need Cast ductile iron Sidewalk Guy Fitting, refer to above our catalog. We offer them in a full selection of sizes, provide the diameter or part number to get a quote on these Cast ductile iron Sidewalk Guy fitting, leave your message, or send us an email. You can also call us to get answers to your questions and place your order.
