water tank truck
10 month ago
Kaili Special Automobile Co., Ltd
11 month
Product details

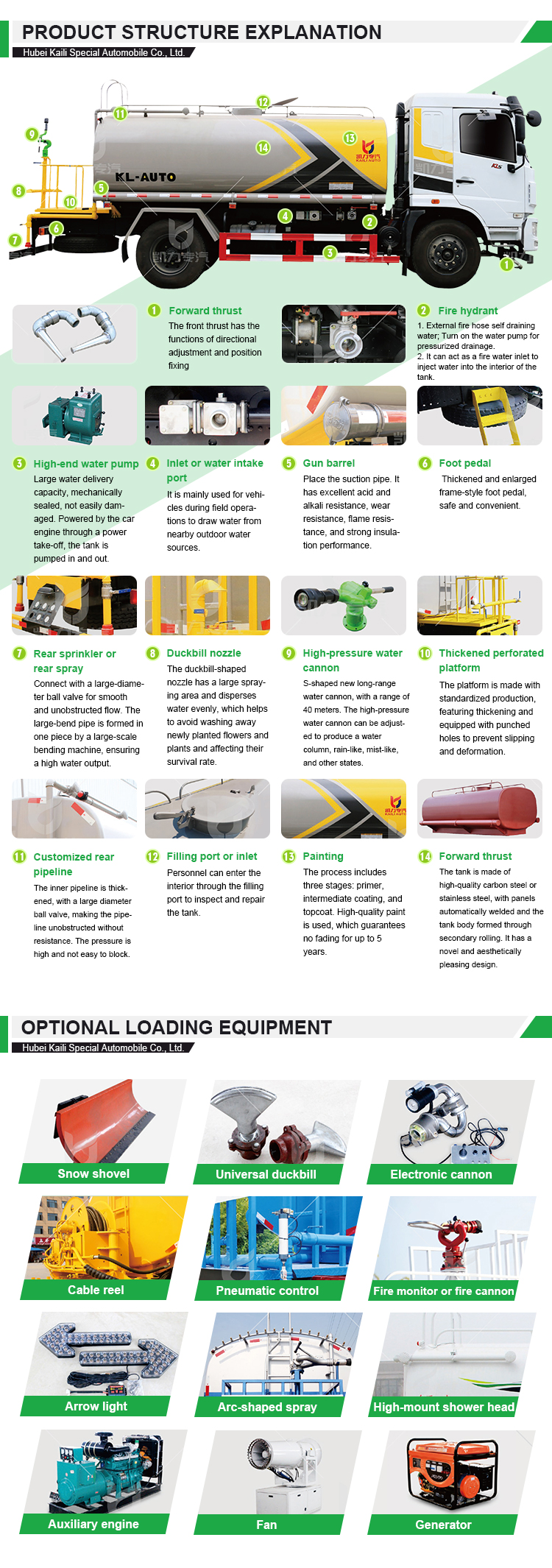

Our company's square tank dust suppression vehicle comes standard with a front facing, rear facing, side facing, and rear facing work platform. The platform is equipped with a high-pressure water cannon (which can rotate 360 ° and be adjusted to a column shape with a maximum range of 35 meters or a fog shape with a maximum range of 15 meters), which can be adjusted to direct, heavy, moderate, light, or drizzle. It is also equipped with a high-quality high-power dedicated sprinkler pump, power take-off, debris filter, and a national standard universal 65 type fire interface (which can be filled with water through a fire hydrant), as well as 2 pieces
Water diversion steel wire rubber hose. The water pump, power take-off, ball valve, and filter are all national standard products. The main pipeline is thickened, and the flange gasket and flange plate are thickened. The ball valve has a long forward thrust and a large diameter. It has excellent performance, reliable operation, high efficiency, and large flow rate. The tail fog cannon can effectively suppress haze and dust.
FEATURES
FEATURES
● Fully configured, reliable, and efficient
The whole vehicle is composed of tank body, high-powered vehicle special beverage pump, power takeoff, ball valve, filter screen, water delivery pipeline, spray machine, beverage device and other parts. The water pump, power take-off, ball valve, and filter are all national standard products with excellent performance, reliable operation, high efficiency, large flow rate, and easy maintenance
● Safe, intelligent, aesthetically pleasing design
The tank body is produced using an automatic assembly line, which includes advanced domestic production processes such as cutting, automatic welding of spliced plates, head spinning forming, and one-time rolling forming of the tank body. The water tower with an elliptical or square shaped tank body has a novel and aesthetically pleasing overall design.
● Fully functional, practical, and user-friendly
There is a pressure gauge on the pipeline, making it convenient for operators to monitor the operation of the pump at any time. There is a water level gauge at the tail of the tank, which can check the water level at any time. The tail of the tank has an operating platform with protective barriers and ladders, which can ensure the safety of operators and observe the situation inside the tank. Advanced equipment such as medication trays, medication pumps, high-pressure spraying equipment, non vehicle pump power, multi-directional inlet and outlet water joints, pneumatic valves, and warning lights can be installed to meet different needs.
● Rich in functions and easy to operate
The fog cannon trucks produced by our company are also equipped with sprinkler pumps, which can achieve green spraying function and low-pressure fire sprinkler function in emergency situations. At the same time, the spray can also be used as a pesticide spraying device to achieve multiple functions in one vehicle. The spray is loaded with a high-performance remote spray, which has a long range, wide coverage, high efficiency and fast dust removal speed. All sprinkler system valves can be equipped with pneumatic control, and the pneumatic switch is integrated into the cab for operation. Saved labor costs and reduced the labor intensity of operators.
● High quality products, practical and user-friendly
The vehicle has a compact structure, reasonable layout, fine workmanship of components, complete product configuration, and good operational performance. It adopts an elliptical or square circular water tank structure, with a measuring tube at the tail of the tank, making the water level in the tank clear at a glance. There is an operating platform at the tail of the tank, which is equipped with a safety barrier to ensure the safety of operators. There is a ladder on the platform for operators to get on and off and observe the inside of the tank.
| Item | Specification | Remarks |
|---|---|---|
| Vehicle Model | KLF5250TDYX6 | |
| Wheelbase (mm) | 4300+1350 | |
| Engine Model | WP7.270E61 | National VI emission standard, diesel engine |
| Engine Power (kW) | 199 | |
| Dimensions | 10500× 2550, 2500 × 3600 (mm) | Length x Width x Height |
| Unladen Mass (kg) | 14500 | |
| Maximum Gross Mass (kg) | 25000 | |
| Working Speed (km/h) | Engine speed 1500r/min | Operation at idle in neutral gear |
| Effective Tank Volume (m³) | 17 | |
| Tank Material | WISCO high-quality carbon steel (4MM thick) | |
| Front Sprinkler Width | 15-30M | |
| Rear Platform Sprinkler Cannon | Dust suppression 30-35, cannon adjustable 360 degrees | |
| Dedicated Sprinkler Pump | High-power pump, vertical suction lift 6M | |
| Standard Functional Configuration | Universal front sprinkler, rear sprinkler, side sprayer, sprinkler cannon, fire hydrant interface |
