X60 ERW STEEL PIPE
2 year ago
API 5L X60 ERW steel pipe is a type of welded steel pipe that is commonly used in the oil and gas industry. It is made from high-quality carbon steel and is designed to withstand high pressure and extreme temperatures.
1. API 5L PSL1/PSL2 X60 ERW steel pipe Testing and Inspection Reports: EN 10204 3.1, PMI Test Reports, Visual Inspection Reports, Third Party Inspection Reports, Destructive Test Report, Non Destructive Test Reports, Mill TC EN 10204 3.1, NABL Approved Lab, Chemical and Mechanical Reports, India Boiler Regulations (IBR) Test Certificate
2. Packing: API 5L X60 ERW Steel Pipe Packed in Wooden Boxes, Plastic Bags, Steel Strips Bundled, or as per Customers Requests3. Finishes: Bare, Oiled, Mill Varnish, Galvanized, FBE, FBE Dual, 3LPE, 3LPP, Coal Tar, Concrete Coating and Tape Wrap.End Finishes:Beveled, Square Cut, Threaded & Coupled.
4. Application & uses: Suitable for Conveying gas, water, oil, and other liquefied media.
Value added service
5. Delivery condition:
PSL1: As-rolled, normalizing rolled, thermomechanical rolled, thermo-mechanical formed, normalizing formed, normalized, normalized and tempered; PSL2 :Normalizing rolled, normalizing formed, normalized or normalized and tempered (suffix letter N, Q, M, eg API 5L X60Q/M/N (Where sour services is described as API 5L X60QS/MS)
API 5L X60 ERW steel pipe is a common high grade pipe material in API 5L specifications for oil and gas transmissions. It’s also called L415 pipe, which named by yield strength minimum in 415 Mpa (60,200 psi). Is welded in ERW, EFW, HFW.
API 5L X60 ERW steel pipe ranges in PSL1, PSL2, onshore/offshore, and sour service.
PSL1 is for common use material delivery conditions R As Rolled.
PSL2 is strict and higher than PSL1 on chemicals, mechanical properties and test requirements
Technical Flows：
Steel-making in Converter → Refine → Continuous Casting → Hot Rolling → Uncoiling → Accumulator → Cross Welding → Strip End Shear → Strip Leveling → Edge Milling →Strip UT → Forming → Electric Resistance Welding → Sizing → Air Cooling+ Water Cooling → Online Weld Seam Heat Treatment → Online Weld SEAM UT → Beveling → Hydro-static Testing → Weld Seam UT → Pipe UT → Appearance and Dimension Check → Coating → Marking → Length-measuring and weighing → Packing → Transportation
CHEMICAL COMPERSITION OF API 5L PSL1 /PSL2 X60 ERW STEEL PIPE
|
Standard |
Class |
Grade |
Chemical Analysis(%) |
Mechanical Prop |
||||
|
C |
Mn |
P |
S |
Tensile Strength (Mpa) |
Yield Strength (Mpa) |
|||
|
API 5L |
PSL1 |
B |
0.26 |
1.20 |
0.030 |
0.030 |
≥415 |
≥245 |
|
X42 |
0.26 |
1.30 |
0.030 |
0.030 |
≥415 |
≥290 |
||
|
X46 |
0.26 |
1.40 |
0.030 |
0.030 |
≥435 |
≥320 |
||
|
X52 |
0.26 |
1.40 |
0.030 |
0.030 |
≥460 |
≥360 |
||
|
X56 |
0.26 |
1.40 |
0.030 |
0.030 |
≥490 |
≥390 |
||
|
X60 |
0.26 |
1.40 |
0.030 |
0.030 |
≥520 |
≥415 |
||
|
X65 |
0.26 |
1.45 |
0.030 |
0.030 |
≥535 |
≥450 |
||
|
X70 |
0.26 |
1.65 |
0.030 |
0.030 |
≥570 |
≥485 |
||
|
PSL2 |
B |
0.22 |
1.20 |
0.025 |
0.015 |
415-655 |
245-450 |
|
|
X42 |
0.22 |
1.30 |
0.025 |
0.015 |
415-655 |
290-495 |
||
|
X46 |
0.22 |
1.40 |
0.025 |
0.015 |
435-655 |
320-525 |
||
|
X52 |
0.22 |
1.40 |
0.025 |
0.015 |
460-760 |
360-530 |
||
|
X56 |
0.22 |
1.40 |
0.025 |
0.015 |
490-760 |
390-545 |
||
|
X60 |
0.22 |
1.40 |
0.025 |
0.015 |
520-760 |
415-565 |
||
|
X65 |
0.22 |
1.45 |
0.025 |
0.015 |
535-760 |
450-600 |
||
|
X70 |
0.22 |
1.65 |
0.025 |
0.015 |
570-760 |
485-635 |
||
|
X80 |
0.22 |
1.85 |
0.025 |
0.015 |
625-825 |
555-705 |
||

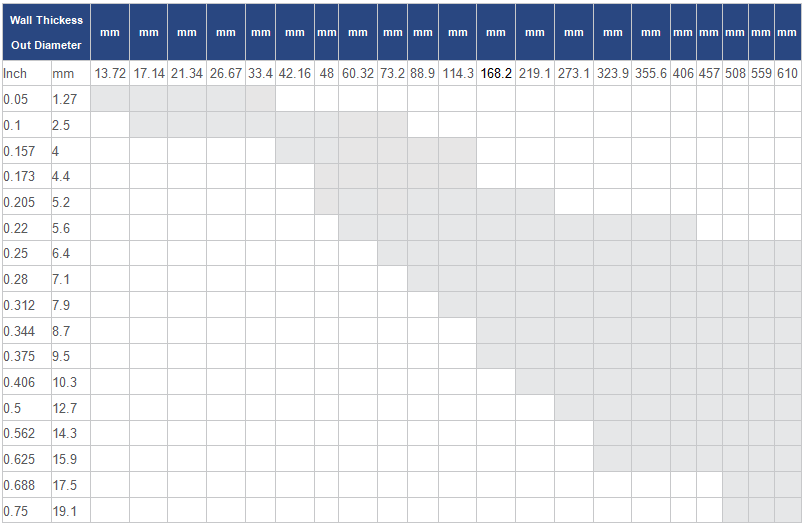

Dimension:
